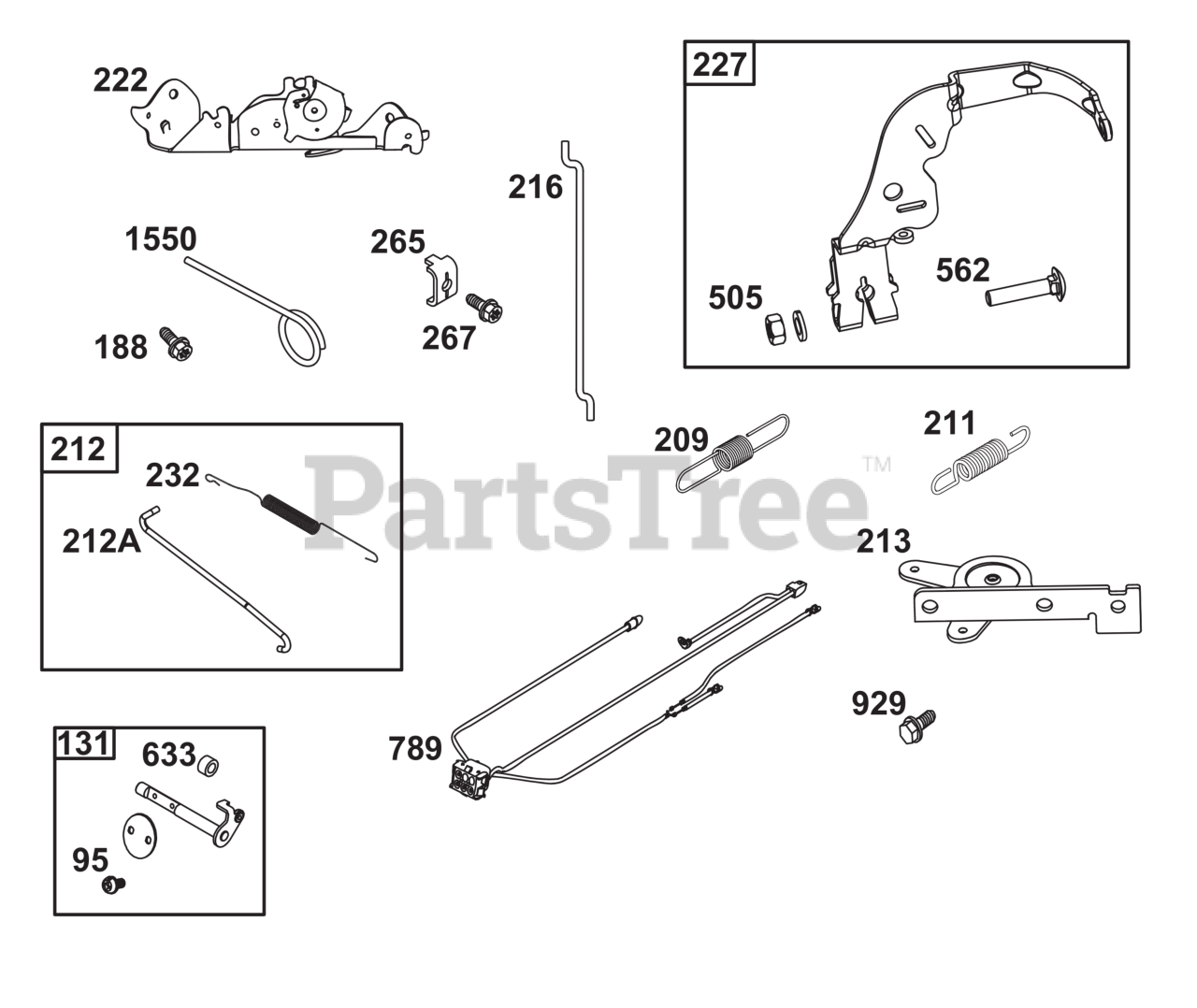

40N777-0034-B5 - Briggs & Stratton Vertical Engine Controls Group Parts Diagram

Vertical Engine

Controls Group Parts Diagram

  • Title

95

SCREW

Note: (Throttle Valve) (Part Information Located In Carburetor Group) Used Before Code Date 18120100

$

$

Not available

131

KIT, Throttle Shaft

Note: (Part Information Located In Carburetor Group) Used Before Code Date 18120100

$

$

Not available

188

Briggs & Stratton 691108

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

209

Briggs & Stratton 799168

SPRING, Governor

$10.99

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 593724

SPRING, Governed Idle

$4.99

$

In Stock, only 3 left!

0

212

Briggs & Stratton 597778

LINK, Throttle

$9.49

$

In Stock, only 4 left!

0

212A

Briggs & Stratton 84001913

LINK, Throttle

$8.49

$

Usually ships in 2-12 days

0

213

Briggs & Stratton 691021

BRACKET, Choke Control

$11.99

$

In Stock, only 3 left!

0

216

Briggs & Stratton 691022

LINK, Choke

$8.99

$

In Stock, Qty 7

0

222

Briggs & Stratton 798916

BRACKET, Control

$41.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 593857

LEVER, Governor Control

$43.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 597550

SPRING, Governor Link

$10.99

$

In Stock, only 2 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 10

0

267

Briggs & Stratton 792629

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 1 left!

0

505

Briggs & Stratton 691029

NUT

Note: (Governor Control Lever)

$5.99

$

In Stock, only 1 left!

0

562

Briggs & Stratton 690311

BOLT

Note: (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

633

SEAL, Choke/Throttle Shaft

Note: (Part Information Located In Carburetor Group) Used Before Code Date 18120100

$

$

Not available

789

Briggs & Stratton 591392

HARNESS, Wiring

$39.99

$

In Stock, Qty 8

0

929

Briggs & Stratton 695239

SCREW

Note: (Choke Control Bracket)

$3.99

$

In Stock, only 2 left!

0

1550

Briggs & Stratton 595801

PIN, Speed Setting

$5.99

$

Usually ships in 2-12 days

0
