40N877-0088-G1 - Briggs & Stratton Vertical Engine Carburetor Group Parts Diagram

Vertical Engine

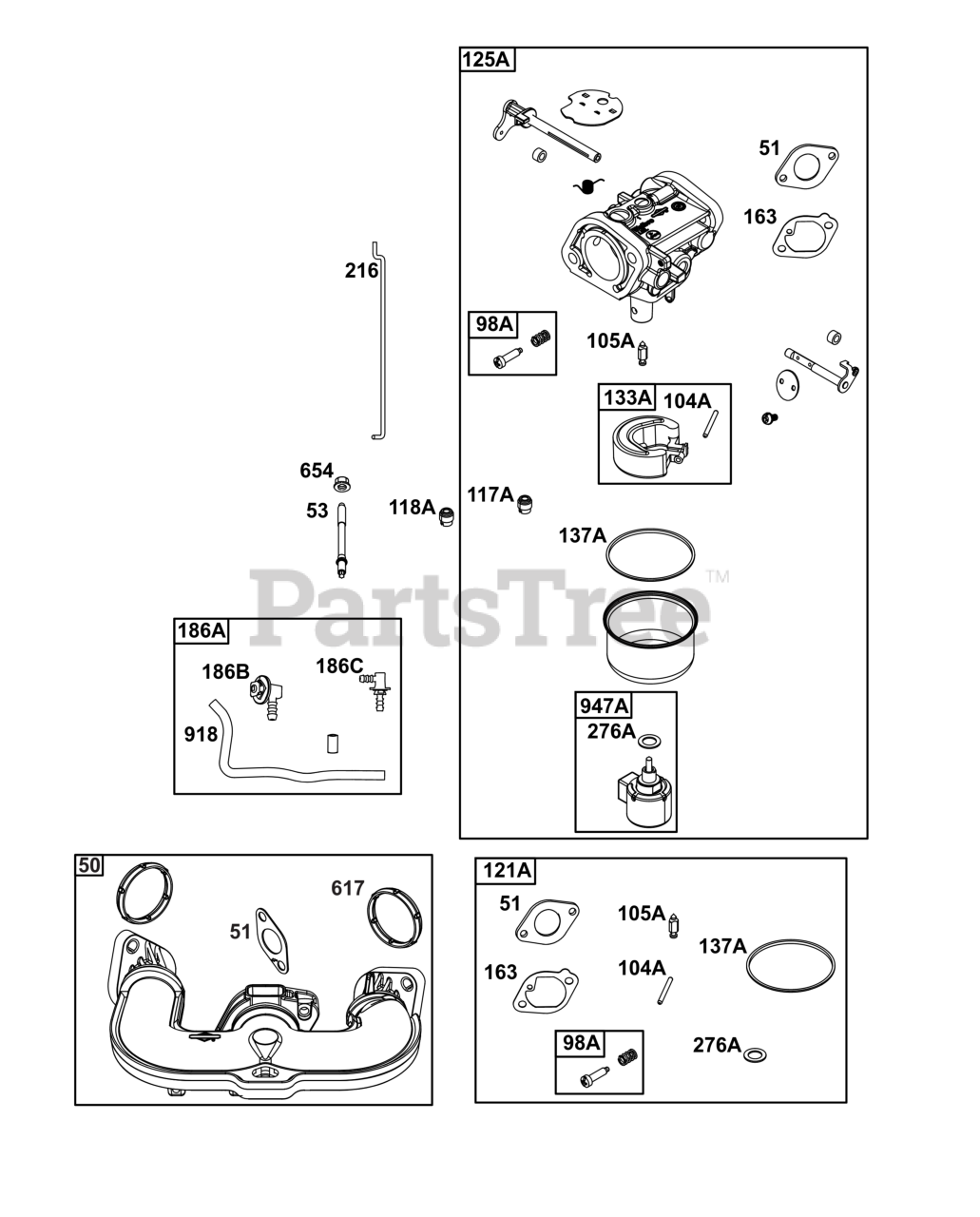

Carburetor Group Parts Diagram

  • Title

50

MANIFOLD, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 690951

STUD

Note: (Carburetor)

$7.49

$

In Stock, only 2 left!

0

98A

Briggs & Stratton 84006525

KIT, Idle Speed

$

$

Currently unavailable

104A

Briggs & Stratton 690525

PIN, Float Hinge

$5.49

$

In Stock, only 1 left!

0

105A

Briggs & Stratton 84006524

VALVE, Float Needle

$

$

Currently unavailable

117A

Briggs & Stratton 84006536

JET, Main

Note: (Standard)

$

$

Currently unavailable

118A

Briggs & Stratton 84006537

JET, Main

Note: (High Altitude)

$

$

Currently unavailable

121A

Briggs & Stratton 84006526

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$

$

Currently unavailable

125A

Briggs & Stratton 84006527

CARBURETOR

$160.99

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 494381

FLOAT, Carburetor

$15.99

$

In Stock, Qty 11

0

137A

Briggs & Stratton 281165S

GASKET, Float Bowl

$4.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 594203

GASKET, Intake

$4.99

$

In Stock, Qty 10

0

186A

Briggs & Stratton 799158

CONNECTOR, Hose

$11.99

$

In Stock, only 2 left!

0

186B

Briggs & Stratton 845141

CONNECTOR, Hose

$11.99

$

In Stock, only 2 left!

0

186C

Briggs & Stratton 594428

CONNECTOR, Hose

$4.99

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 796229

LINK, Choke

$9.99

$

In Stock, only 2 left!

0

276A

Briggs & Stratton 692255

WASHER, Sealing

$5.99

$

In Stock, Qty 20+

0

617

SEAL, O-Ring

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

654

Briggs & Stratton 690958

NUT

Note: (Carburetor)

$3.49

$

In Stock, Qty 8

0

918

HOSE, Vacuum

Note: (Part information located in Fuel Supply Group.)

$

$

Not available

947A

Briggs & Stratton 84006867

SOLENOID, Fuel

$170.99

$

Usually ships in 2-12 days

0
