41-20OE01 (520-H) - Toro Garden Tractor (1990) DRIVE BELT AND PULLEYS Parts Diagram

Garden Tractor

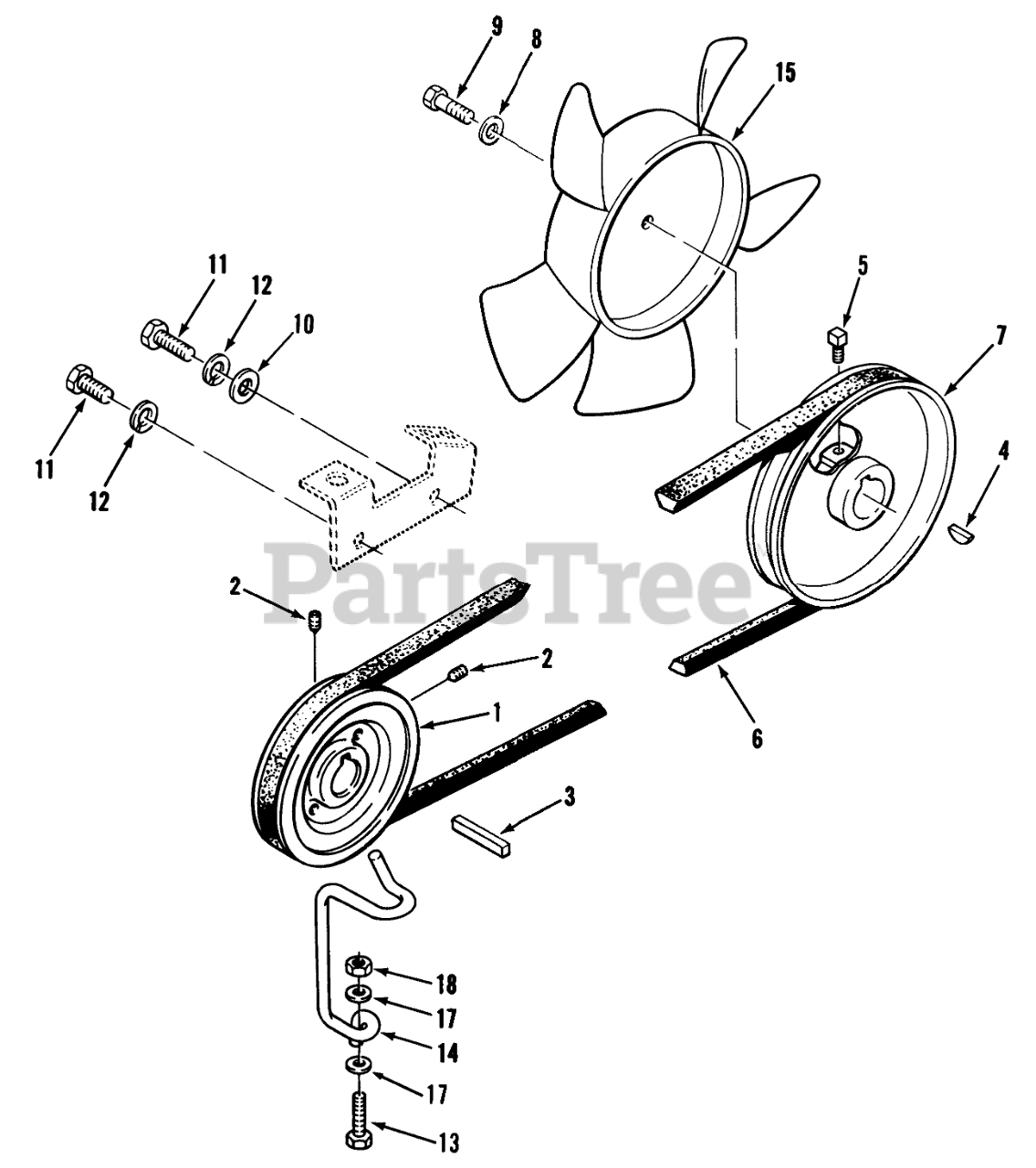

DRIVE BELT AND PULLEYS Parts Diagram

  • Title

1

Toro 7466

PULLEY

$184.99

$

Usually ships in 3-6 days

0

Toro 7443

PULLEY

$

$

Not available

2

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

3

Toro 105453

Key

$1.99

$

In Stock, only 2 left!

0

4

Toro 937221

KEY-HI PRO
(Superseded to 3257-17)

$5.49

$

In Stock, Qty 9

0

Toro 937089

KEY-WOODRUFF

$1.99

$

In Stock, Qty 5

0

5

Toro 909540

Set Screw
(Superseded to 3242-2)

$1.99

$

In Stock, Qty 5

0

6

Toro 114895

BELT-V

$61.99

$

In Stock, only 1 left!

0

Toro 107939

Belt-Drive
(Superseded to 93-9809)

$61.99

$

Usually ships in 3-6 days

0

7

Toro 108316

PULLEY

$

$

Not available

Toro 106165

PULLEY-TRANSMISSION

$131.99

$

Usually ships in 3-6 days

0

8

Toro 103995

WASHER

$9.49

$

In Stock, only 4 left!

0

9

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, only 4 left!

0

10

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

11

Toro 908047

7/16-14 x 1 1/4 Bolt
(Superseded to 324-5)

$0.99

$

Usually ships in 3-6 days

0

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

12

Toro 920084

LOCKWASHER

$0.99

$

Usually ships in 3-6 days

0

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

13

Toro 920020

Bolt 5/16-18 x 1-1/4

$

$

Currently unavailable

14

Toro 120320

GUIDE-BELT BOTTOM

$

$

Not available

15

Toro 108393

NYLON FAN-L-CW

$35.99

$

In Stock, only 3 left!

0

17

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

18

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0
