41-20OE01 (520-H) - Toro Garden Tractor (1990) Sheet Metal And Covers 2 Parts Diagram

Garden Tractor

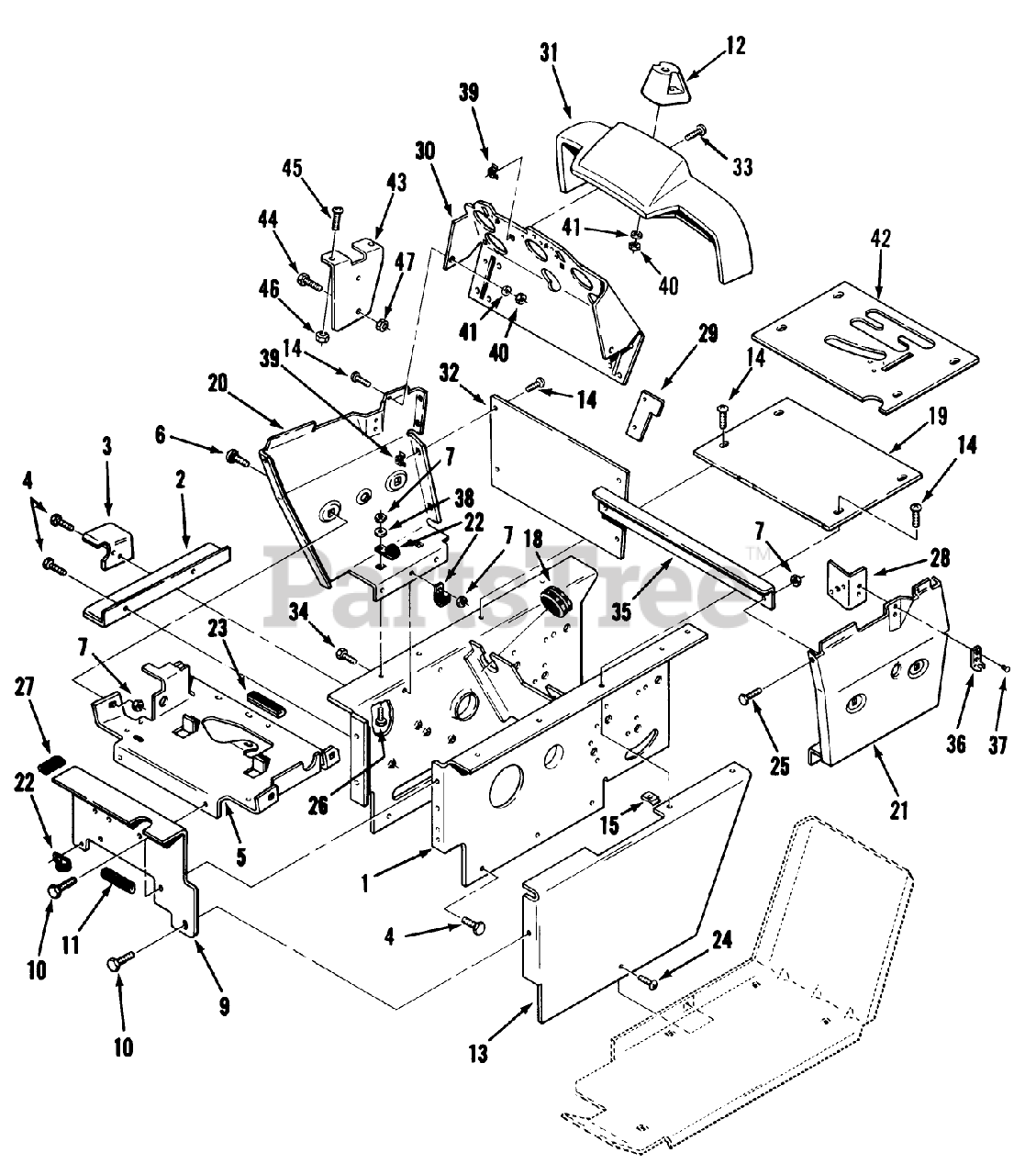

Sheet Metal And Covers 2 Parts Diagram

  • Title

1

Toro 116327

DISCONTINUED
(Superseded to 79-5120-03)

$

$

Not available

2

Toro 114871

ANGLE-BELT GUARD *B

$

$

Not available

3

Toro 106261

See Supercession: 88-2170-03
(Superseded to 88-2170-03)

$

$

Not available

4

Toro 926694

SCREW

$

$

Not available

5

Toro 116309

WLD-SUPPORT*B

$

$

Not available

Toro 116308

DISCONTINUED

$

$

Not available

6

Toro 900037

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

7

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

9

Toro 113938

DISCONTINUED

$

$

Not available

10

Toro 926694

SCREW

$

$

Not available

11

Toro 106454

DISCONTINUED

$

$

Not available

12

Toro 118410

COVER-STEERING SHAFT

$

$

Not available

Toro 118400

DISCONTINUED

$

$

Not available

13

Toro 116297

COVER-L.H. *R

$

$

Not available

Toro 113935

See Supercession: 113935-01
(Superseded to 113935-01)

$89.99

$

Usually ships in 3-6 days

0

14

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

15

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

18

Toro 104248

GROMMET

$14.99

$

Usually ships in 3-6 days

0

19

Toro 113928

See Supercession: 92-7295
(Superseded to 92-7295)

$

$

Not available

20

Toro 113962

See Supercession: 113962-03
(Superseded to 113962-03)

$

$

Not available

21

Toro 114432

See Supercession: 79-4890-03
(Superseded to 79-4890-03)

$

$

Not available

22

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

23

Toro 110142

DISCONTINUED

$

$

Not available

24

Toro 910837

See Supercession: 9108372
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

25

Toro 908015

See Supercession: 322-1
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

26

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

27

Toro 102896

DISCONTINUED

$

$

Not available

28

Toro 114628

BRACKET-SWITCH SU

$

$

Not available

29

Toro 114641

STOP-CHOKE

$

$

Not available

30

Toro 116607

DISCONTINUED

$

$

Not available

Toro 117267

See Supercession: 117267-03
(Superseded to 117267-03)

$

$

Not available

31

Toro 121356

DISCONTINUED

$

$

Not available

Toro 121357

DISCONTINUED XREF

$

$

Not available

32

Toro 113939

DISCONTINUED

$

$

Not available

Toro 116862

See Supercession: 92-7294
(Superseded to 92-7294)

$

$

Not available

33

Toro 910839

See Supercession: 9108392
(Superseded to 9108392)

$

$

Not available

34

Toro 908016

See Supercession: 322-2
(Superseded to 322-2)

$2.99

$

In Stock, only 4 left!

0

35

Toro 113932

STIFFENER-PANEL

$

$

Not available

36

Toro 117343

KEEPER-LATCH

$5.49

$

In Stock, only 2 left!

0

37

Toro 923786

RIVET
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 7

0

Toro 117433

RIVET-POP

$

$

Not available

38

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

39

Toro 114207

See Supercession: 32115-5
(Superseded to 32115-5)

$7.99

$

Usually ships in 3-6 days

0

40

Toro 915661

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

41

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0

42

Toro 111386

See Supercession: 92-6529
(Superseded to 92-6529)

$

$

Not available

43

Toro 117191

See Supercession: 117191-03
(Superseded to 117191-03)

$

$

Not available

44

Toro 910794

BOLT

$

$

Not available

45

Toro 908002

See Supercession: 321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

46

Toro 915740

See Supercession: 3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 13

0

47

Toro 915661

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0
