41-20OE02 (520-H) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) Engine Cylinder Block Parts Diagram

Garden Tractor

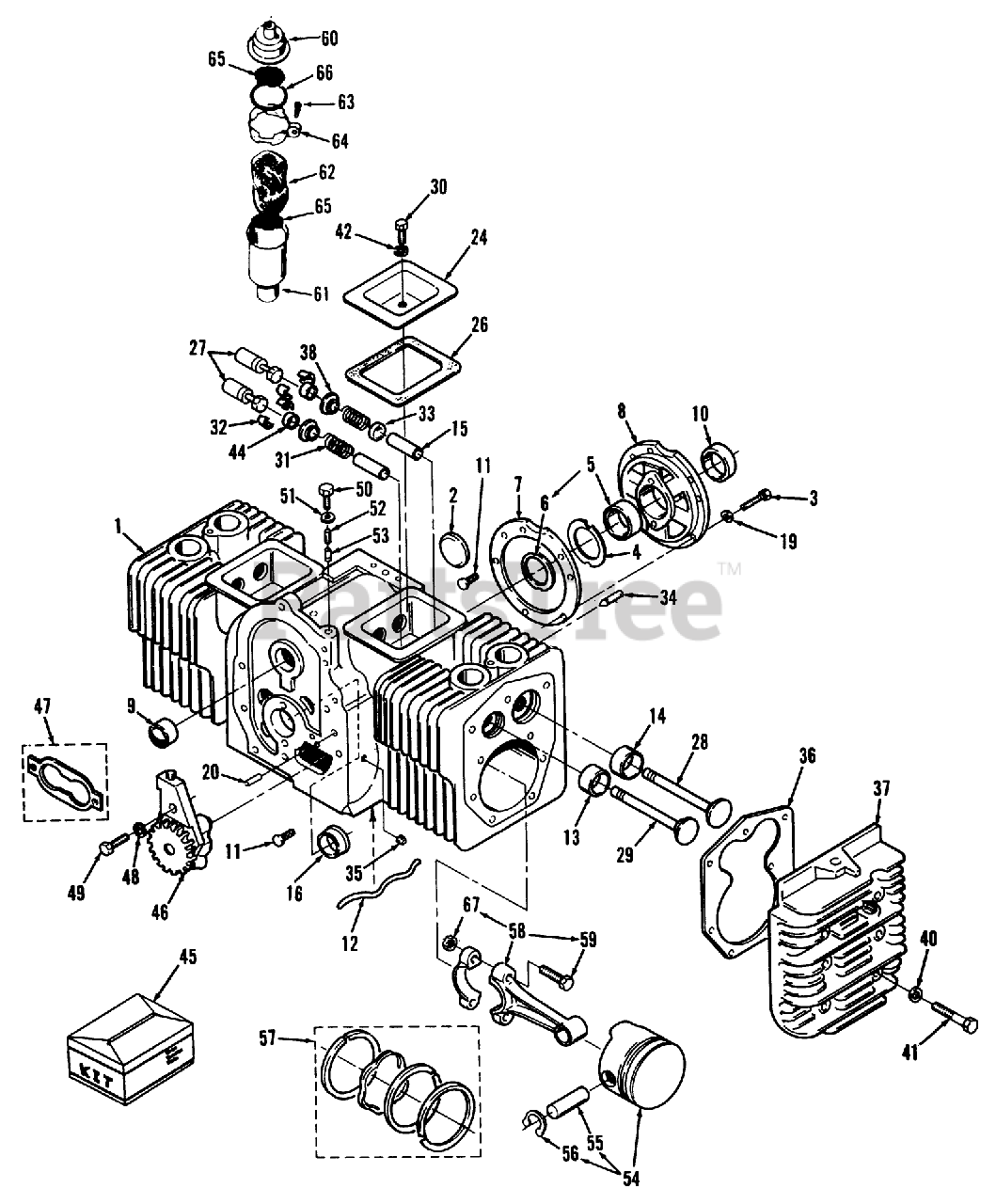

Engine Cylinder Block Parts Diagram

  • Title

1

Toro NN10851

DISCONTINUED
(Superseded to 92-0900)

$

$

Not available

2

Toro NN10536

See Supercession: 57-9690
(Superseded to 57-9690)

$18.99

$

Usually ships in 3-6 days

0

3

Toro 82-1450

See Supercession: 71-6240
(Superseded to 71-6240)

$

$

Not available

4

Toro 57-8170

SHIM

$

$

Not available

5

Bearing, Crankshaft-Rear (Includes Thrust Washer)

$

$

Not available

Toro NN-10001

Standard

$

$

Currently unavailable

Toro 59-6020

Guard

$

$

Currently unavailable

Toro 57-8060

DISCONTINUED

$

$

Not available

Toro 59-0030

DISCONTINUED

$

$

Not available

Toro 59-0040

BEARING-CRANKSHAFT (.030)

$

$

Not available

6

Toro NN10476

See Supercession: 57-8160
(Superseded to 57-8160)

$

$

Not available

7

Toro 57-8010

GASKET

$32.99

$

In Stock, only 2 left!

0

8

Toro 57-8040

See Supercession: 82-0020
(Superseded to 82-0020)

$

$

Not available

9

Toro NN-10001

Standard

$

$

Currently unavailable

10

Toro 57-9590

SEAL

$94.99

$

In Stock, only 1 left!

0

11

Toro 59-0730

PIN-DRIVE

$

$

Not available

12

Toro NN10139

DISCONTINUED
(Superseded to 59-0290)

$

$

Not available

13

Insert, Valve Seat-Exhaust

$

$

Not available

Toro 79-6180

See Supercession: 59-0100
(Superseded to 59-0100)

$

$

Not available

Toro 79-6190

DISCONTINUED

$

$

Not available

Toro 79-6200

See Supercession: 59-0120
(Superseded to 59-0120)

$

$

Not available

Toro 79-6210

DISCONTINUED
(Superseded to 59-0130)

$

$

Not available

Toro 79-6220

DISCONTINUED

$

$

Not available

14

INSERT, VALVE SEAT-INTAKE

$

$

Not available

Toro 79-6230

SEAT-INT VALVE (STD)

$85.99

$

Usually ships in 3-6 days

0

Toro 79-6240

DISCONTINUED

$

$

Not available

Toro 79-6250

DISCONTINUED

$

$

Not available

Toro 79-6260

DISCONTINUED

$

$

Not available

Toro 79-6270

DISCONTINUED

$

$

Not available

15

Toro NN10084

See Supercession: 71-6250
(Superseded to 71-6250)

$

$

Not available

Toro NN10479

See Supercession: 71-6250
(Superseded to 71-6250)

$

$

Not available

16

Bearing, Crankshaft-Front (Flanged)

$

$

Not available

Toro 57-8020

See Supercession: 57-8030
(Superseded to 57-8030)

$

$

Not available

Toro 57-9360

DISCONTINUED

$

$

Not available

Toro 57-8030

BEARING KIT (.010)

$

$

Not available

Toro 57-0010

.020" Undersize

$

$

Currently unavailable

Toro 57-0040

.030" Undersize

$

$

Currently unavailable

19

Toro 82-1640

See Supercession: 3253-5
(Superseded to 325-35)

$12.99

$

Usually ships in 3-6 days

0

Toro 82-1310

WASHER-FLAT

$

$

Not available

20

Toro 59-0750

PIN-GEAR COVER

$

$

Not available

24

Toro NN10821

VALVE-COVER L.H.

$

$

Not available

26

Toro 57-8280

GASKET

$27.99

$

In Stock, only 1 left!

0

27

Tappet, Valve

$

$

Not available

Toro 57-8450

DISCONTINUED

$

$

Not available

Toro 59-0260

DISCONTINUED

$

$

Not available

Toro 59-0270

DISCONTINUED
(Superseded to 59-0260)

$

$

Not available

28

Toro NN10075

DISCONTINUED
(Superseded to 71-5770)

$

$

Not available

29

Toro NN10076

See Supercession: 71-5780
(Superseded to 71-5780)

$

$

Not available

30

Toro NN10370

DISCONTINUED

$

$

Not available

31

Toro NN10077

See Supercession: 71-5790
(Superseded to 71-5790)

$

$

Not available

32

Toro NN10082

DISCONTINUED

$

$

Not available

33

Toro 79-6430

See Supercession: 71-6180
(Superseded to 71-6180)

$41.99

$

Usually ships in 3-6 days

0

34

Toro NN10385

See Supercession: 3247-4
(Superseded to 3247-4)

$6.49

$

Usually ships in 3-6 days

0

35

Toro NN10307

See Supercession: 700412
(Superseded to 700412)

$

$

Not available

36

Toro NN10070

See Supercession: 57-8330
(Superseded to 57-8330)

$

$

Not available

37

Toro 79-6280

DISCONTINUED

$

$

Not available

Toro NN10080

See Supercession: 59-0180
(Superseded to 59-0180)

$

$

Not available

Toro NN10090

See Supercession: 92-0902
(Superseded to 92-0902)

$

$

Not available

38

Toro NN10078

See Supercession: 71-5800
(Superseded to 71-5800)

$

$

Not available

40

Toro 57-9770

WASHER

$

$

Not available

41

Toro NN10381

DISCONTINUED
(Superseded to 71-6270)

$

$

Not available

42

Toro NN10359

See Supercession: 57-9740
(Superseded to 57-9740)

$

$

Not available

44

Toro 71-5830

DISCONTINUED

$

$

Not available

45

Kit, Gasket

$

$

Not available

Toro 201280

DISCONTINUED
(Superseded to 71-6290)

$

$

Not available

Toro 57-9370

DISCONTINUED

$

$

Not available

46

Toro 57-8480

DISCONTINUED

$

$

Not available

47

Toro 57-8460

DISCONTINUED

$

$

Not available

48

Toro 82-1340

WASHER-FLAT

$

$

Not available

49

Toro 82-1370

DISCONTINUED

$

$

Not available

50

Toro 59-0910

SCREW-HH

$

$

Not available

51

Toro NN10361

See Supercession: 57-9760
(Superseded to 57-9760)

$

$

Not available

52

Toro 57-8500

See Supercession: 59-0280
(Superseded to 59-0280)

$

$

Not available

53

Toro 57-8470

PLUNGER

$

$

Not available

54

Piston (Includes Pin and Retaining Rings)

$

$

Not available

Toro 57-8350

DISCONTINUED
(Superseded to 82-1800)

$

$

Not available

Toro 59-0190

DISCONTINUED

$

$

Not available

Toro 57-8360

DISCONTINUED
(Superseded to 92-0902)

$

$

Not available

Toro 57-8370

DISCONTINUED
(Superseded to 92-0903)

$

$

Not available

Toro 59-0200

DISCONTINUED
(Superseded to 92-0904)

$

$

Not available

55

Toro NN10100

DISCONTINUED
(Superseded to 71-6310)

$

$

Not available

56

Toro 57-9720

DISCONTINUED

$

$

Not available

57

Kit, Ring-Piston

$

$

Not available

Toro NN10101

DISCONTINUED
(Superseded to 57-8380)

$

$

Not available

Toro NN10102

DISCONTINUED

$

$

Not available

Toro NN10103

See Supercession: 57-8390
(Superseded to 57-8390)

$139.99

$

Usually ships in 3-6 days

0

Toro NN10104

See Supercession: 57-8400
(Superseded to 57-8400)

$

$

Not available

Toro NN10105

See Supercession: 59-0230
(Superseded to 59-0230)

$

$

Not available

58

Rod, Connecting (Includes Bolt and Nut)

$

$

Not available

Toro 57-8420

DISCONTINUED

$

$

Not available

Toro 57-8430

CONN ROD ASM

$

$

Not available

Toro 57-8440

CONN ROD ASM

$269.99

$

Usually ships in 3-6 days

0

Toro 59-0250

ROD .03 US

$

$

Not available

59

Toro 57-8410

DISCONTINUED

$

$

Not available

60

Toro 82-0550

DISCONTINUED

$

$

Not available

61

Toro 82-0540

TUBE-BREATHER

$

$

Not available

62

Toro 57-8580

FILTER

$6.99

$

Usually ships in 3-6 days

0

63

Toro 82-1480

SCREW-TAPPING, ROUND HEAD

$

$

Not available

64

Toro 82-0530

DISCONTINUED

$

$

Not available

65

Toro 82-0560

DISCONTINUED

$

$

Not available

66

Toro 82-0570

SEAL - O-RING

$16.99

$

Usually ships in 3-6 days

0

67

Toro NN10428

See Supercession: 57-9790
(Superseded to 57-9790)

$

$

Not available

Toro 59-0770

PLUG-BREATHER HOLE

$

$

Not available

Toro 59-0780

DISCONTINUED

$

$

Not available
