41-20OE02 (520-H) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) TORO POWER PLUS AIR CLEANER Parts Diagram

Garden Tractor

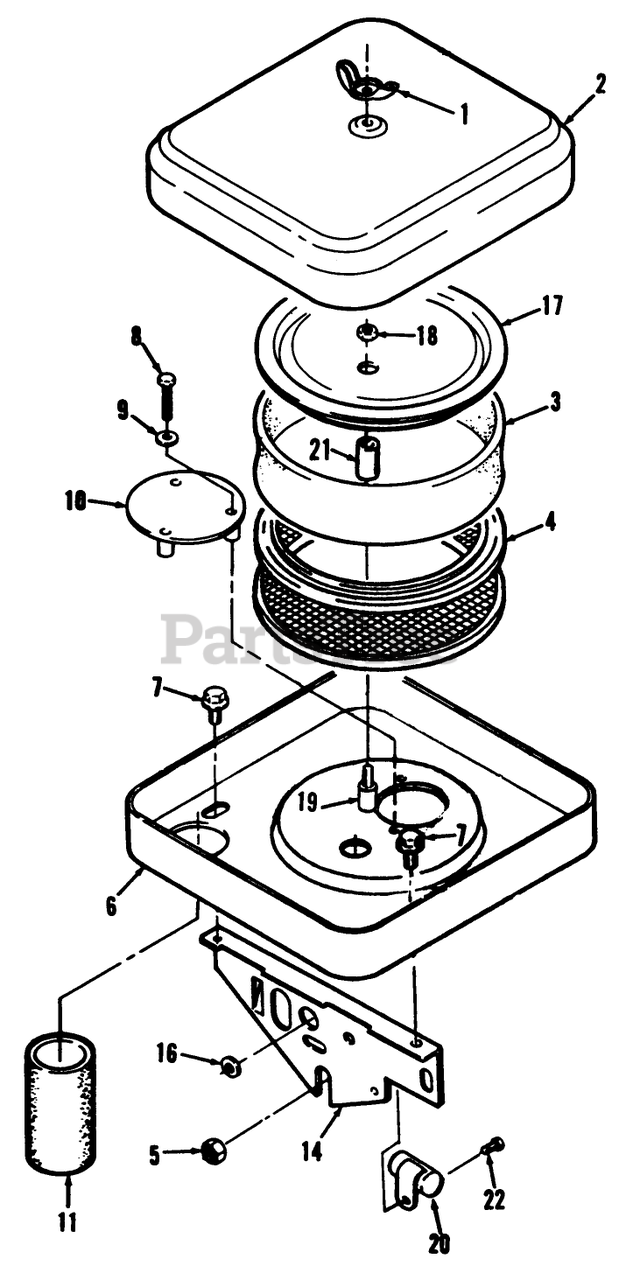

TORO POWER PLUS AIR CLEANER Parts Diagram

  • Title

1

Toro 82-1670

KNOB

$

$

Not available

2

Toro 79-6320

AIR-CLEANER COVER

$

$

Not available

3

Toro NN10176

AIR CLEANER ELEMENT

$15.99

$

In Stock, only 3 left!

0

4

Toro NN10774

AIR-CLEANER ELEMENT

$44.99

$

In Stock, Qty 6

0

5

Toro 82-1640

Washer
(Superseded to 325-35)

$10.99

$

Usually ships in 3-6 days

0

6

Toro 79-6500

Housing, Air Cleaner
(Superseded to 79-6330)

$

$

Not available

7

Toro 82-1550

SCREW-TAPPING

$

$

Not available

8

Toro NN10398

Screw Hex Hd. #10-32 x 1-1/2
(Superseded to 82-1530)

$

$

Not available

9

Toro NN10365

Flat Washer #10
(Superseded to 82-1290)

$

$

Not available

10

Toro NN10193

AIR DEFLECTOR PLATE

$

$

Not available

11

Toro 82-0700

TUBE-AIR INTAKE

$30.99

$

Usually ships in 3-6 days

0

14

Toro 79-6340

SUPPORT-AIR CLEANER

$

$

Not available

16

Toro 71-6140

GROMMET

$4.99

$

Usually ships in 3-6 days

0

17

Toro 82-0650

ELEMENT COVER KIT

$

$

Not available

18

Toro 82-1680

NUT - HEX

$

$

Not available

19

Toro 82-0989

Spacer, Air Cleaner Stud

$

$

Currently unavailable

20

Toro 59-1180

CONDENSER

$40.99

$

In Stock, only 1 left!

0

21

Toro 79-6510

SPACER-1" LG

$

$

Not available

22

Toro NN10390

SCREW #10-32 X 5/8

$

$

Not available
