41-20OE02 (520-H) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) TORO POWER PLUS BLOWER HOUSING AND GOVERNOR Parts Diagram

Garden Tractor

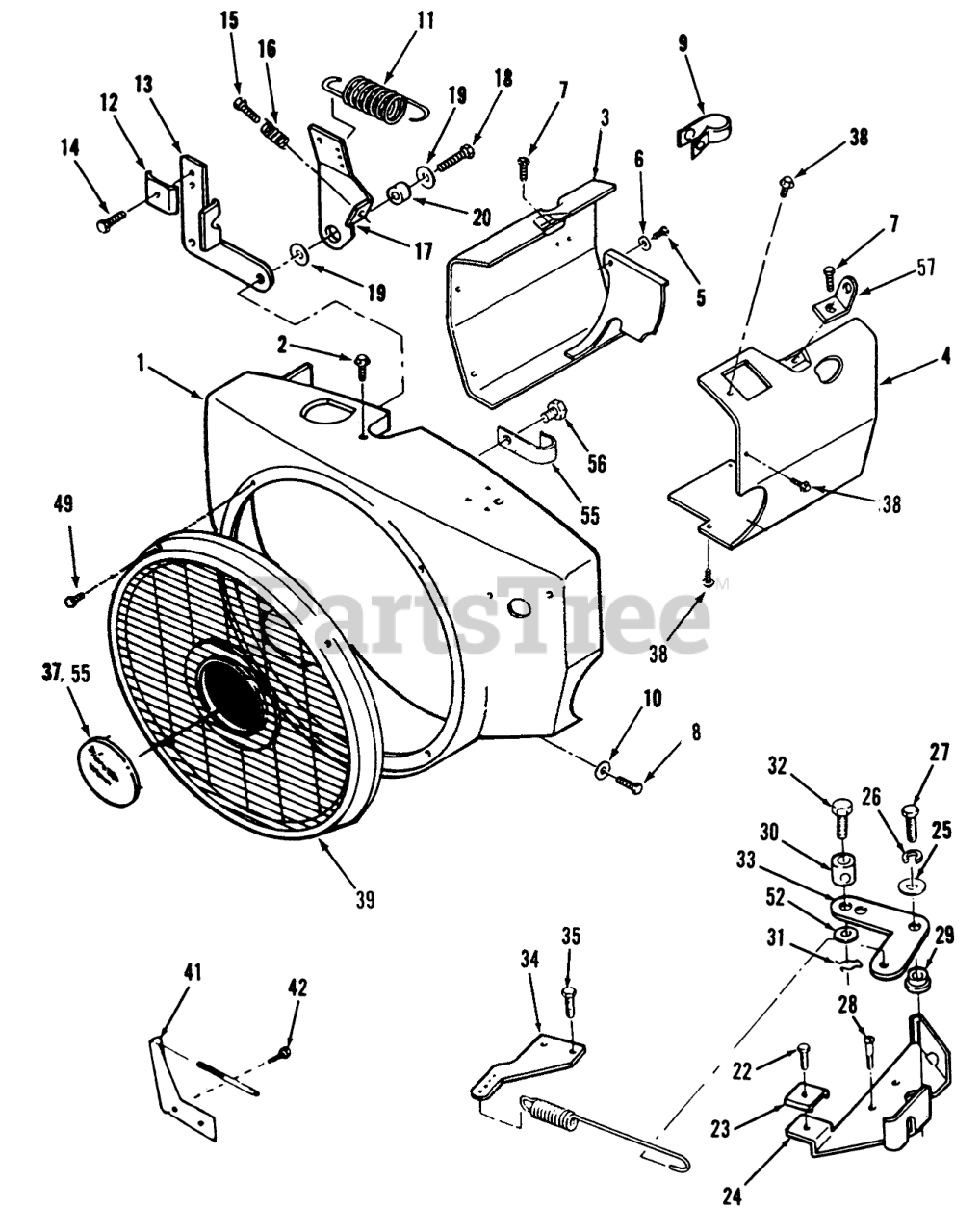

TORO POWER PLUS BLOWER HOUSING AND GOVERNOR Parts Diagram

  • Title

1

Toro NN10769

BLOWER-HOUSING

$

$

Not available

2

Toro 59-0970

HEX HD CAPSCREW

$6.49

$

Usually ships in 3-6 days

0

3

Toro NN10170

CYLINDER AIR HSG L H

$

$

Not available

4

Toro 79-6550

Housing, Cylinder Air-RH

$

$

Not available

5

Toro 59-0980

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

6

Toro 59-0830

WASHER-FLAT

$

$

Not available

7

Toro 82-1600

SCREW-HWH

$

$

Not available

8

Toro 59-0980

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

9

Toro NN10289

Clamp
(Superseded to 59-0580)

$

$

Not available

10

Toro 59-0820

WASHER-FLAT

$

$

Not available

11

Toro 57-9100

SPRING

$

$

Not available

12

Toro 57-9190

CLIP

$

$

Not available

13

Toro 79-6960

Bracket-Cable

$

$

Currently unavailable

14

Toro 72-3900

SCREW-TAPPING

$7.99

$

Usually ships in 3-6 days

0

15

Toro 59-1030

SCREW-TAP

$

$

Not available

16

Toro 59-0430

SPRING

$

$

Not available

17

Toro 79-6560

Arm, Governor Control Without Swivel-Zinc Plated
(Superseded to 79-6370)

$

$

Not available

18

Screw (1/4-20 x 1/2")

$

$

Not available

Toro 59-1100

SCREW-HWH

$

$

Not available

Toro 59-1010

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

19

Toro 59-0830

WASHER-FLAT

$

$

Not available

20

Toro 57-9120

BUSHING

$8.49

$

Usually ships in 3-6 days

0

22

Toro 59-1010

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

23

Toro 57-9190

CLIP

$

$

Not available

24

Toro 79-6390

BRKT-GOVERNOR CONTRL

$

$

Not available

25

Toro 59-0830

WASHER-FLAT

$

$

Not available

26

Toro NN10419

Washer-Lock
(Superseded to 82-1620)

$4.49

$

Usually ships in 3-6 days

0

27

Toro NN10369

Bolt
(Superseded to 82-1370)

$

$

Not available

28

Toro 201327

HEX HD CAP SCREW

$

$

Not available

29

Toro 79-6400

BUSHING-GOV CONTROL

$

$

Not available

30

Toro 57-9120

BUSHING

$8.49

$

Usually ships in 3-6 days

0

31

Toro 59-0720

PIN-COTTER

$

$

Not available

32

Toro NN10410

Bolt
(Superseded to 72-3890)

$

$

Not available

33

Toro 79-6410

LINK-GOV CONTROL

$

$

Not available

34

Toro 79-6420

ADAPTER-GOV ARM

$

$

Not available

35

Toro 59-1050

SCREW-TAPPING PAN HD

$5.99

$

Usually ships in 3-6 days

0

37

Toro NN10340

Plug
(Superseded to 82-1190)

$

$

Not available

38

Toro 59-1080

SCREW-HWH

$5.99

$

Usually ships in 3-6 days

0

39

Toro 82-0620

GUARD-STATIONARY

$140.99

$

Usually ships in 3-6 days

0

41

Toro NN10832

BRACKET

$

$

Not available

42

Toro 59-1100

SCREW-HWH

$

$

Not available

48

Toro 82-0930

SCREW - THREAD CUTTING

$

$

Not available

49

Toro 82-1590

SCREW-PAN HEAD

$

$

Not available

55

Toro 71-6220

CLIP-WIRE

$

$

Not available

56

Toro 82-1540

SCREW-HWH

$

$

Not available

57

Toro 71-6080

BRACKET-LIFTING

$27.99

$

Usually ships in 3-6 days

0
