41-20OE02 (520-H) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) Toro Power Plus Gearcase, Ignition Control, Alternator And Regulator Parts Diagram

Garden Tractor

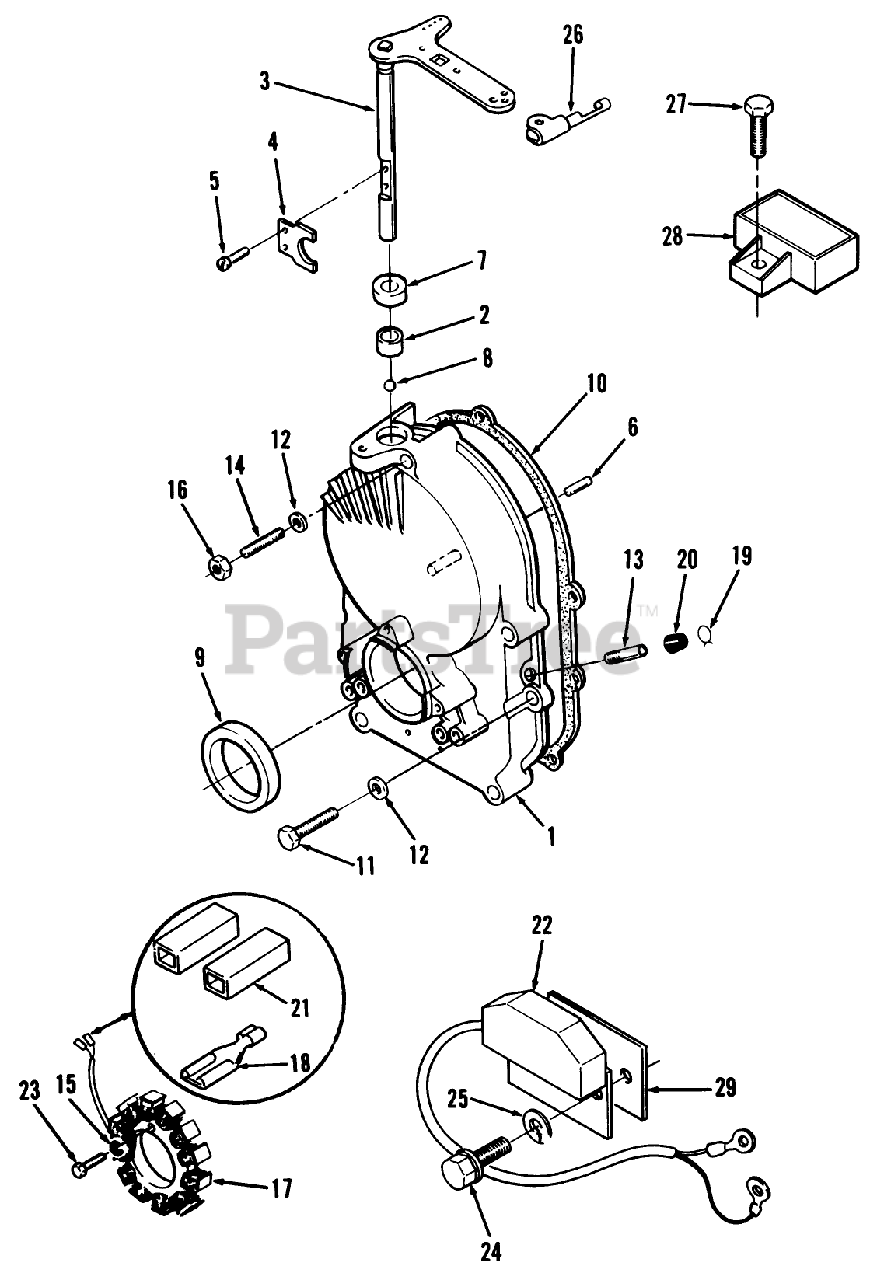

Toro Power Plus Gearcase, Ignition Control, Alternator And Regulator Parts Diagram

  • Title

1

Toro NN10825

DISCONTINUED

$

$

Not available

2

Toro NN10329

DISCONTINUED
(Superseded to 57-9650)

$

$

Not available

3

Toro NN10826

SHAFT AND ARM

$232.99

$

Usually ships in 3-6 days

0

4

Toro 59-0420

DISCONTINUED

$

$

Not available

5

Toro NN103g8

*Screw, Machine-Pan Head (8-32 x 3/8")

$

$

Currently unavailable

6

Toro 59-0740

PIN-DOWEL

$6.49

$

In Stock, only 1 left!

0

7

Toro 57-9570

DISCONTINUED

$

$

Not available

8

Toro NN10327

See Supercession: 57-9630
(Superseded to 57-9630)

$

$

Not available

9

Toro 57-9580

SEAL

$

$

Not available

10

Toro NN10895

DISCONTINUED
(Superseded to 71-6360)

$

$

Not available

11

Toro 82-1410

DISCONTINUED
(Superseded to NN10545)

$

$

Not available

12

Toro 57-9750

WASHER

$

$

Not available

13

Toro NN10210

See Supercession: 59-0360
(Superseded to 59-0360)

$

$

Not available

14

Toro 79-6480

See Supercession: 82-1240
(Superseded to 82-1240)

$6.99

$

Usually ships in 3-6 days

0

15

Toro 82-1610

See Supercession: 3253-2
(Superseded to 325-32)

$7.49

$

Usually ships in 3-6 days

0

16

Toro 59-1130

NUT-GEAR COVER

$

$

Not available

17

Toro NN10518

See Supercession: 92-0967
(Superseded to 92-0967)

$897.99

$

Usually ships in 3-6 days

0

18

Toro NN10290

See Supercession: 59-0590
(Superseded to 59-0590)

$

$

Not available

19

Toro 57-9550

DISCONTINUED

$

$

Not available

20

Toro 59-0370

CAP-FUEL OUTLET

$

$

Not available

21

Toro 82-1000

BODY-TERM. CONNECTOR KIT

$

$

Not available

22

Toro NN10444

See Supercession: 71-6380
(Superseded to 71-6380)

$485.99

$

Usually ships in 3-6 days

0

23

Toro 82-1500

See Supercession: 71-6390
(Superseded to 71-6390)

$

$

Not available

24

Toro NN10394

See Supercession: 71-6400
(Superseded to 71-6400)

$

$

Not available

25

Toro 82-1660

WASHER-LOCK

$

$

Not available

26

Toro 57-9730

CLIP

$

$

Not available

27

Toro 59-1080

SCREW-HWH

$

$

Not available

28

Toro NN10261

See Supercession: 117-2742
(Superseded to 117-2742)

$288.99

$

In Stock, only 2 left!

0

29

Toro NN10516

See Supercession: 71-6410
(Superseded to 71-6410)

$14.99

$

Usually ships in 3-6 days

0
