41-20OE03 (520-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) Choke Control (front Pull) Parts Diagram

Garden Tractor

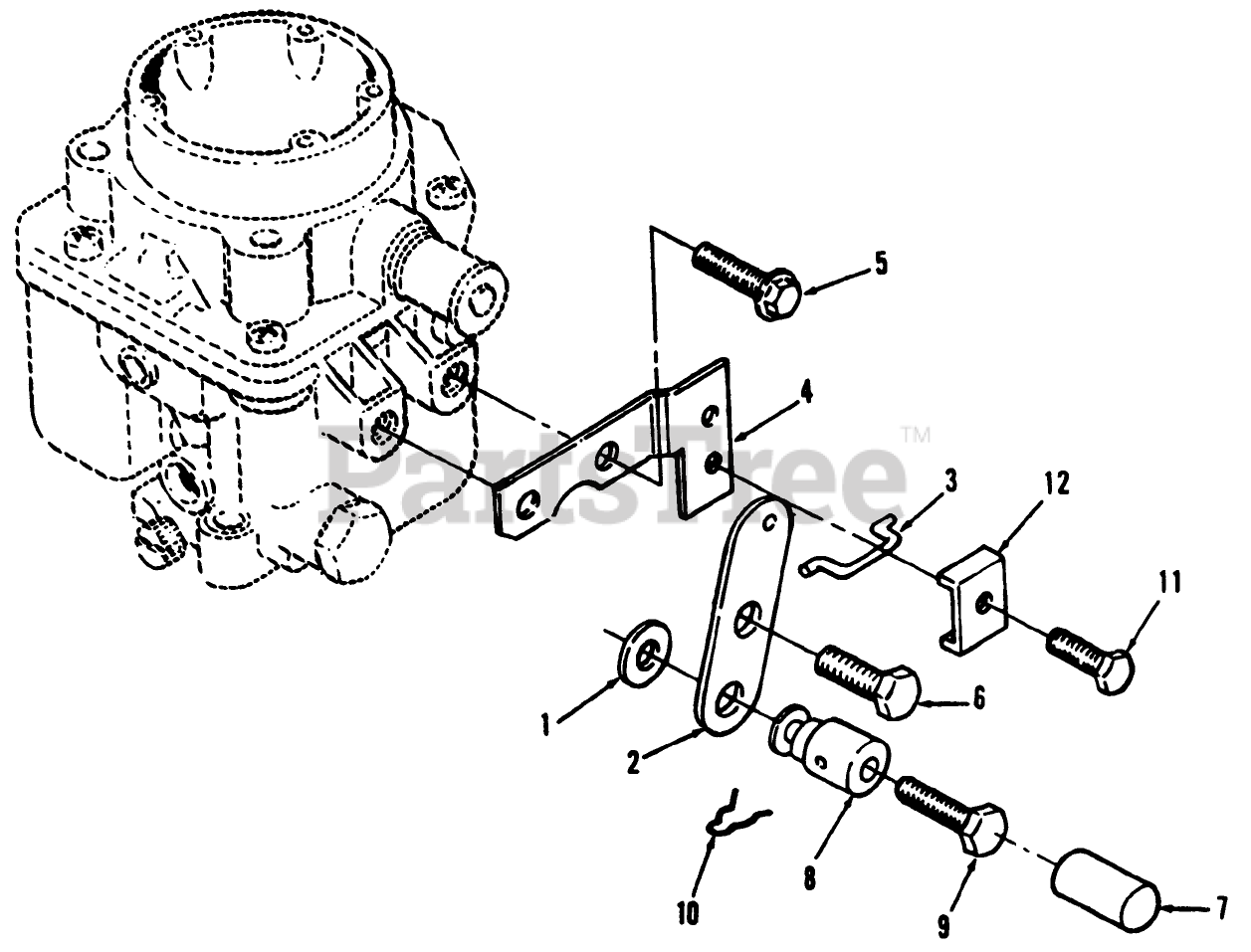

Choke Control (front Pull) Parts Diagram

  • Title

1

Toro NN10364

DISCONTINUED
(Superseded to 59-0850)

$

$

Not available

2

Toro NN10233

See Supercession: 59-0460
(Superseded to 59-0460)

$

$

Not available

3

Toro NN10231

See Supercession: 57-9180
(Superseded to 57-9180)

$

$

Not available

4

Toro NN10513

See Supercession: 59-0470
(Superseded to 59-0470)

$

$

Not available

5

Toro NN10412

See Supercession: 72-3880
(Superseded to 72-3880)

$

$

Not available

6

Toro 92-0916

MACHINE SCREW

$

$

Not available

7

Toro NN10830

DISCONTINUED

$

$

Not available

8

Toro NN10230

See Supercession: 57-9170
(Superseded to 57-9170)

$

$

Not available

9

Toro NN10410

See Supercession: 72-3890
(Superseded to 72-3890)

$

$

Not available

10

Toro 59-0720

PIN-COTTER

$

$

Not available

11

Toro 72-3900

SCREW-TAPPING

$

$

Not available

12

Toro 57-9190

CLIP

$

$

Not available
