41-20OE03 (520-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) Ignition-Electronic Parts Diagram

Garden Tractor

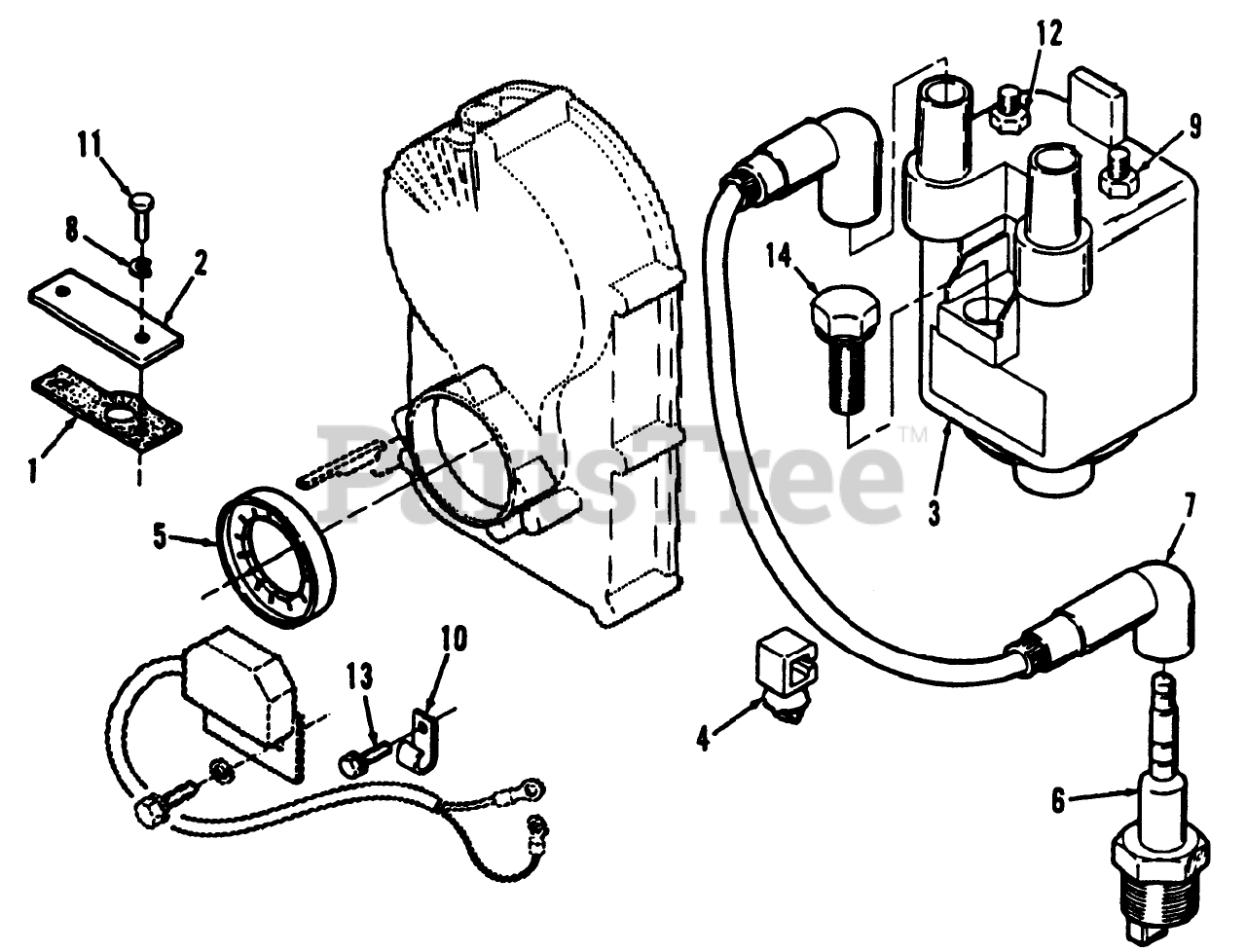

Ignition-Electronic Parts Diagram

  • Title

1

Toro 79-6490

See Supercession: 57-9260
(Superseded to 57-9260)

$

$

Not available

2

Toro NN10515

See Supercession: 71-5990
(Superseded to 71-5990)

$

$

Not available

3

Toro NN10245

See Supercession: 71-6000
(Superseded to 71-6000)

$

$

Not available

4

Toro NN10522

See Supercession: 71-6060
(Superseded to 71-6060)

$

$

Not available

5

Toro NN10247

See Supercession: 71-6010
(Superseded to 71-6010)

$244.99

$

Usually ships in 3-6 days

0

6

Toro NN10517

See Supercession: 57-9340
(Superseded to 57-9340)

$4.49

$

In Stock, Qty 6

0

7

Toro NN10253

See Supercession: 57-9350
(Superseded to 57-9350)

$210.99

$

Usually ships in 3-6 days

0

8

Toro 82-1340

WASHER-FLAT

$

$

Not available

9

Toro NN10248

See Supercession: 71-6430
(Superseded to 71-6430)

$

$

Not available

10

Toro NN10348

See Supercession: 71-6220
(Superseded to 71-6220)

$

$

Not available

11

Toro 82-1360

SCREW - CAP HEX HEAD

$

$

Not available

12

Toro NN10249

See Supercession: 71-6440
(Superseded to 71-6440)

$

$

Not available

13

Toro NN10408

See Supercession: 71-6460
(Superseded to 71-6460)

$

$

Not available

14

Toro 82-1410

DISCONTINUED
(Superseded to NN10545)

$

$

Not available
