41 - Husqvarna Chainsaw (1997-07) Starter, Ignition, Tank Assembly And Throttle Trigger Kit Parts Diagram

Chainsaw

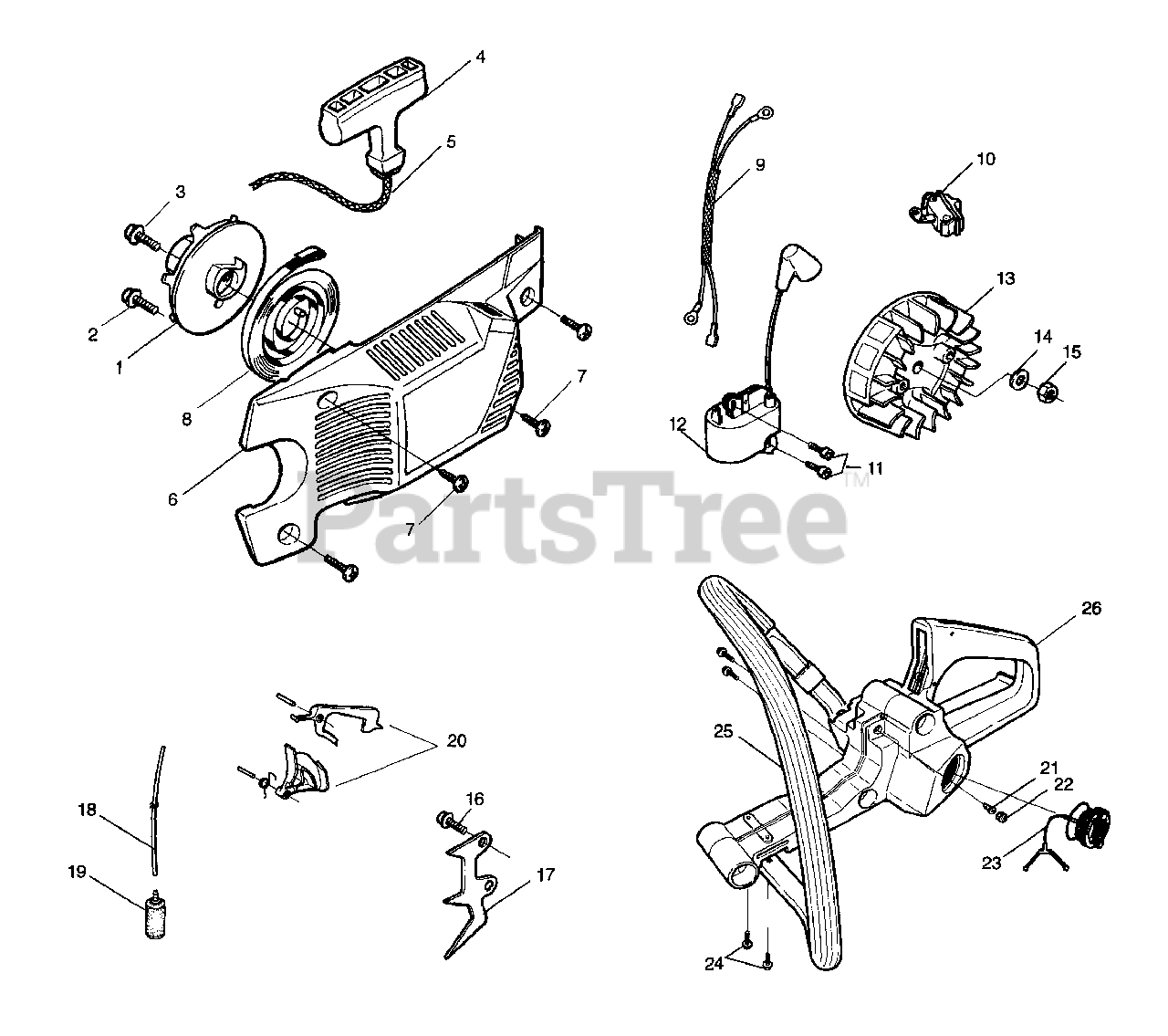

Starter, Ignition, Tank Assembly And Throttle Trigger Kit Parts Diagram

  • Title

1

Husqvarna 530069313

Starter-Pulley Kit

$

$

Not available

2

Husqvarna 530015920

Screw

$6.49

$

In Stock, Qty 8

0

3

Husqvarna 530016080

Screw

$6.49

$

In Stock, Qty 11

0

4

Husqvarna 530038491

Starter Handle
(Superseded to 530150318)

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

6

Husqvarna 530047599

Fan Housing Assembly
(Superseded to 530049811)

$

$

Not available

7

Husqvarna 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

8

Husqvarna 501763101

Recoil Spring

$17.99

$

In Stock, Qty 16

0

9

Husqvarna 530037468

Switch Wire Assy.
(Superseded to 530403257)

$

$

Not available

10

Husqvarna 503717901

Ignition Switch

$17.99

$

In Stock, Qty 20+

0

11

Husqvarna 530015895

Screw

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 530039143

Ignition Module
(Superseded to 575803501)

$18.99

$

In Stock, Qty 20+

0

13

Husqvarna 530039147

Flywheel Assy.
(Superseded to 575635502)

$17.99

$

In Stock, Qty 6

0

14

Husqvarna 530015127

Flywheel Washer

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 530016071

Nut

$

$

Not available

16

Husqvarna 530015906

Screw

$6.49

$

In Stock, Qty 9

0

17

Husqvarna 530014381

Spike Assy.

$9.99

$

In Stock, Qty 16

0

18

Husqvarna 530069247

Fuel Line Kit

$6.49

$

In Stock, Qty 20+

0

19

Husqvarna 530014497

Fuel Pick-up
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 530069587

Throttle Trigger Kit

$

$

Not available

21

Husqvarna 530026119

Check Valve

$4.49

$

In Stock, Qty 16

0

22

Husqvarna 530029868

Vent Plug

$6.49

$

In Stock, Qty 15

0

23

Husqvarna 501819602

Fuel Cap
(Superseded to 537215207)

$10.99

$

In Stock, Qty 20+

0

24

Husqvarna 530015906

Screw

$6.49

$

In Stock, Qty 9

0

25

Husqvarna 530014290

Handle

$

$

Not available

26

Husqvarna 530014884

Tank & Handle Assembly

$

$

Not available
