41 RS - Shindaiwa Broadcast Spreader Hopper Assembly Parts Diagram

Broadcast Spreader

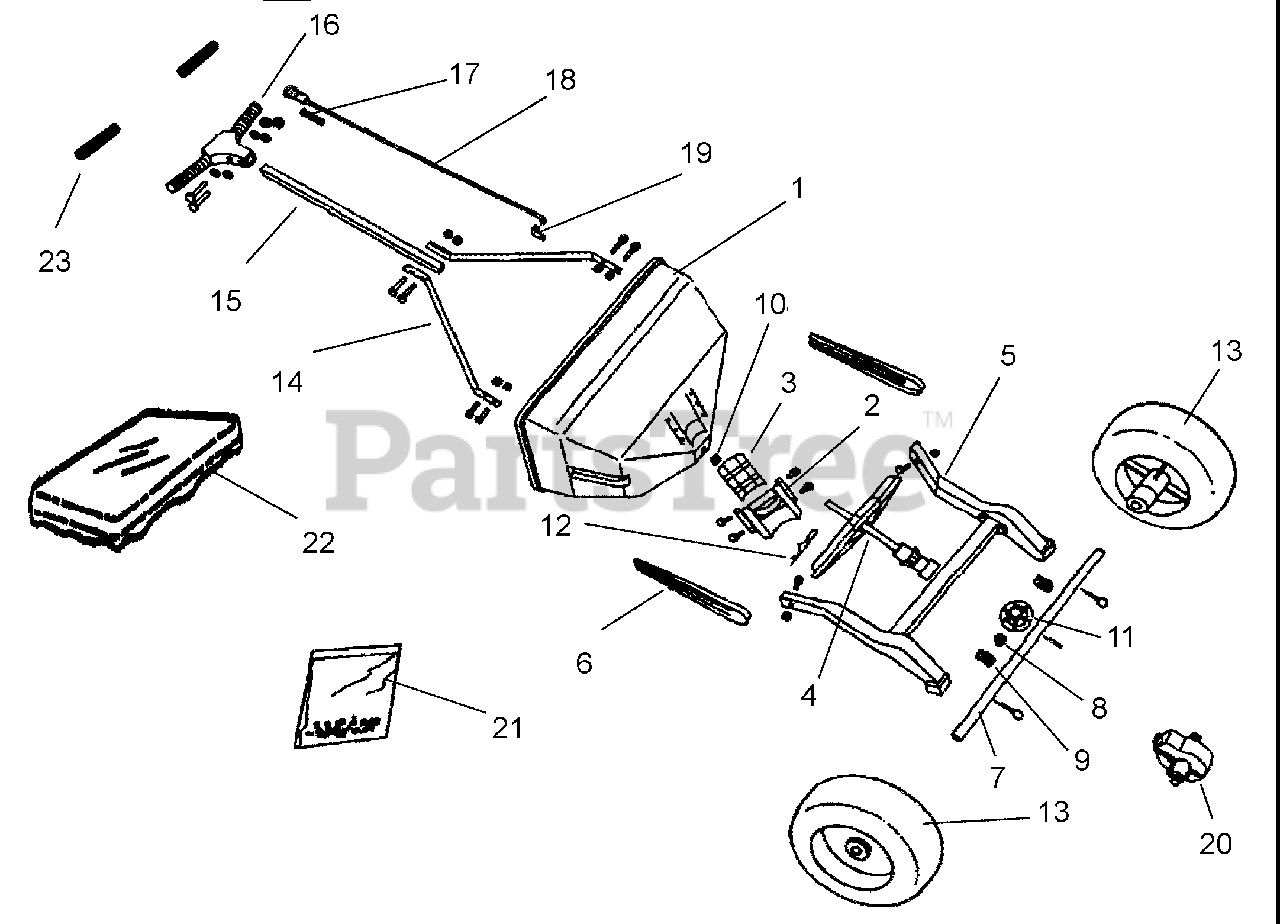

Hopper Assembly Parts Diagram

  • Title

1

Echo 15845

HOPPER ASSY
(Superseded to P14508-1SH)

Note: Includes ITEMS 2-3

$117.99

$

Usually ships in 2-4 days

0

2

Echo 14455-1

RATE CAM & CHUTE ASSY
(Superseded to P14455-1)

$24.99

$

In Stock, only 2 left!

0

3

Echo 14454-1

PLATE, SHUTOFF
(Superseded to P14454-1)

$8.99

$

In Stock, only 2 left!

0

4

Echo 15849

IMPELLER ASSY
(Superseded to P15849)

$71.99

$

Usually ships in 2-4 days

0

5

Echo 15837

FRAME ASSY
(Superseded to P15837)

$146.99

$

Usually ships in 2-4 days

0

6

Echo 13619-1

LEGS
(Superseded to 13619-2)

$61.99

$

In Stock, only 1 left!

0

7

Echo 15842

AXLE
(Superseded to P15842)

$24.99

$

Usually ships in 2-4 days

0

8

Echo 13362

AXLE COLLAR
(Superseded to 14634)

$18.99

$

Usually ships in 2-4 days

0

10

Echo 15833

BEARING
(Superseded to P15833)

$13.99

$

Usually ships in 2-4 days

0

11

Echo 13625-1

AXLE GEAR KIT
(Superseded to P13625-1)

$28.99

$

Usually ships in 2-4 days

0

12

Echo 15866

AGITATOR
(Superseded to 33117)

$16.99

$

In Stock, only 2 left!

0

13

Echo 14939-1

WHEEL KIT
(Superseded to P14939-1)

$80.99

$

Usually ships in 2-4 days

0

14

Echo 13613-1

BRACE, HANDLE
(Superseded to 13613-03)

$122.99

$

Usually ships in 2-4 days

0

15

Echo 14513-1

TUBE, HANDLE
(Superseded to P145132-03)

$28.99

$

Usually ships in 2-4 days

0

16

Echo 13634-2

T-HANDLE ASSY
(Superseded to P13634-2)

$45.99

$

Usually ships in 2-4 days

0

17

Echo 14462

CONTROL KNOB SPRING
(Superseded to P14462)

$5.49

$

Usually ships in 2-4 days

0

18

Echo 13640-1

CONTROL BOX ASSY
(Superseded to P146151)

$29.99

$

Usually ships in 2-4 days

0

19

Echo 13643-1

CLIP
(Superseded to P13643-1)

$3.99

$

In Stock, Qty 7

0

20

Echo 13623-1

GEAR COVER ASSY
(Superseded to P13623)

$35.99

$

Usually ships in 2-4 days

0

21

Echo 15880

FASTENER KIT
(Superseded to P15880)

$42.99

$

Usually ships in 2-4 days

0

22

Echo 15209

COVER, HOPPER

$20.99

$

Usually ships in 2-4 days

0

23

Echo 15264

GRIP, HANDLE
(Superseded to P15264)

$21.99

$

Usually ships in 2-4 days

0
