410 (84229) - Snapper String Trimmer 410 Fuel Tank, Primer Pump, And Contact Breaker Assm'y Parts Diagram

String Trimmer

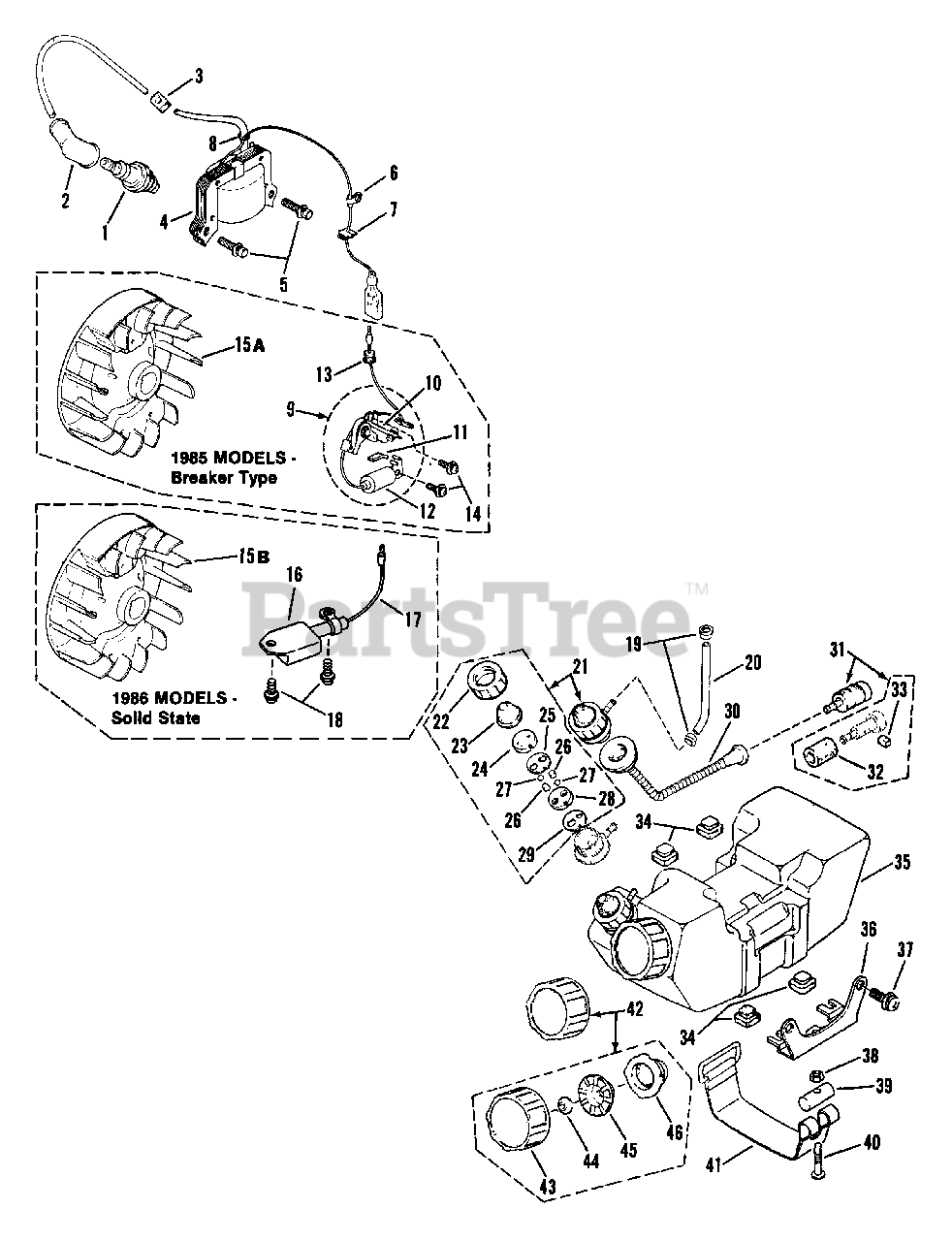

410 Fuel Tank, Primer Pump, And Contact Breaker Assm'y Parts Diagram

  • Title

1

Snapper 68025

SPARK PLUG (NGK: BM-6A)

$

$

Currently unavailable

2

Snapper 7044031

BOOT, Spark Plug

$

$

Currently unavailable

3

Snapper 7044030

BUSHING, Dust Seal

$

$

Currently unavailable

4

Snapper 7044033

COIL, Ignition

Note: (Incl. items 6 & 8)

$

$

Not available

5

Snapper 7044034

BOLT

$

$

Currently unavailable

6

Snapper 7044038

CLAMP

$

$

Currently unavailable

7

Snapper 7044039

BUSHING, Dust Seal

$

$

Currently unavailable

8

Snapper 7012080

BAND
(Superseded to 7012080SM)

Note: Was 44046

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7044036

CONTACT BREAKER ASSM'Y.

Note: (Includes items 10,11 & 12)

$

$

Not available

10

Snapper 7044044

CONTACT BREAKER (1985 only)

$

$

Not available

11

Snapper 7044045

FELT, Oil (1985 only)

$

$

Currently unavailable

12

Snapper 7044042

CONDENSER ASSM'Y.

Note: (Includes item 11) (1985 only)

$

$

Not available

13

Snapper 7044043

BUSHING, Dust Seal

$

$

Currently unavailable

14

Snapper 7044037

SCREW

$

$

Currently unavailable

15A

Snapper 7044035

FLYWHEEL (1985 Model)

$

$

Currently unavailable

15B

Snapper 7044151

FLYWHEEL (1986 Model)

$

$

Currently unavailable

16

Snapper 44152

MTI Unit

$

$

Currently unavailable

17

Snapper 7044153

WIRE, Lead

$

$

Currently unavailable

18

Snapper 7044148

SCREW

$

$

Currently unavailable

19

Snapper 7044127

CLIP, Fuel Tube

$

$

Not available

20

Snapper 7044128

TUBE, Fuel

$

$

Not available

21

Snapper 7044129

PRIMER PUMP ASSM'Y.

Note: (Includes items 22 thru 29)

$

$

Not available

22

Snapper 7044090

CAP, Pump

$

$

Not available

23

Snapper 7044118

CAP, Rubber

$

$

Not available

24

Snapper 7044119

SEAT, Valve B

$

$

Not available

25

Snapper 7044120

GASKET

$

$

Not available

26

Snapper 7044121

SPONGE

$

$

Not available

27

Snapper 7044122

BALL

$

$

Not available

28

Snapper 7044123

SEAT, Valve A

$

$

Not available

29

Snapper 7044124

GASKET

$

$

Not available

30

Snapper 7044130

HOSE, Fuel

$

$

Not available

31

Snapper 7044125

FILTER ASSM'Y., Fuel

$

$

Not available

32

Snapper 7044143

FILTER

$

$

Not available

33

Snapper 7044144

SPONGE

$

$

Not available

34

Snapper 7044126

PAD

$

$

Not available

35

Snapper 7044136

TANK ASSM'Y.,Fuel

Note: (Incl. 19, 20, 21 & 30, 31, 42)

$

$

Not available

36

Snapper 7044137

HANGER, Tank

$

$

Not available

37

Snapper 7044104

SCREW, Hanger

$

$

Currently unavailable

38

Snapper 7044139

NUT

$

$

Not available

39

Snapper 7044140

BAR, Band Support

$

$

Not available

40

Snapper 7044142

SCREW

$1.99

$

In Stock, only 1 left!

0

41

Snapper 7044141

BAND, Tank

$

$

Not available

42

Snapper 7044150

CAP ASSM'Y.,Fuel

Note: (Incl. items 43 thru 46)

$

$

Not available

43

Snapper 7044150

CAP, Fuel

Note: Was 44149

$

$

Not available

44

Snapper 7044133

VALVE

$

$

Not available

45

Snapper 7044134

HOLDER

$

$

Currently unavailable

46

Snapper 7044150

GASKET

Note: Was 44135

$

$

Not available
