4108 (1690174) - Simplicity 36" Lawn Tractor, 8hp Frame & Front Axle Group(4008-4108-4208) Parts Diagram

36" Lawn Tractor, 8hp

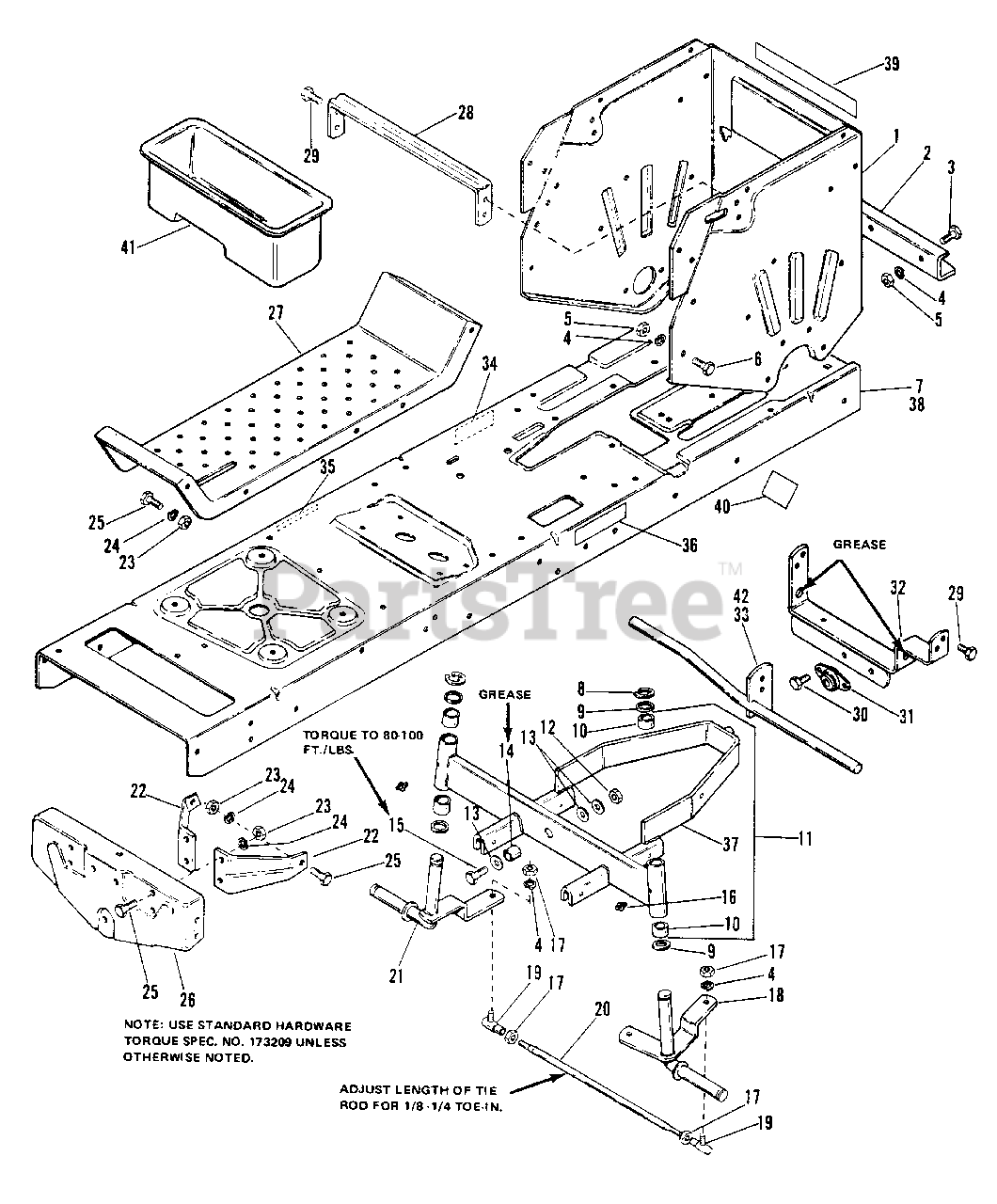

Frame & Front Axle Group(4008-4108-4208) Parts Diagram

  • Title

1

Simplicity 1656092

SUPPORT, Rear frame

$

$

Not available

2

Simplicity 1655591SM

DRAW BAR
(Superseded to 1655591ASM)

$33.99

$

Usually ships in 2-12 days

0

3

Simplicity 2821210

CAPSCREW, 3/8-16 x 1

$

$

Not available

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

Note: Ref. No. 4, 10 used on 4008 & 4108 Qty. 11 used on 4208

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 2816950SM

NUT, Hex, 3/8
(Superseded to 703457)

Note: Ref. No. 5, 8 used on 4008 & 4108 Qty. 9 used on 4208

$4.49

$

In Stock, Qty 12

0

6

Simplicity 2821965

CAPSCREW, 3/8-16 x 3/4

Note: Ref. no. 6, Qty. 5 used on 4008 & 4108 Qty. 6 used on 4208

$

$

Not available

7

Simplicity 1656668

FRAME SUPPORT ASSEMBLY (4008)

$

$

Not available

8

Simplicity 2157286

RING, Retaining

$

$

Not available

9

Simplicity 2108181

WASHER

$

$

Not available

10

Simplicity 2154289SM

BUSHING

$18.99

$

In Stock, Qty 8

0

11

Simplicity 1655268

FRONT AXLE ASSEMBLY

$

$

Not available

12

Simplicity 2830648

LOCKNUT, Hex, 1/2-13

$

$

Not available

13

Simplicity 1926192SM

WASHER, Plain

$20.99

$

Usually ships in 2-12 days

0

14

Simplicity 1655034

SPACER

$

$

Not available

15

Simplicity 923154

CAPSCREW, 1/2-13 x 1-1/2

$

$

Not available

16

Simplicity 2814687

FITTING, Grease

$

$

Not available

17

Simplicity 2818403

NUT, 3/8-24

$

$

Not available

18

Simplicity 1665080SM

SPINDLE, L.H.
(Superseded to 1665080ASM)

$206.99

$

Usually ships in 2-12 days

0

19

Simplicity 1669567SM

JOINT, Ball

$16.99

$

In Stock, Qty 9

0

20

Simplicity 1652613

ROD, Tie

$

$

Not available

21

Simplicity 1665079

SPINDLE, R.H.
(Superseded to 1665079ASM)

$103.99

$

In Stock, only 2 left!

0

22

Simplicity 1655076

BRACE, Front Axle

$

$

Not available

23

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 8

0

24

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, Qty 8

0

25

Simplicity 2821332

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

26

Simplicity 1652600

SUPPORT, Front Axle

$

$

Not available

27

Simplicity 1656225

FOOT REST

$

$

Not available

28

Simplicity 1654707

BRACE, Seat

$

$

Not available

29

Simplicity 2830601

SCREW, Taptite, 5/16-18 x 5/8

$

$

Not available

30

Simplicity 928730

SCREW, Taptite, Washer head, 3/8-16 x 1/2

$

$

Not available

31

Simplicity 1655064

BEARING ASSEMBLY, Side Flange

$

$

Not available

32

Simplicity 1656311

AXLE SUPPORT ASSEMBLY

$

$

Not available

33

Simplicity 1656159

BRAKE LEVER ASSEMBLY (4008, 4108)

$

$

Not available

34

Simplicity 1655499

DECAL, Parking Brake

$

$

Not available

35

Simplicity 1655500

DECAL, Clutch, Brake

$

$

Not available

36

Simplicity 1655512

DECAL, PTO & Mower Lift (4108) (4208)

$

$

Not available

37

Simplicity 1654575

AXLE ASSEMBLY, Front

Note: Ref. No. 37 Not Serviced For Service Order Ref. No. 11

$

$

Not available

38

Simplicity 1652904

FRAME, (4108 & 4208)

$

$

Not available

39

Simplicity 1655708

DECAL, Transaxle (4208)

$

$

Not available

40

Simplicity 1655727

DECAL, Parking Brake (4208)

$

$

Not available

41

Simplicity 1655990

TRAY,Tool, (4208)

$

$

Not available

42

Simplicity 1656206

BRAKE LEVER ASSY., (4208)

$

$

Not available
