4108 (1690207) - Simplicity 36" Lawn Tractor, 8hp Clutch & Brake Controls Group (4008-4108) Parts Diagram

36" Lawn Tractor, 8hp

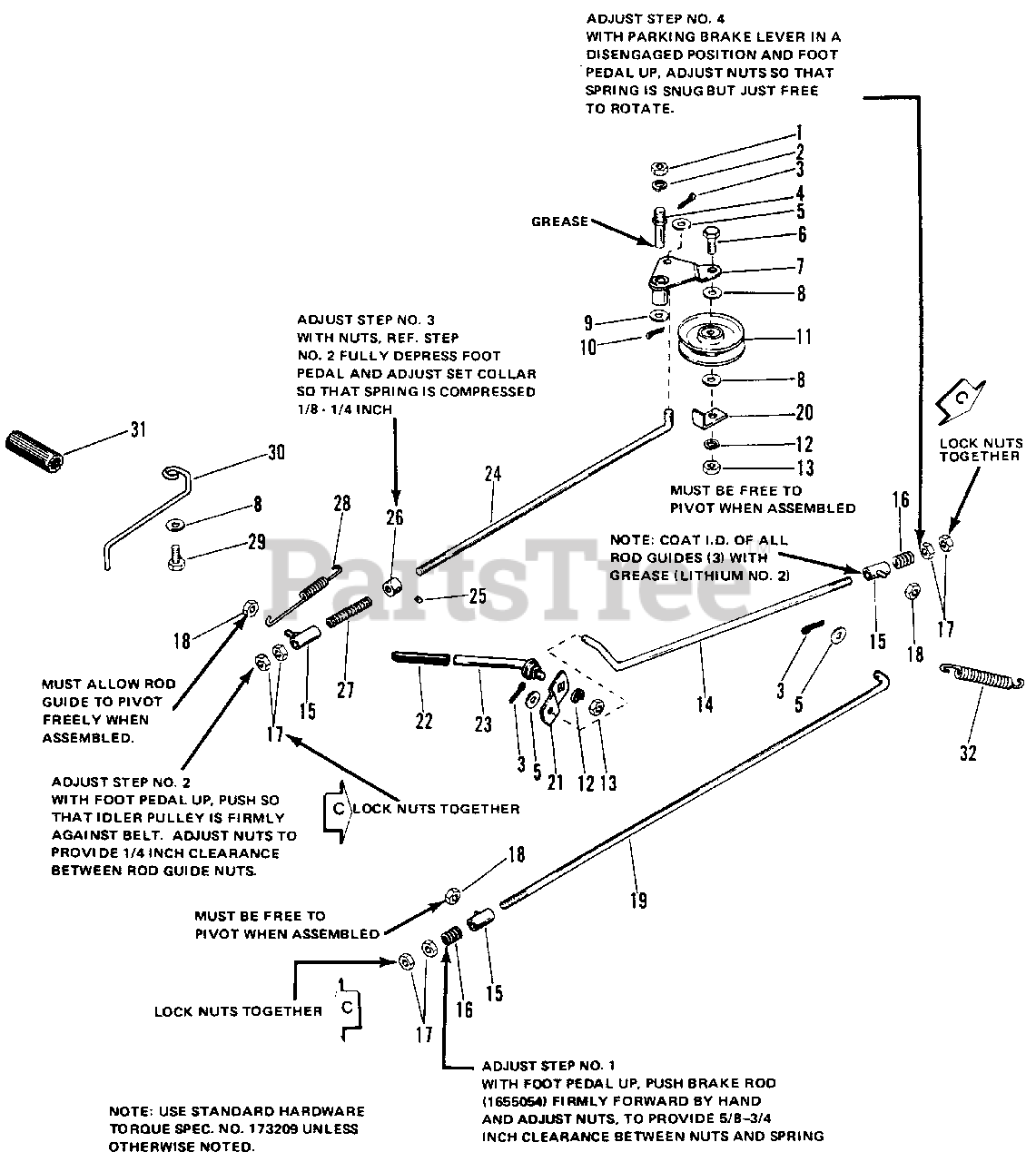

Clutch & Brake Controls Group (4008-4108) Parts Diagram

  • Title

1

Simplicity 2818213

NUT, Hex, full, 7/16-14

$

$

Not available

2

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

3

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

4

Simplicity 106928

STUD

$

$

Not available

5

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

6

Simplicity 2821969

CAPSCREW, Hex, 3/8-16 x 1-1/2

$

$

Not available

7

Simplicity 1653076

IDLER ASSEMBLY

$

$

Not available

8

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

9

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

11

Simplicity 2106716

PULLEY, Idler

$

$

Not available

12

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

13

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

14

Simplicity 1655056

ROD, Parking Brake

$

$

Not available

15

Simplicity 156303

ROD GUIDE ASSEMBLY

$

$

Not available

16

Simplicity 2173575SM

SPRING

$13.99

$

Usually ships in 2-12 days

0

17

Simplicity 1917372SM

NUT, Hex, full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

19

Simplicity 1655054

ROD, Brake

$

$

Not available

20

Simplicity 2106717

GUIDE, Belt

$

$

Not available

21

Simplicity 1654891

ARM, Pivot

$

$

Not available

22

Simplicity 1651820SM

GRIP
(Superseded to 5023198SM)

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 1654893

HANDLE, Control

$

$

Not available

24

Simplicity 1702156SM

ROD, Clutch

$55.99

$

Usually ships in 2-12 days

0

25

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8 Sq. Hd.

$

$

Not available

26

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

27

Simplicity 2157041SM

SPRING

$15.99

$

Usually ships in 2-12 days

0

28

Simplicity 2165068SM

SPRING, Return

$12.99

$

In Stock, only 1 left!

0

29

Simplicity 2825009

SCREW, Taptite, 5/16-18 x 7/8

$

$

Not available

30

Simplicity 1656658

STOP, Belt

$

$

Not available

31

Simplicity 1656312

PEDAL, Brake

$

$

Not available

32

Simplicity 2159106SM

SPRING, Tension
(Superseded to 703144)

$5.99

$

In Stock, Qty 10

0
