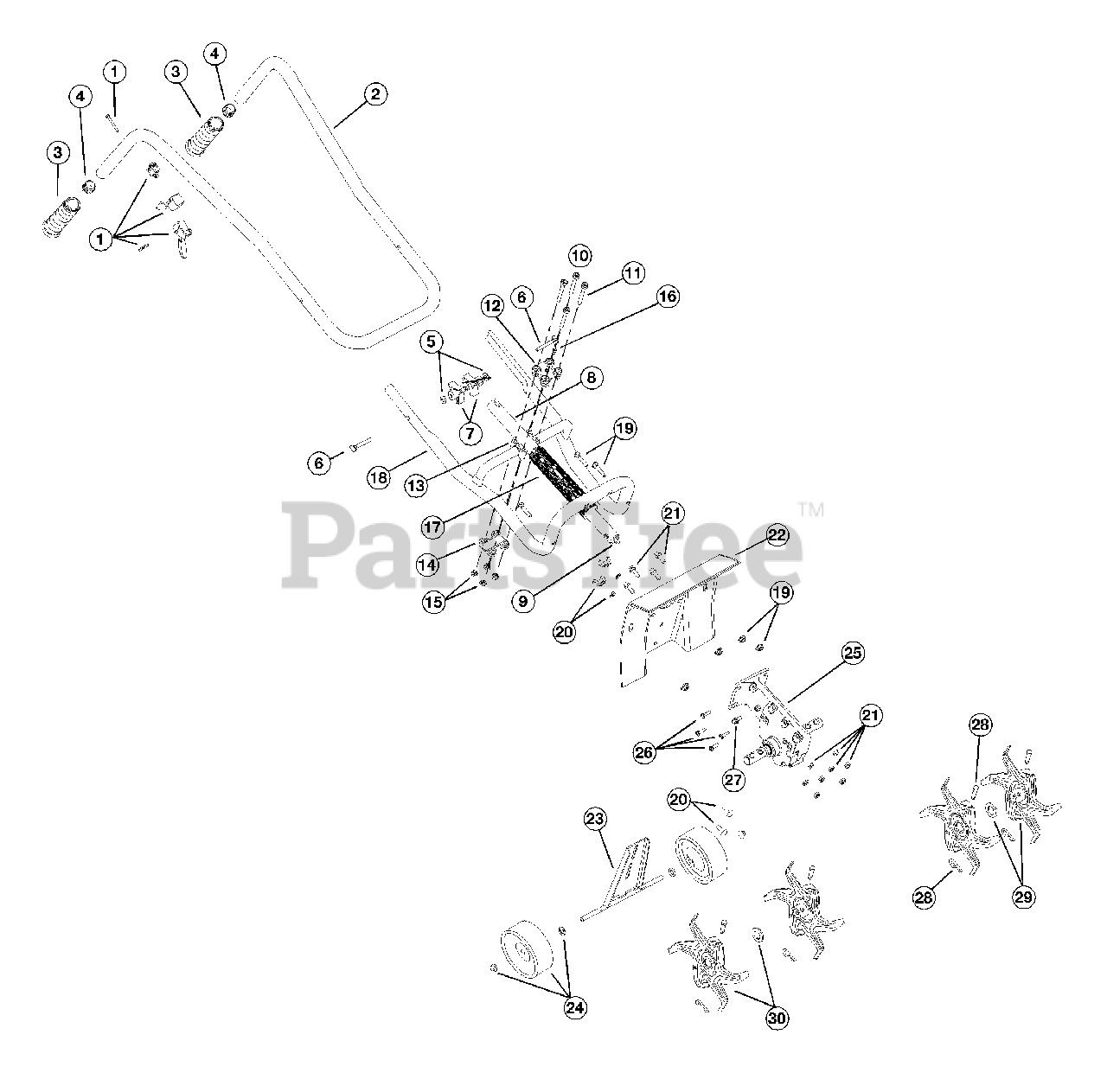

410r (21BK410G034) - Ryobi Tiller Boom And Cultivator Parts Parts Diagram

Tiller

Boom And Cultivator Parts Parts Diagram

  • Title

1

MTD 791-00023

Throttle Trigger and Cable Assembly

$

$

Not available

2

MTD 791-182882

Handle Bar Assembly, Upper

Note: (includes 3 & 4)

$

$

Not available

3

MTD 791-182675

Grip

$

$

Not available

4

MTD 791-182676

Tube Closure

$

$

Not available

5

MTD 791-182678

Washer
(Superseded to 4150)

$2.99

$

Usually ships in 3-6 days

0

6

MTD 791-182899

Bolt

$7.49

$

Usually ships in 3-6 days

0

7

MTD 791-182898

Knob, 3 prong
(Superseded to 791-182677)

$13.99

$

Usually ships in 3-6 days

0

8

MTD 791-180943

Drive Shaft Housing Assembly

$

$

Not available

9

MTD 791-181577

Flexible Drive Shaft

$

$

Not available

10

MTD 791-683295

Handle Bracket Assembly

Note: (includes 11-16)

$42.99

$

Usually ships in 3-6 days

0

11

MTD 791-181811

Screw

$4.49

$

Usually ships in 3-6 days

0

12

MTD 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

13

MTD 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

14

MTD 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

15

MTD 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

16

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

17

MTD 791-181575

Grip

$19.99

$

Usually ships in 3-6 days

0

18

MTD 791-182900

Lower Handle Bar

$

$

Not available

19

MTD 791-182681

Hardware, Handle Bar Mounting (lower)

$

$

Not available

20

MTD 791-147467

Wheel Bracket Mounting Hardware

$

$

Not available

21

MTD 791-181579

Guard Mounting Hardware
(Superseded to 753-04266)

$

$

Not available

22

MTD 791-182683

Guard

$

$

Not available

23

MTD 791-180320

Wheel Bracket Assembly
(Superseded to 753-05020)

$

$

Not available

24

MTD 791-180944

Wheel Assembly

$

$

Not available

25

MTD 791-147474

Gear Box Assembly
(Superseded to 753-04489)

$

$

Not available

26

MTD 791-181195

Screw

$

$

Currently unavailable

27

MTD 791-180288

Sleeve Retainer Bolt
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

28

MTD 791-147473

Tine Fastener Assembly

$

$

Not available

29

MTD 791-147471

Tine Assembly (Left Outer or Right Inner)
(Superseded to 791-182729)

$

$

Not available

30

MTD 791-147472

Tine Assembly (Left Inner or Right Outer)
(Superseded to 791-182730)

$

$

Not available

MTD 791-147543

Ryobi 2-Cycle Oil

Note: Optional Accessory; not shown

$

$

Not available
