411 SST (86298) - Snapper String Trimmer 411SST Accessories Parts Diagram

String Trimmer

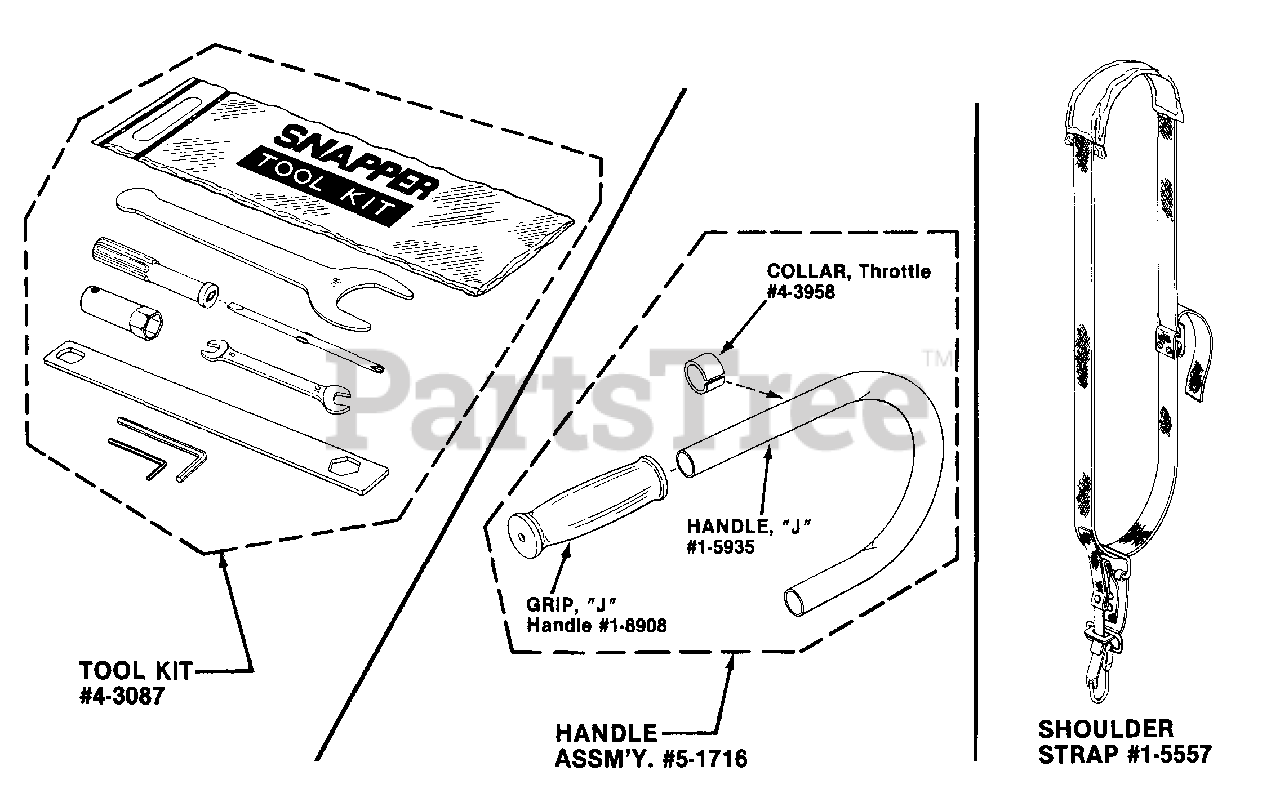

411SST Accessories Parts Diagram

  • Title

4-3087

Snapper 7043087

Tool Kit

$

$

Not available

5-1716

Snapper 7051716

Handle Assm'y

$

$

Currently unavailable

1-8908

Snapper 7018908

Grip, "J"

$

$

Not available

1-5935

Snapper 15935

Handle, "J"

$

$

Currently unavailable

4-3958

Snapper 7043958

Collar, Throttle

$

$

Currently unavailable

1-5557

Snapper 7015557

Shoulder Strap

$

$

Not available

6-8061

Snapper 7068061

VEST HARNESS & HANDLE BAR KIT

$

$

Currently unavailable

6-8019

Snapper 7068019

10 "DIA. 8 POINT BRUSH BLADE

$

$

Not available

6-8020

Snapper 68020

10" DIA. 80 TOOTH SAPLING BLADE

$

$

Currently unavailable

6-8011

Snapper 7068011

TWIN LINE MANUAL FEED HEAD

$

$

Currently unavailable

6-8104

Snapper 68104

COMMERCIAL "FIXED LINE" CUTTING HEAD

$

$

Currently unavailable

6-0744

Snapper 7060744

SNAPPER 2-CYCLE OIL - 6 Pack of 4 oz.

Note: Plastic Bottles (Use one 4 oz. Bottle per Gallon of Gasoline)

$

$

Currently unavailable
