411 SST (86298) - Snapper String Trimmer 411SST Manual Head Assm'y And Swivel Handle Assm'y Parts Diagram

String Trimmer

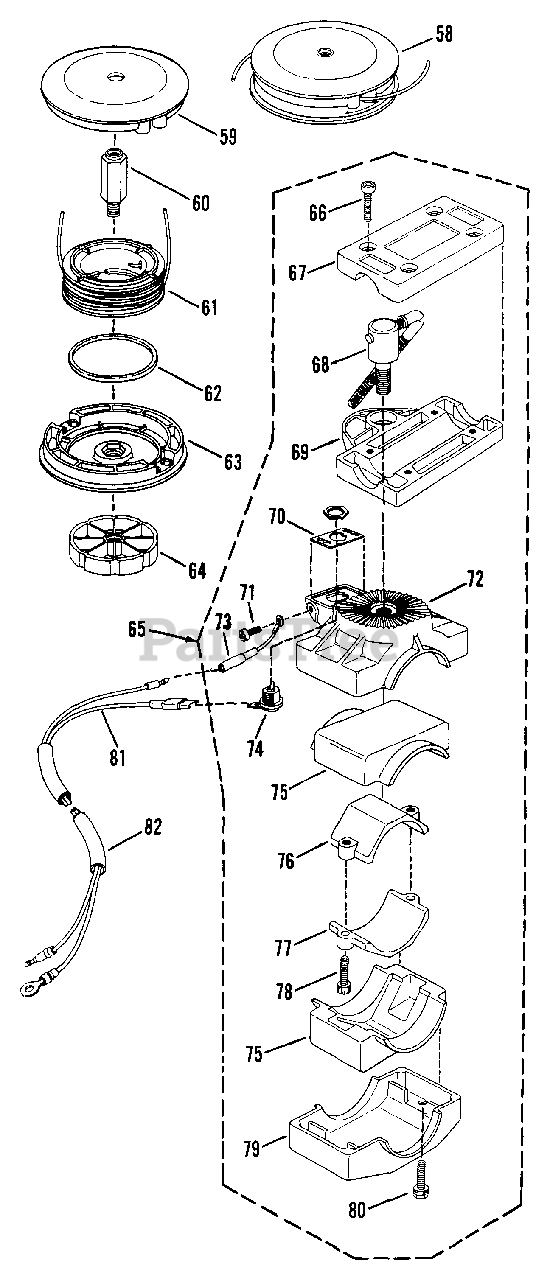

411SST Manual Head Assm'y And Swivel Handle Assm'y Parts Diagram

  • Title

58

Snapper 7018724

MANUAL HEAD ASSM'Y.

Note: (Incl. items 59 thru 64)

$

$

Not available

59

Snapper 7015078

HOUSING, Upper

$

$

Not available

60

Snapper 7015077

ARBOR (10mm hole)

$

$

Not available

61

Snapper 68012

SPOOL & LINE

$

$

Currently unavailable

62

Snapper 7015076

O-RING

$

$

Not available

63

Snapper 7015073

HOUSING, Lower

$

$

Not available

64

Snapper 68013

KNOB, Lock

$

$

Currently unavailable

65

Snapper 43084

SWIVEL HANDLE ASSM'Y.
(Superseded to 5043084B)

Note: (Incl. items 66 thru 80)

$193.99

$

Usually ships in 2-12 days

0

66

Snapper 7043952

SCREW, M5 x 20mm, Allen Hd.

$

$

Currently unavailable

67

Snapper 7043944

JOINT "A", Handle

$

$

Currently unavailable

68

Snapper 7043954

LOCK HANDLE

$

$

Currently unavailable

69

Snapper 7043945

JOINT "B", Handle

$

$

Currently unavailable

70

Snapper 7043975

PLATE, Switch

$

$

Not available

71

Snapper 7043977

SCREW, M5 x 10mm
(Superseded to 7043977YP)

$2.49

$

Usually ships in 2-12 days

0

72

Snapper 7043947

JOINT "D", Handle

$

$

Currently unavailable

73

Snapper 7043976

LEAD, Wire (Ground)

$

$

Not available

74

Snapper 43974

SWITCH, Stop

Note: (Incl. nut)

$

$

Currently unavailable

75

Snapper 7043950

RUBBER, Vibro (P)

$

$

Currently unavailable

76

Snapper 7043949

FITTING "A", Tube

$

$

Currently unavailable

77

Snapper 7043948

FITTING "B", Tube

$

$

Currently unavailable

78

Snapper 7043930

SCREW, M6 x 25mm, Allen Hd.

$

$

Currently unavailable

79

Snapper 7043946

JOINT "C", Handle

$

$

Currently unavailable

80

Snapper 7043951

BOLT, M6 x 30mm, Hex

$

$

Currently unavailable

81

Snapper 7044041

WIRE LEADS

$

$

Not available

82

Snapper 7044040

TUBE, Wire Leads

$

$

Not available
