412 H (1692560) - AGCO 30" Riding Mower, 12.5hp Engine Group - Electric Clutch (PTO)-12HP Tecumseh Parts Diagram

30" Riding Mower, 12.5hp

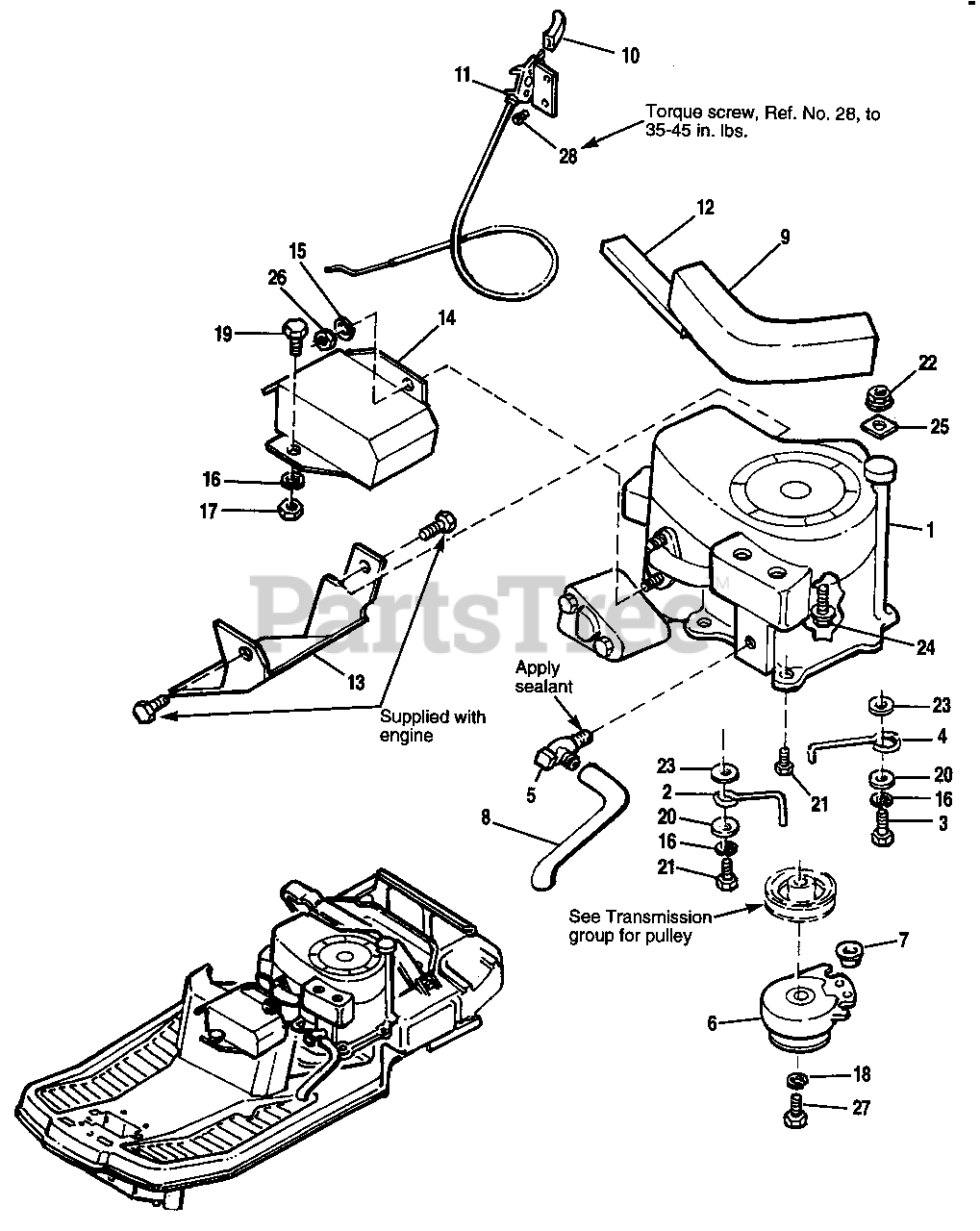

Engine Group - Electric Clutch (PTO)-12HP Tecumseh Parts Diagram

  • Title

1

ENGINE, 12 HP (Tecumseh)

$

$

Not available

2

Simplicity 2158499SM

BELT STOP

$

$

Not available

3

Simplicity 2860361SM

SCREW, Taptite, 3/8-16 x 2

$6.99

$

In Stock, only 1 left!

0

4

Simplicity 1704419SM

BELT STOP

$7.49

$

In Stock, only 3 left!

0

5

Simplicity 1708405SM

VALVE, Oil Drain

$40.99

$

Usually ships in 2-12 days

0

6

Simplicity 1686882SM

CLUTCH, Electric

$387.99

$

Usually ships in 2-12 days

0

7

Simplicity 1708537SM

SLEEVE, Clutch Anchor

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 1708645SM

HOSE, Oil Drain

$9.99

$

Usually ships in 2-12 days

0

9

Simplicity 1709055SM

SEAL, Air Inlet

$

$

Not available

10

Simplicity 1713846SM

KNOB, Throttle Control

$16.99

$

In Stock, only 4 left!

0

11

Simplicity 1714040SM

THROTTLE CONTROL ASSY.

$77.99

$

Usually ships in 2-12 days

0

12

Simplicity 1714103SM

SEAL, Air

$

$

Not available

13

Simplicity 1714442

DEFLECTOR, Air, Lower

$

$

Not available

14

Simplicity 1714643

SHIELD, Muffler

$

$

Not available

15

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

17

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

18

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

19

Simplicity 1921332SM

CAPSCREW, Hex, 5/16-18 x 3/4
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

20

Simplicity 1922755SM

WASHER, Plain, 3/8
(Superseded to 704128)

$5.49

$

In Stock, Qty 20+

0

21

Simplicity 1930598SM

SCREW, Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

In Stock, only 2 left!

0

22

Simplicity 1931277SM

NUT, Hex, Flange, Whizlock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

23

Simplicity 1933263SM

WASHER, Plain
(Superseded to 703990)

$6.99

$

In Stock, Qty 12

0

24

Simplicity 1933689SM

SCREW, Hex, Flange, Whizlock, 5/16-18 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 1933988SM

PUSH NUT, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 11

0

26

Simplicity 1960262SM

NUT, Hex, 1/4-28
(Superseded to 703461)

$4.49

$

In Stock, Qty 12

0

27

Simplicity 1960370SM

CAPSCREW, Hex, 7/16-20 x 2-1/2

$5.49

$

Usually ships in 2-12 days

0

28

Simplicity 1960536SM

SCREW, Plastite, 1/4-10 x 1/2

$4.99

$

Usually ships in 2-12 days

0
