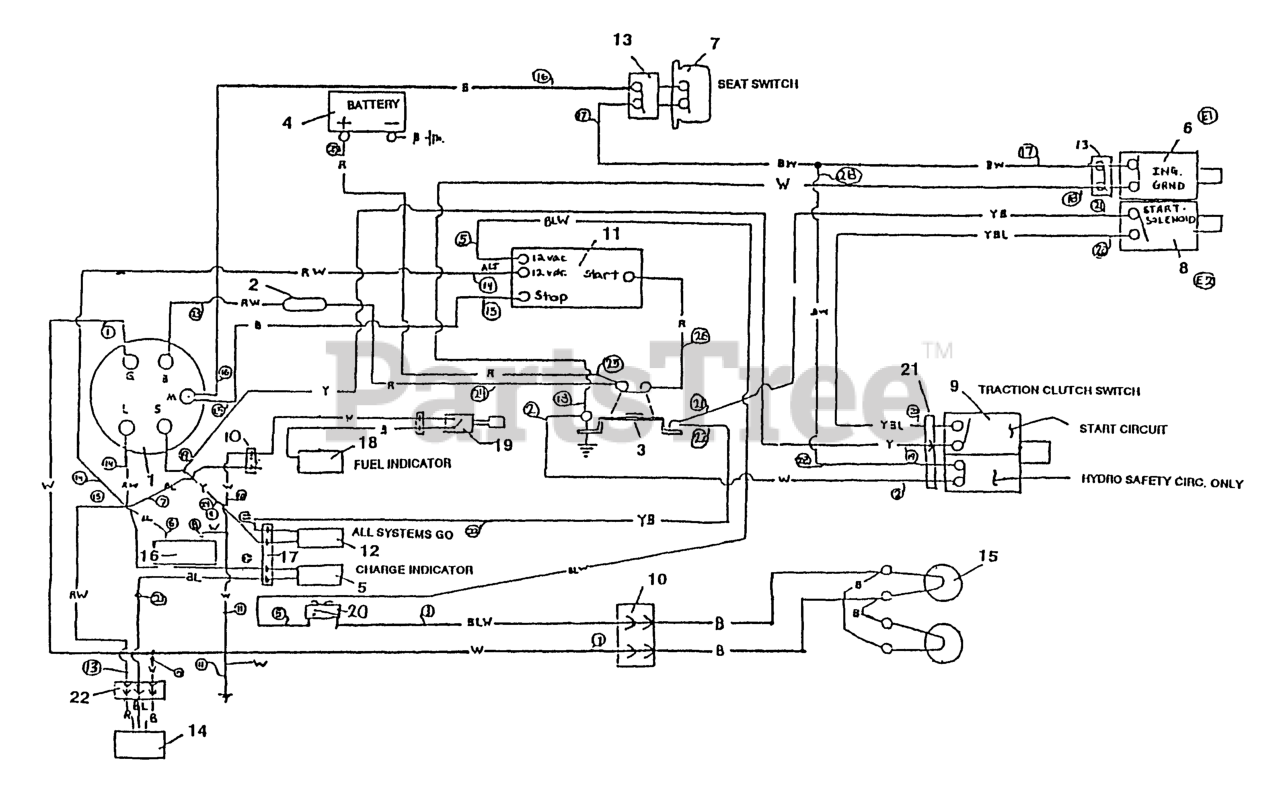

4125 G - Husqvarna 40" Lawn Tractor (1991-01) Electrical Schematic Parts Diagram

40" Lawn Tractor

Electrical Schematic Parts Diagram

  • Title

1

IGNITION SWITCH

$

$

Not available

2

FUSE, 15A

$

$

Not available

3

SOLENOID

$

$

Not available

4

BATTERY

$

$

Not available

5

ALTERNATOR LIGHT

$

$

Not available

6

DECK SWITCH (ign. grd, SAFETY CIRC.)

$

$

Not available

7

SEAT SWITCH (SAFETY CIRCUIT)

$

$

Not available

8

DECK SWITCH (START CIRCUIT)

$

$

Not available

9

CLUTCH SWITCH

$

$

Not available

10

PLUG-2 SOCKET

$

$

Not available

11

ENGINE

$

$

Not available

12

WARNING LIGHT, CLUTCH & MOWER

$

$

Not available

13

PLUG, SEAT SWITCH & DECK SWITCH

Note: SWITCH PLUG CLOSES CIRCUIT WHEN SWITCH IS UNPLUGGED

$

$

Not available

14

VOLTAGE DETECTOR

Note: IF SO EQUIPPED

$

$

Not available

15

HEADLIGHTS

$

$

Not available

16

HOUR METER

Note: IF SO EQUIPPED

$

$

Not available

17

PLUG-4 PIN LAMP HOLDER

$

$

Not available

18

WARNING LIGHT-FUEL LOW

Note: IF SO EQUIPPED

$

$

Not available

19

LOW FUEL SWITCH

Note: IF SO EQUIPPED

$

$

Not available

20

HEADLIGHT SWITCH

$

$

Not available

21

PLUG-CLUTCH SWITCH

$

$

Not available

22

PLUG-3 PIN (VOLTAGE DETECTOR)

$

$

Not available
