4125 G - Husqvarna 40" Lawn Tractor (1991-01) Rear End/Rear Steering Parts Diagram

40" Lawn Tractor

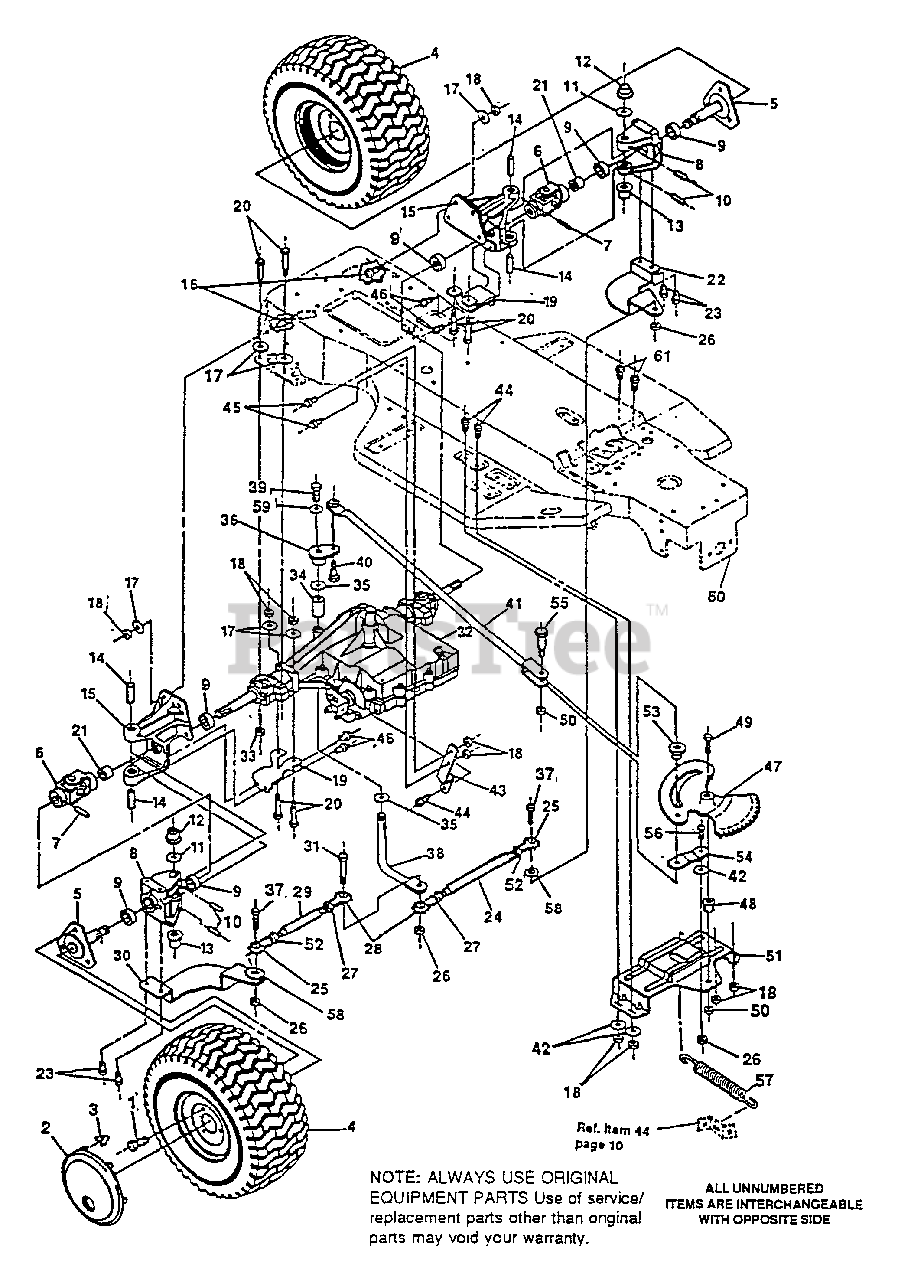

Rear End/Rear Steering Parts Diagram

  • Title

1

Husqvarna 123418

Screw, Hx Hd, 1/2-20 x 1/2 In.

$

$

Currently unavailable

2

Husqvarna 306570

Hubcap, 8 In.

$

$

Currently unavailable

3

Husqvarna 306669

Clip, Hubcap

$

$

Currently unavailable

4

Wheel & Tire Assembly, Rear

Note: Order Parts Individually

$

$

Not available

4

Husqvarna 58276

Tire, 20x10.0x8, Turf

$

$

Currently unavailable

4

Husqvarna 12467

Wheel

$

$

Currently unavailable

4

Husqvarna 24167

Valve Stem

$

$

Currently unavailable

5

Husqvarna 315480

Hub Assembly

$

$

Currently unavailable

6

Husqvarna 12290

U-Joint Assembly

$

$

Currently unavailable

7

Husqvarna 36311

Pin, Grooved, 1/4 x 1-1/2 In.

$

$

Currently unavailable

8

Husqvarna 12465

Bracket Assembly, Steering Pivot, Outer

$

$

Currently unavailable

9

Husqvarna 12325

Bearing

$

$

Currently unavailable

10

Husqvarna 456722

Pin, Spring, 1/4 x 1-1/2 In.

$

$

Currently unavailable

11

Husqvarna 21682

Washer, Flat

$

$

Currently unavailable

12

Husqvarna 12288

Bushing, Shouldered

$

$

Currently unavailable

13

Husqvarna 12321

Bushing, Shouldered

$

$

Currently unavailable

14

Husqvarna 12289

Pin, Steering Hinge

$

$

Currently unavailable

15

Husqvarna 12485

Bracket Assembly, Steering Pivot, Inner

$

$

Currently unavailable

16

Husqvarna 122017

Screw, Hx Hd, 5/16-18 x 1 In.

$

$

Currently unavailable

17

Husqvarna 120393

Washer, Flat, 11/32 In.

$

$

Currently unavailable

18

Husqvarna 1498

Nut, Hx, Ctrlk 5/16-18 Thd.

$

$

Currently unavailable

19

Husqvarna 306001

Bracket, Transaxle Mounting

$

$

Currently unavailable

20

Husqvarna 180089

Screw, Hx Hd, 5/16-18 x 2-1/4 In.
(Superseded to 532180089)

$11.99

$

Usually ships in 3-10 days

0

21

Husqvarna 304123

Spacer

$

$

Currently unavailable

22

Husqvarna 306218

Arm, Rear Wheel Steer, L.H.

$

$

Currently unavailable

23

Husqvarna 39728

Screw, Self-Tap, 3/8-16 x 3/4 In.

$

$

Currently unavailable

24

Husqvarna 308446

Tie Rod, L.H. (1/2"x9-1/2")

$

$

Currently unavailable

25

Husqvarna 308384

Tie Rod-End, L.H.

$

$

Currently unavailable

26

Husqvarna 412349

Nut, Hex, Ctrlk, 3/8-24 Thd.

$

$

Not available

27

Husqvarna 124925

Nut, Hex, Jam, 3/8-24 Thd.

$

$

Currently unavailable

28

Husqvarna 304260

Tie Rod End, R.H.

$

$

Currently unavailable

29

Husqvarna 308447

Tie Rod, 1/2 x 8" Long

$

$

Currently unavailable

30

Husqvarna 306217

Arm, Rear Wheel Steer, R.H.

$

$

Currently unavailable

31

Husqvarna 181646

Screw, Hx Hd, 3/8-24 x 1-3/4 In.

$

$

Currently unavailable

32

Transaxle

Note: Contact nearest dealer

$

$

Not available

33

Husqvarna 44108

Nut, Hx, Wd Fl, Lk 5/16-18 Thd.

$

$

Currently unavailable

34

Husqvarna 304115

Spacer

$

$

Currently unavailable

35

Husqvarna 25177

Washer, Flat, 49/64 In.

$

$

Currently unavailable

36

Husqvarna 308719

Steering Pivot

$

$

Currently unavailable

37

Husqvarna 181639

Screw, 3/8-24 x 1-1/4 In.

$

$

Currently unavailable

38

Husqvarna 308720

Shaft, Steering Pivot

$

$

Currently unavailable

39

Husqvarna 421051

Screw, 5/16-24 x 1 In.
(Superseded to 583384901)

$61.99

$

Usually ships in 3-10 days

0

40

Husqvarna 12319

Bolt, Shoulder, 3/8-24 Thd.

$

$

Currently unavailable

41

Husqvarna 302593

Rod Assembly, Rear Wheel Steer

$

$

Currently unavailable

42

Husqvarna 446363

Washer, Flat, 3/8 In.

$

$

Currently unavailable

43

Husqvarna 304127

Bracket, Transaxle Stabilizer

$

$

Currently unavailable

44

Husqvarna 35498

Screw, Hx Hd, Self-Tap, 5/16-18 x 3/4 In.

$

$

Currently unavailable

45

Husqvarna 180075

Screw, Hx Hd, 5/16-18 x 5/8 In.

$

$

Currently unavailable

46

Husqvarna 451814

Screw, Hx Hd, Self-Tap, 5/16-18 x 5/8 In.

$

$

Currently unavailable

47

Husqvarna 302877

Assembly, Sector Gear

$

$

Currently unavailable

48

Husqvarna 302878

Bushing, Sector Gear

$

$

Currently unavailable

49

Husqvarna 304296

Screw, Hx Hd, 1/2-20 x 2-3/8 In.

$

$

Currently unavailable

50

Husqvarna 274654

Nut, Hx, Ctrlk, 1/2-20 Thd.

$

$

Currently unavailable

51

Husqvarna 308341

Plate, 4-Wheel Steer Pivot

$

$

Currently unavailable

52

Husqvarna 308399

Nut, Jam, 3/8-24 Thd.

$

$

Currently unavailable

53

Husqvarna 304116

Cam Yoke Roller

$

$

Currently unavailable

54

Husqvarna 302594

Arm, Roller Swing

$

$

Currently unavailable

55

Husqvarna 304122

Shoulder Bolt, Cam Roller

$

$

Currently unavailable

56

Husqvarna 302588

Shoulder Bolt, Cam Follower Arm Pivot

$

$

Currently unavailable

57

Husqvarna 35410

Spring, Clutch/Brake Pedal Return

$

$

Currently unavailable

58

Husqvarna 120382

Washer, Split Lock

$

$

Currently unavailable

59

Husqvarna 45602

Washer, Flat

$

$

Currently unavailable

60

Husqvarna 315823

Main Frame

$

$

Currently unavailable

61

Husqvarna 35497

Screw, 5/16-18 x 1/2 In. Taptite

$

$

Currently unavailable
