4125 G - Husqvarna 40" Lawn Tractor (1992-01) Drive/Engine Parts Diagram

40" Lawn Tractor

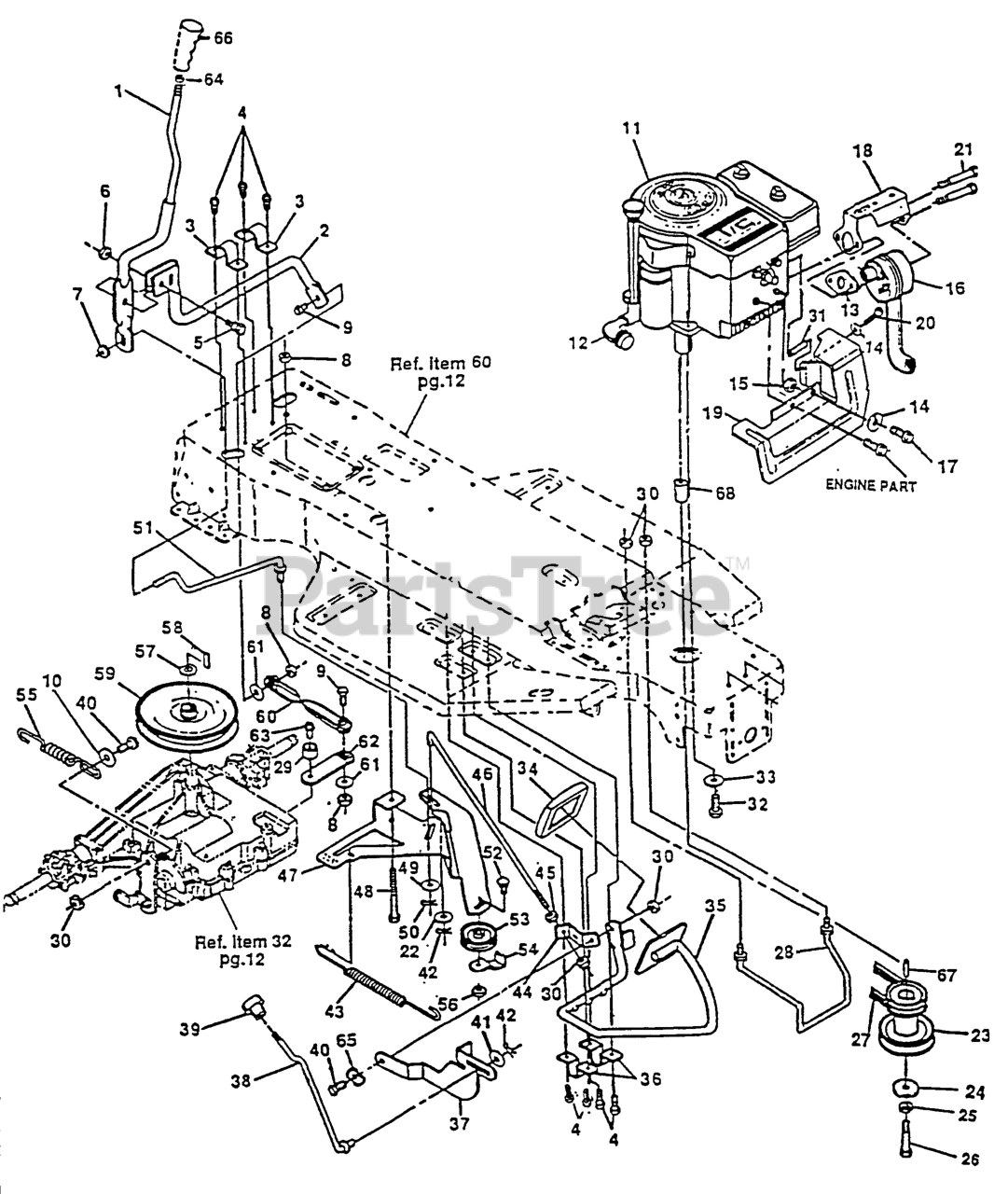

Drive/Engine Parts Diagram

  • Title

1

Husqvarna 601000698

PF TUBE ASSY-SHIFT PIVOT

$

$

Not available

2

Husqvarna 601000196

WF TUBE ASSY, SHIFT
(Superseded to 601000696)

$

$

Not available

3

Husqvarna 601000165

MF CLIP,SHIFT LEVER

$

$

Not available

4

Husqvarna 601000519

SCREW, 5/16-18X .50 WAHHT

$

$

Not available

5

Husqvarna 601000199

BOLT.375X.400 1/4-20X.47H

$

$

Not available

6

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$14.99

$

Usually ships in 3-10 days

0

7

Husqvarna 601000653

NUT, 3/8-16 HEXNYL

$

$

Not available

8

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

9

Husqvarna 601000033

SCREW, 3/8-16X1.25 HHC

$

$

Not available

10

Husqvarna 601000322

WASHER, FLAT .515X1.31X.

$

$

Not available

11

Engine 12.5 Horsepower B&S

$

$

Not available

12

Husqvarna 601000005

ELBOW,90 DEG STREET 3/8 T

$

$

Not available

13

Husqvarna 601000553

GASKET, MUFFLER

$

$

Not available

14

Husqvarna 601000014

WASHER, REGSPTLK.263X.49X

$

$

Not available

15

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

16

Husqvarna 601000389

MUFFLER, ROUND 12HP 5"DIA

$

$

Not available

17

Husqvarna 601000117

SCREW, 1/4-20X .88WAHHTAP

$

$

Not available

18

Husqvarna 601000261

SHIELD,MUFFLER B&S SQ. LO

$

$

Not available

19

Husqvarna 601000726

PF SHIELD, 12 HP 5" HEAT

$

$

Not available

20

Husqvarna 601000084

SCREW, 1/4-20X3.50 HHC

$

$

Not available

21

Husqvarna 601000260

BOLT, .437X4.34O HHSH5/16

$

$

Not available

22

Husqvarna 601000018

WASHER, FLAT .281X .63X.

$

$

Not available

23

Husqvarna 601000293

USE 313546
(Superseded to 601000448)

$

$

Not available

24

Husqvarna 601000613

WASHER,.980IDX1.38ODX.437

$

$

Not available

25

Husqvarna 601000016

WASHER, REGSPTLK.459X.78X

$

$

Not available

26

Husqvarna 601000538

SCREW, 7/16-20X5.00 HHC

$

$

Not available

27

Husqvarna 601000194

BELT, V 4L 90.00 LG

$

$

Not available

28

Husqvarna 601000376

GUIDE, BELT 820 TRANSAXLE

$

$

Not available

29

Husqvarna 601000622

WASHER,.750X.250 SP-TRANS

$

$

Not available

30

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

31

Husqvarna 601000390

SPACER HEAT SHIELD

$

$

Not available

32

Husqvarna 601000573

SCREW, 3/8-16X1.25 WAHHTA

$

$

Not available

33

Husqvarna 601000056

WASHER, EXLK .384X.69X

$

$

Not available

34

Husqvarna 601000154

USE 312710
(Superseded to 601000433)

$

$

Not available

35

Husqvarna 601000774

ASSEMBLY CLUTCH/BRAKE ARM

$

$

Not available

36

Husqvarna 601000442

MF BRACKET CL/BR ARM

$

$

Not available

37

Husqvarna 601000211

MF LEVER, PARK BRAKE

$

$

Not available

38

Husqvarna 601000214

ROD, PARKING BRAKE

$

$

Not available

39

Husqvarna 601000219

KNOB, PARK BRAKE B

$

$

Not available

40

Husqvarna 601000099

BOLT, .500X .375 HHSH 5/1

$

$

Not available

41

Husqvarna 601000017

WASHER, FLAT .250X .56X.

$

$

Not available

42

Husqvarna 601000026

PIN, COTTER .0625X.75LG

$

$

Not available

43

Husqvarna 601000212

SPRING, CLUTCH

$

$

Not available

44

Husqvarna 601000207

MF BRACKET, BRAKE ROD

$

$

Not available

45

Husqvarna 601000103

NUT, 5/16-18 HEXKEPS

$

$

Not available

46

Husqvarna 601000213

ROD, CLUTCH

$

$

Not available

47

Husqvarna 601000197

MF ARM IDLER

$

$

Not available

48

Husqvarna 601000574

BOLT, .500X1.280 HHSH 3/8

$

$

Not available

49

Husqvarna 601000106

WASHER, FLAT .406X .73X.

$

$

Not available

50

Husqvarna 601000523

PIN, HAIR .072 DIAX1.13LG

$

$

Not available

51

Husqvarna 601000198

ROD, SHIFT-ON-THE-GO

$

$

Not available

52

Husqvarna 601000627

BOLT, 3/8-16X2.00 CARR

$

$

Not available

53

Husqvarna 601000530

BACKSIDE IDLER SHEAVE

$

$

Not available

54

Husqvarna 601000201

MF BELT RETAINER

$

$

Not available

55

Husqvarna 601000209

SPRING,BRAKE 1.00ODX3.12X

$

$

Not available

56

Husqvarna 601000542

NUT, 3/8-16 HWDFL WHIZ-LO

$

$

Not available

57

Husqvarna 601000093

RING, RETEX .58X.04TRU510

$

$

Not available

58

Husqvarna 601000129

KEY, WDRF 606 .750X.187X.

$

$

Not available

59

Husqvarna 601000189

PULLEY, V4L 920TA

$

$

Not available

60

Husqvarna 601000359

LINK, TIE ROD SHIFT ASSY

$

$

Not available

61

Husqvarna 601000020

WASHER, FLAT .406X .81X.

$

$

Not available

62

Husqvarna 601000166

HF LEVER,TRANSAXLE SHIFT

$

$

Not available

63

Husqvarna 601000606

SCREW, 1/4-28X .75 NYLHHC

$

$

Not available

64

Husqvarna 601000013

NUT, 3/8-16 REGHX

$

$

Not available

65

Husqvarna 601000178

WASHER, WAVE .50 ID

$

$

Not available

66

Husqvarna 601000236

HANDLE, 3/8-16 MOLDED GRE

$

$

Not available

67

Husqvarna 601000635

KEY, SQUARE .250SQX5.00LG

$

$

Not available

68

Husqvarna 601000215

SPACER,1.01X1.484 ENGIN P

$

$

Not available
