4125 G - Husqvarna 40" Lawn Tractor (1992-01) Drive/Engine Parts Diagram

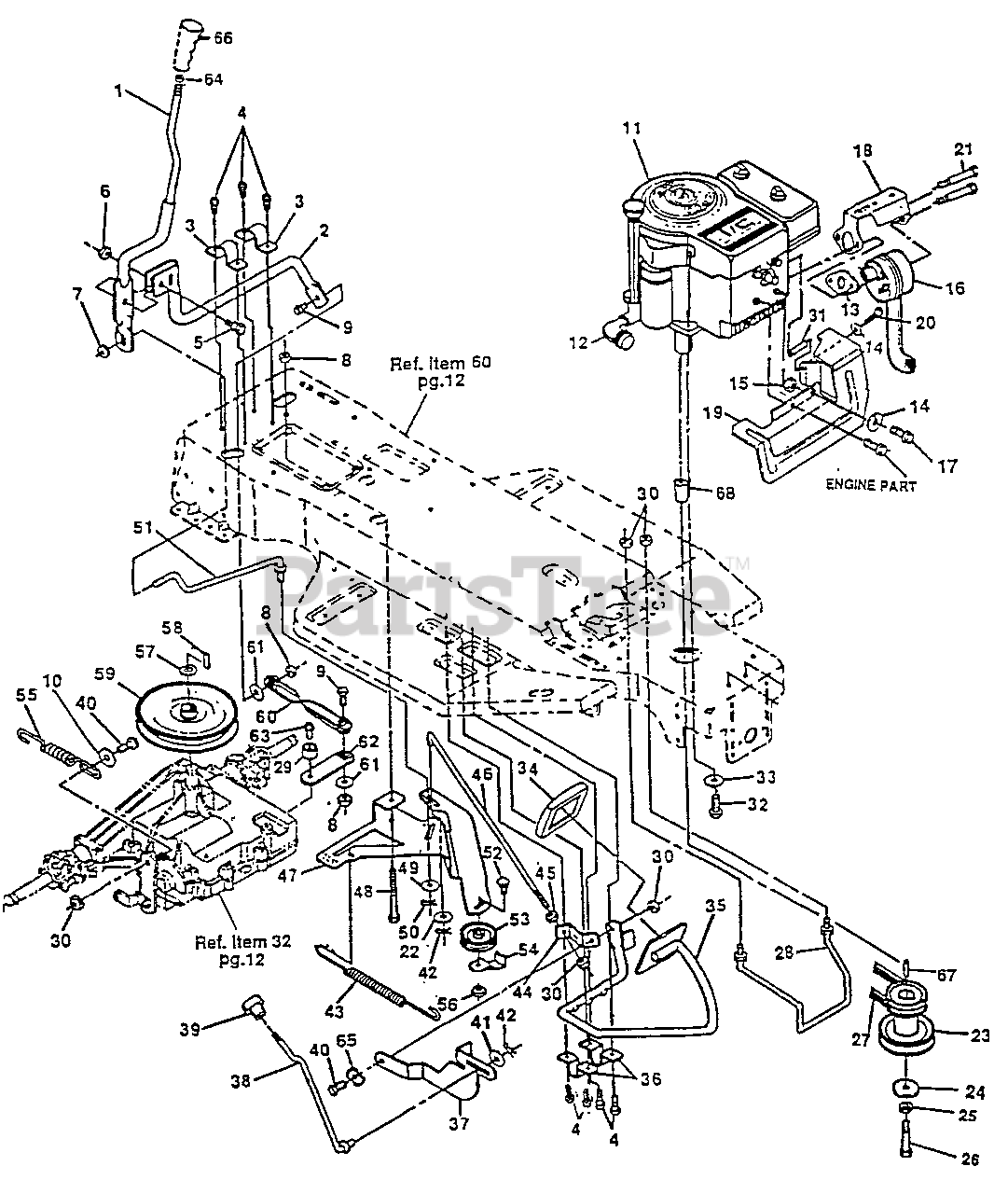

40" Lawn Tractor

Drive/Engine Parts Diagram

  • Title

1

Husqvarna 601000698

Tube Assembly, Shift Pivot

$

$

Not available

2

Husqvarna 601000196

Tube Assembly, Shift
(Superseded to 601000696)

$

$

Not available

3

Husqvarna 601000165

Clip, Shift Lever

$

$

Not available

4

Husqvarna 601000519

Screw, Hx Hd, Wshr Tap 5/16-18 x 1/2 In.

$

$

Not available

5

Husqvarna 601000199

Shoulder Bolt

$

$

Not available

6

Husqvarna 601000062

Nut, Hx, Ctrlk, 1/4-20 Thd.
(Superseded to 601002318)

$7.99

$

In Stock, only 2 left!

0

7

Husqvarna 601000653

Nut, Hx, Nylon, Lock 3/8-16 Thd.

$

$

Not available

8

Husqvarna 601000060

Nut, Hx, Ctrlk, 3/8-16 Thd.
(Superseded to 601002407)

$

$

Not available

9

Husqvarna 601000033

Screw, 3/8-16 x 1-1/4 In.

$

$

Not available

10

Husqvarna 601000322

Washer

$

$

Not available

11

Engine 12.5 Horsepower B&S

$

$

Not available

12

Husqvarna 601000005

Elbow, 90°, 3/8 In.

$

$

Not available

13

Husqvarna 601000553

Gasket, Muffler

$

$

Not available

14

Husqvarna 601000014

Washer, Split Lock

$

$

Not available

15

Husqvarna 601000012

Nut, Hex 5/16-18 Thd.

$

$

Not available

16

Husqvarna 601000389

Muffler, Round 5" Diameter

$

$

Not available

17

Husqvarna 601000117

Screw, Wa Tap, 1/4-20 x 7/8 In

$

$

Not available

18

Husqvarna 601000261

Shield, Muffler

$

$

Not available

19

Husqvarna 601000726

Heat Shield, Engine

$

$

Not available

20

Husqvarna 601000084

Screw, Hex Hd, 1/4-20 x 3-1/2 In.

$

$

Not available

21

Husqvarna 601000260

Bolt, Shoulder, 5/16-18 x 4-1/3 In.

$

$

Not available

22

Husqvarna 601000018

Flatwasher, .281 Idx.63 Od

$

$

Not available

23

Husqvarna 601000293

Pulley, Engine
(Superseded to 601000448)

$

$

Not available

24

Husqvarna 601000613

Washer, Pilot

$

$

Not available

25

Husqvarna 601000016

Washer, Split, Lock 7/8 In.

$

$

Not available

26

Husqvarna 601000538

Screw, Hx Hd, 7/16-20 X 5 In.

$

$

Not available

27

Husqvarna 601000194

V-Belt, 90 In. Long

$

$

Not available

28

Husqvarna 601000376

Belt Guide

$

$

Not available

29

Husqvarna 601000622

Washer, Special

$

$

Not available

30

Husqvarna 601000059

Nut, Hex, Ctrlk, 5/16-18 Thd.

$6.99

$

In Stock, only 2 left!

0

31

Husqvarna 601000390

Spacer, Heat Shield

$

$

Not available

32

Husqvarna 601000573

Screw, Hex Hd Tap, 3/8-16 x 1-1/4 In.

$

$

Not available

33

Husqvarna 601000056

Washer, 3/8 In.

$

$

Not available

34

Husqvarna 601000154

Pad, Clutch/Brake, Molded
(Superseded to 601000433)

$

$

Not available

35

Husqvarna 601000774

Assembly, Clutch/Brake Arm

$

$

Not available

36

Husqvarna 601000442

Bracket, Clutch/Brake Arm

$

$

Not available

37

Husqvarna 601000211

Lever, Park Brake

$

$

Not available

38

Husqvarna 601000214

Rod, Parking Brake

$

$

Not available

39

Husqvarna 601000219

Knob, Parking Brake

$

$

Not available

40

Husqvarna 601000099

Shoulder Bolt, 5/16-18 Thd.

$

$

Not available

41

Husqvarna 601000017

Washer, 9/16 In.

$

$

Not available

42

Husqvarna 601000026

Cotter Pin

$

$

Not available

43

Husqvarna 601000212

Spring, Clutch

$

$

Not available

44

Husqvarna 601000207

Bracket, Brake Rod

$

$

Not available

45

Husqvarna 601000103

Nut, Hx, Keps, 5/16-18 Thd.

$

$

Not available

46

Husqvarna 601000213

Rod, Clutch

$

$

Not available

47

Husqvarna 601000197

Arm, Idler

$

$

Not available

48

Husqvarna 601000574

Shoulder Bolt, 3/8-16 Thd.

$

$

Not available

49

Husqvarna 601000106

Washer, Flat, 13/32 In.

$

$

Not available

50

Husqvarna 601000523

Hairpin

$

$

Not available

51

Husqvarna 601000198

Rod, Shift-On-The-Go

$

$

Not available

52

Husqvarna 601000627

Carriage Bolt, 3/8-16 x 2 In.

$

$

Not available

53

Husqvarna 601000530

Idler Sheave, Backside

$

$

Not available

54

Husqvarna 601000201

Belt Retainer

$

$

Not available

55

Husqvarna 601000209

Spring, Brake

$

$

Not available

56

Husqvarna 601000542

Nut, Flange, 3/8-16 Thd,

$

$

Not available

57

Husqvarna 601000093

Retaining Ring

$

$

Not available

58

Husqvarna 601000129

Key, Woodruff, #606

$

$

Not available

59

Husqvarna 601000189

Pulley

$

$

Not available

60

Husqvarna 601000359

Shift Link

$

$

Not available

61

Husqvarna 601000020

Washer, Flat, 13/32 In.

$

$

Not available

62

Husqvarna 601000166

Shift Lever, Transaxle

$

$

Not available

63

Husqvarna 601000606

Screw, Hx Hd, 1/4-28 X 3/4 In.

$

$

Not available

64

Husqvarna 601000013

Nut, 3/8-16 Reg Hx

$

$

Not available

65

Husqvarna 601000178

Washer, Wave

$

$

Not available

66

Husqvarna 601000236

Handle, 3/8-16 Molded Grey

$

$

Not available

67

Husqvarna 601000635

Key, Square 1/4

$

$

Not available

68

Husqvarna 601000215

Spacer, Engine Pulley

$

$

Not available
