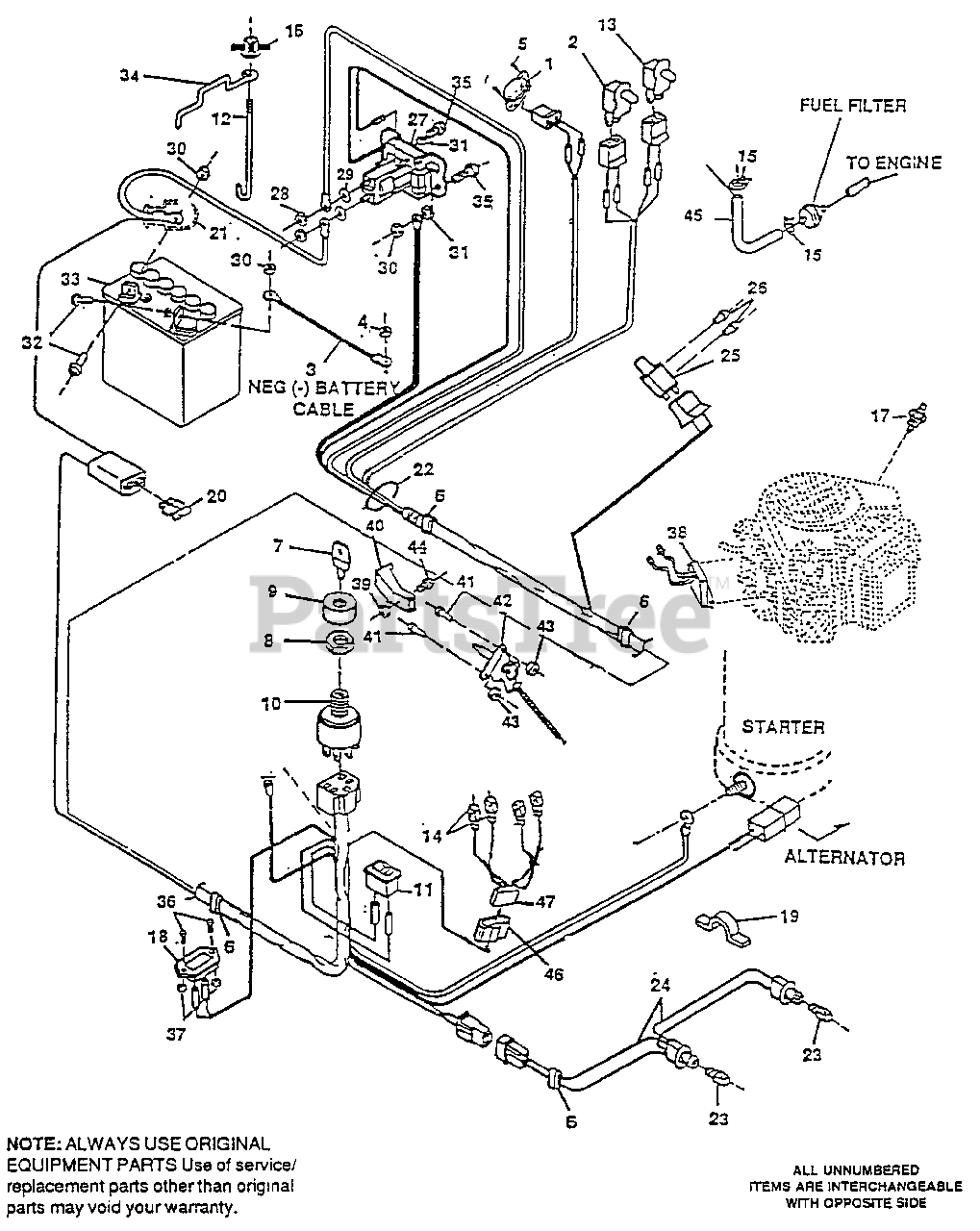

4125 G - Husqvarna 40" Lawn Tractor (1992-01) Electrical Parts Diagram

40" Lawn Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 601000629

Seat Switch

$

$

Not available

2

Husqvarna 601000321

Switch, Snap Mnt No. .140 Blue

$

$

Not available

3

Husqvarna 601000596

Cable, Battery, Negative

$

$

Not available

4

Husqvarna 601000130

Nut, Hx, Keps, 5/16-18 Thd.

$

$

Not available

5

Husqvarna 601000065

Screw, 1/4-20 x .38

$

$

Not available

6

Husqvarna 601000628

Tie Cable

$

$

Not available

7

Husqvarna 601000123

Key, Ignition Switch

$

$

Not available

8

Husqvarna 601000111

Nut, Switch

$

$

Not available

9

Husqvarna 601000112

Boot, Switch

$

$

Not available

10

Husqvarna 601000270

Switch, Ignition

$41.99

$

Usually ships in 3-10 days

0

11

Husqvarna 601000120

Switch, Light

$

$

Not available

12

Husqvarna 601000630

Rod, Battery Hold-Down

$

$

Not available

13

Husqvarna 601000051

Switch, Snap Mnt No. .140 Wh.

$

$

Not available

14

Husqvarna 601000633

Bulb, Indicator

$

$

Not available

15

Husqvarna 601000561

Clamp, Gas Line
(Superseded to 601000554)

$

$

Not available

16

Husqvarna 601000371

Wingnut

$

$

Not available

17

Husqvarna 601000462

Oil Sensor

$

$

Not available

18

Husqvarna 601000240

Minature Hour Meter

$

$

Not available

19

Husqvarna 601000534

Press Clip

$

$

Not available

20

Husqvarna 601000127

Fuse, 15A-32V, Spade Type

$

$

Not available

21

Husqvarna 601000323

Boot, Rubber (Battery Cable)

$

$

Not available

22

Husqvarna 601000788

Wire Harness

$

$

Not available

23

Husqvarna 601000589

Bulb Headlamp

$

$

Not available

24

Husqvarna 601000186

Assembly, Light Wire

$

$

Not available

25

Husqvarna 601000691

Switch

$

$

Not available

26

Husqvarna 601000626

Screw, Pn Hd, Tap #12 x 1/2 In.

$

$

Not available

27

Husqvarna 601000592

Solenoid

$

$

Not available

28

Husqvarna 601000009

Nut, Hx 5/16-24 Thd.

$

$

Not available

29

Husqvarna 601000055

Washer, Lock 5/16 In.

$

$

Not available

30

Husqvarna 601000102

Nut, Hx, Keps, 1/4-20 Thd.

$

$

Not available

31

Husqvarna 601000062

Nut, Hx, Ctrlk, 1/4-20 Thd.
(Superseded to 601002318)

$7.99

$

In Stock, only 2 left!

0

32

Husqvarna 601000024

Screw, 1/4-20 x 5/8 In.

$

$

Not available

33

Husqvarna 601000136

Battery

$

$

Not available

34

Husqvarna 601000182

Bracket, Battery Hold-Down

$

$

Not available

35

Husqvarna 601000083

Screw, 1/4-20 x 3/4 In.

$

$

Not available

36

Husqvarna 601000789

Screw, #6-32 x .50

$

$

Not available

37

Husqvarna 601000105

Nut, Hx Keps 6-32

$

$

Not available

38

Husqvarna 601000306

Regulator, Sen. Volt BS with Sensor

$

$

Not available

39

Husqvarna 601000022

Nut, Hex. #8-32 Thd.

$

$

Not available

40

Husqvarna 601000226

Knob, Throttle Control

$

$

Not available

41

Husqvarna 601000790

Screw #10-24 x 5/8

$

$

Not available

42

Husqvarna 601000481

Throttle Control

$

$

Not available

43

Husqvarna 601000337

Nut, Hex, Nylon Lock #8-32 x 3/8 In.

$

$

Not available

44

Husqvarna 601000063

Screw,Ph, Pn, #8-32 x 3/8 In.

$

$

Not available

45

Husqvarna 601000555

Gas Line

$

$

Not available

46

Husqvarna 601000791

Low Fuel Wire

$

$

Not available

47

Husqvarna 601000269

4-Pin Lamp Holder

$

$

Not available
