4125 G - Husqvarna 40" Lawn Tractor (1992-01) Electrical Parts Diagram

40" Lawn Tractor

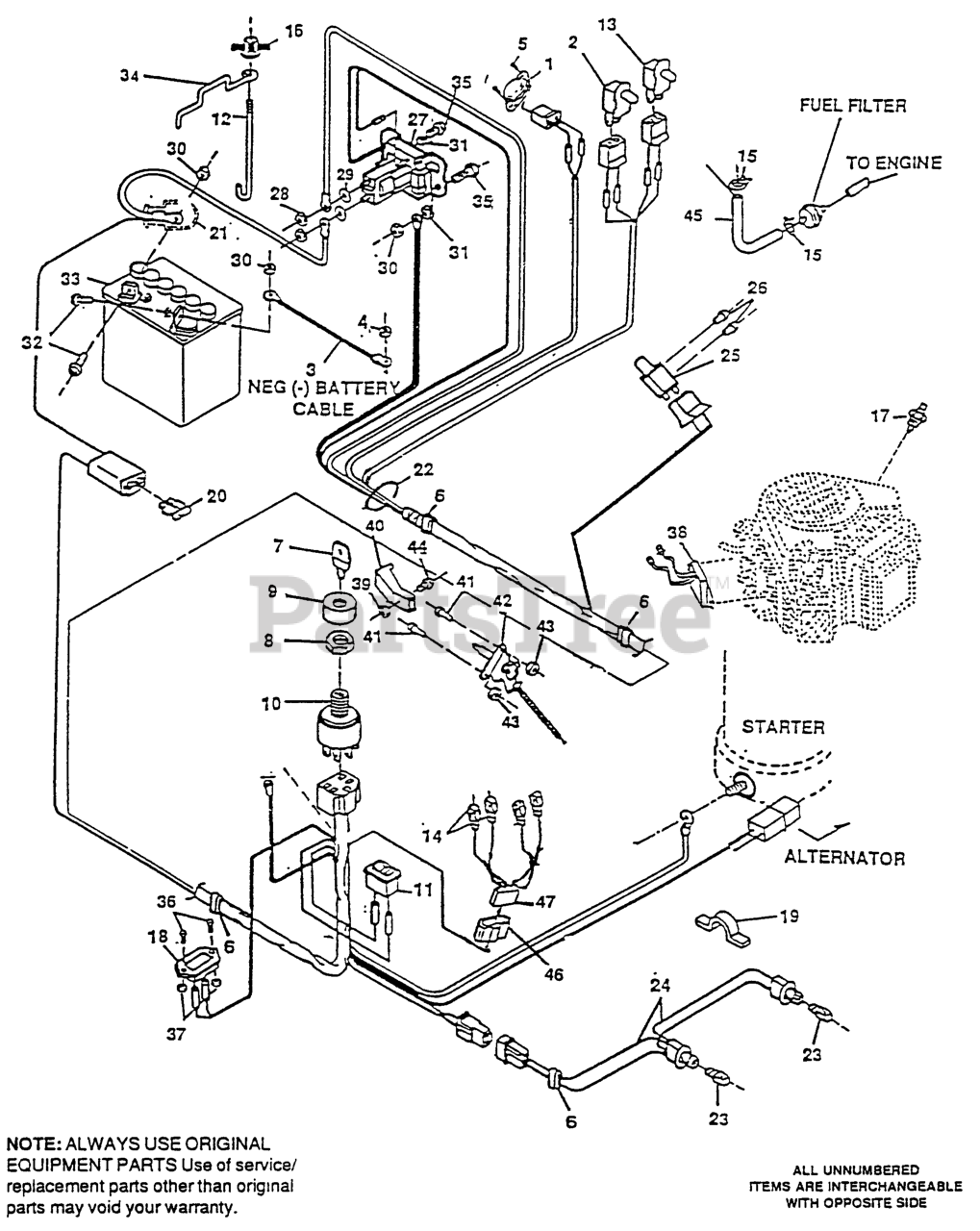

Electrical Parts Diagram

  • Title

1

Husqvarna 601000629

SWITCH,SEAT

$

$

Not available

2

Husqvarna 601000321

SWITCH, SNAP MNT NC .140

$

$

Not available

3

Husqvarna 601000596

WIRE, GROUND, 12.5"

$

$

Not available

4

Husqvarna 601000130

BF PULLEY ASSY, JACK SH B NLA

$

$

Not available

5

Husqvarna 601000065

SCREW, 1/4-20X .38PHPNHMA

$

$

Not available

6

Husqvarna 601000628

TIE,CABLE BLACK NYLON

$

$

Not available

7

Husqvarna 601000123

KEY, IGNITION SWITCH

$

$

Not available

8

Husqvarna 601000111

NUT, 5/8-32 IGN SWIT PLA

$

$

Not available

9

Husqvarna 601000112

BOOT,SWITCH

$

$

Not available

10

Husqvarna 601000270

SWITCH-IGN. 3 POSN

$

$

Not available

11

Husqvarna 601000120

LIGHT SWITCH ON/OFF PANEL

$

$

Not available

12

Husqvarna 601000630

ROD, BATTERY

$

$

Not available

13

Husqvarna 601000051

SWITCH,SNAP MNT NO .140 W

$

$

Not available

14

Husqvarna 601000633

BULB, INDICATOR

$

$

Not available

15

Husqvarna 601000561

CLAMP, FUEL LINE
(Superseded to 601000554)

$

$

Not available

16

Husqvarna 601000371

SMALL PLASTIC WING NUT 1/

$

$

Not available

17

Husqvarna 601000462

OIL SENSOR, B&S TWIN CYL.

$

$

Not available

18

Husqvarna 601000240

MINIATURE HOUR METER 4-40

$

$

Not available

19

Husqvarna 601000534

CLIP,1.380LG .255ID PRESS

$

$

Not available

20

Husqvarna 601000127

SPRING, TENSION

$

$

Not available

21

Husqvarna 601000323

BOOT

$

$

Not available

22

Husqvarna 601000788

Wire Harness

$

$

Not available

23

Husqvarna 601000589

BULB, HEADLAMP

$

$

Not available

24

Husqvarna 601000186

ASSY,LIGHT WIRE-1/4 TURN

$

$

Not available

25

Husqvarna 601000691

SAFETY SWITCH

$

$

Not available

26

Husqvarna 601000626

SCREW, #12 X .50 PHPNHTA

$

$

Not available

27

Husqvarna 601000592

SOLENOID, NEW CLUM

$

$

Not available

28

Husqvarna 601000009

NUT, 5/16-24 REGHEX

$

$

Not available

29

Husqvarna 601000055

WASHER, EXLK .320X.61X

$

$

Not available

30

Husqvarna 601000102

NUT, 1/4-20 REGHEXKEPS

$

$

Not available

31

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$14.99

$

Usually ships in 3-10 days

0

32

Husqvarna 601000024

SCREW, 1/4-20X .63 HHC

$

$

Not available

33

Husqvarna 601000136

BATTERY 12V 7 PLATE/ NLA

$

$

Not available

34

Husqvarna 601000182

ROD, BATTERY TOP .209DIA

$

$

Not available

35

Husqvarna 601000083

SCREW, 1/4-20X .75 HXSEMM

$

$

Not available

36

Husqvarna 601000789

SCREW #6-32X.50

$

$

Not available

37

Husqvarna 601000105

NUT, #6-32 HEXKEPS

$

$

Not available

38

Husqvarna 601000306

SENSOR, EURO LOW VOLTAGE

$

$

Not available

39

Husqvarna 601000022

NUT, #8-32 REGHX

$

$

Not available

40

Husqvarna 601000226

KNOB,THROTTLE CONT MOLDGR

$

$

Not available

41

Husqvarna 601000790

SCREW #10-24X5/8

$

$

Not available

42

Husqvarna 601000481

THROTTLE CONTROL

$

$

Not available

43

Husqvarna 601000337

NUT, #10-24 HXHDNYLK

$

$

Not available

44

Husqvarna 601000063

SCREW, #8-32X .38 PHPNMA

$

$

Not available

45

Husqvarna 601000555

GAS LINE .25ID BULK LEN

$

$

Not available

46

Husqvarna 601000791

LOW FUEL WIRE

$

$

Not available

47

Husqvarna 601000269

LAMP HOLDER 4-PIN

$

$

Not available
