4125 G - Husqvarna 40" Lawn Tractor (1992-01) Rear End/Rear Steering Parts Diagram

40" Lawn Tractor

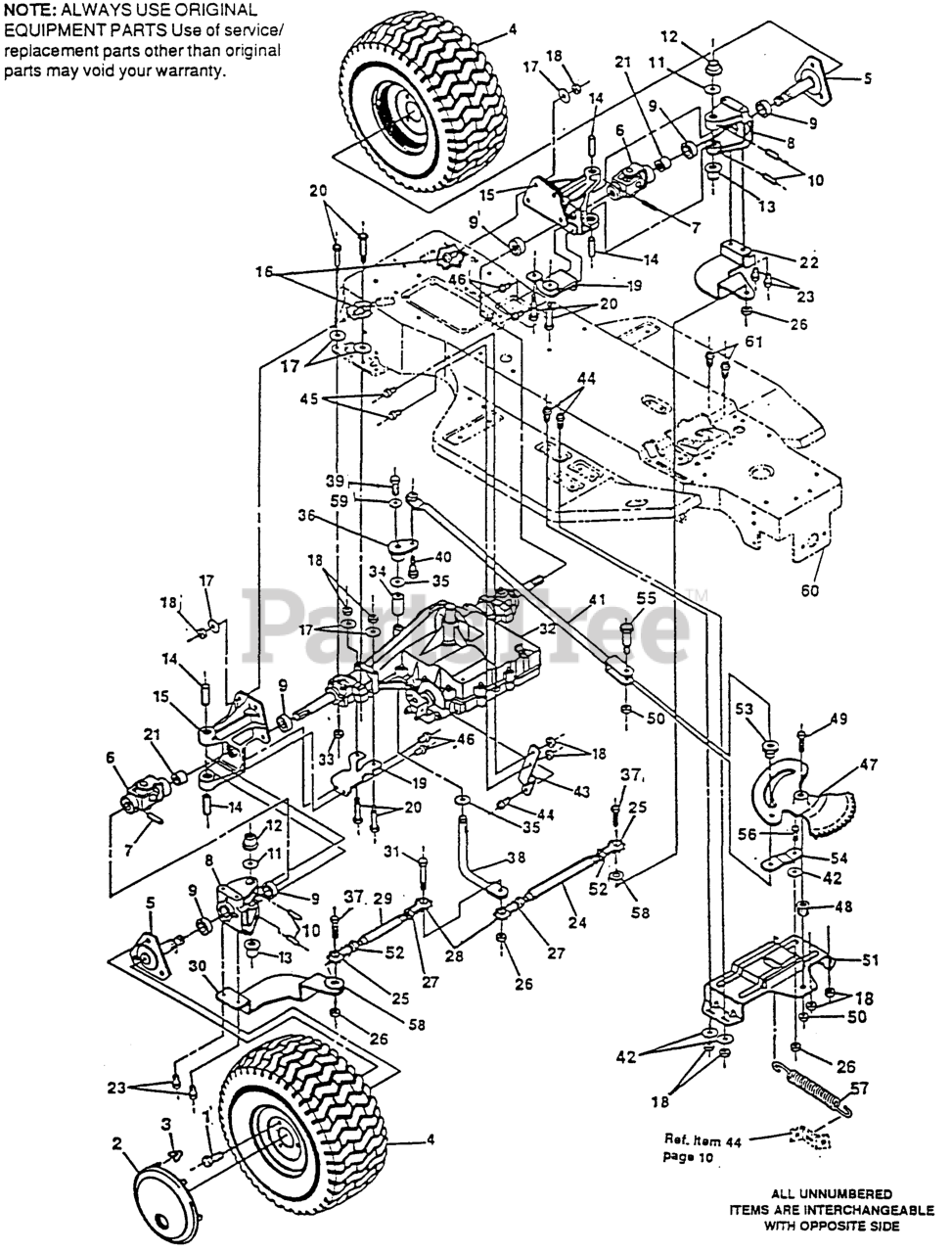

Rear End/Rear Steering Parts Diagram

  • Title

1

Husqvarna 601000044

SCREW, 1/2-20X .50 HHC

$

$

Not available

2

Husqvarna 601000291

8" HUBCAP ERO WHITE 869

$

$

Not available

3

Husqvarna 601000294

CLIP,HUBCAP TINN #C25467-

$

$

Not available

4

Wheel & Tire Assembly, Rear

Note: Order Individual Parts

$

$

Not available

4

Husqvarna 601000640

TIRE 20X10.00-8 "A"
(Superseded to 601000947)

$

$

Not available

4

Husqvarna 601000046

WHEEL

$

$

Not available

4

Husqvarna 601000096

VALVE STEM

$

$

Not available

5

Husqvarna 601000734

HUB ASSEMBLY

$

$

Not available

6

Husqvarna 601000775

U-Joint Assembly

$

$

Not available

7

Husqvarna 601000522

PIN, GROOVED .250 DIAX1.5

$

$

Not available

8

Husqvarna 760100004

Bracket Assembly, Steering Pivot, Outer

$

$

Currently unavailable

9

Husqvarna 601000043

BEARING

$

$

Not available

10

Husqvarna 601000550

PIN, SPRING.250DIAX1.50LG

$

$

Not available

11

Husqvarna 601000092

WASHER, FLAT .765X1.25X.0

$

$

Not available

12

Husqvarna 601000038

BUSHING, SHOULDERED (OILI

$

$

Not available

13

Husqvarna 601000042

BUSHING, SHOULDERED (OILI

$

$

Not available

14

Husqvarna 601000039

PIN, STEERING HINGE

$

$

Not available

15

Husqvarna 760100004

Bracket Assembly, Steering Pivot, Inner

$

$

Currently unavailable

16

Husqvarna 601000029

SCREW, 5/16-18X1.00 HHC

$

$

Not available

17

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$

$

Not available

18

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna 601000776

BRACKET TRANSAXLE MOUNTING

$

$

Not available

20

Husqvarna 601000777

SCREW 5/16-18X2.50 HHC GR5

$

$

Not available

21

Husqvarna 601000206

SPACER, AXLE 4WS

$

$

Not available

22

Husqvarna 601000710

PF ARM RW STR ERO LH BLACK

$

$

Not available

23

Husqvarna 601000778

Screw, 3/8-16x1.00 Wahhtap blk

$

$

Not available

24

Husqvarna 601000335

ROD, TIE 1/2"D X 9.5LG

$

$

Not available

25

Husqvarna 601000333

ROD,TIE END LH 3/8-24 EUR

$

$

Not available

26

Husqvarna 601000532

NUT, 3/8-24 HXCTRLK

$

$

Not available

27

Husqvarna 601000048

NUT, 3/8-24 REGHEXJAM

$

$

Not available

28

Husqvarna 601000217

ROD, TIE END RH

$

$

Not available

29

Husqvarna 601000336

ROD, TIE 1/2"D X 8.00LG

$

$

Not available

30

Husqvarna 601000709

PF ARM RW STR ERO RH BLACK

$

$

Not available

31

Husqvarna 601000082

SCREW, 3/8-24X1.75 HHC

$

$

Not available

Transaxle

Note: Contact Your Nearest Transaxle Dealer For Parts & Service

$

$

Not available

33

Husqvarna 601000540

NUT, 5/16-18 HWDFLCTRLK

$

$

Not available

34

Husqvarna 601000202

SPACER, STEERING SHAFT

$

$

Not available

35

Husqvarna 601000100

WASHER, FLAT .765X1.19X.

$

$

Not available

36

Husqvarna 601000339

SPACER

$

$

Not available

37

Husqvarna 601000081

SCREW, 3/8-24X1.25 HHC

$

$

Not available

38

Husqvarna 601000341

SHAFT, STEERING PIVOT

$

$

Not available

39

Husqvarna 601000536

SCREW, 5/16-24X1.00 HHC G

$

$

Not available

40

Husqvarna 601000041

BOLT, .562X .340 HHSH 3/8 NLA

$

$

Not available

41

Husqvarna 601000168

WF ROD R WHL STR 4 WS

$

$

Not available

42

Husqvarna 601000541

WASHER, FLAT .375X .88X.

$

$

Not available

43

Husqvarna 601000779

Bracket, Transaxle Stabilizer

$

$

Not available

44

Husqvarna 601000520

SCREW, 5/16-18X .75 WAHHT

$

$

Not available

45

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

46

Husqvarna 601000570

SCREW, 5/16-18X .88 WAHHT

$

$

Not available

47

Husqvarna 601000175

WF ASSY SECTOR GEAR 4WS

$

$

Not available

48

Husqvarna 601000176

BEARING,SLEEVE SECTOR GEA

$

$

Not available

49

Husqvarna 601000218

SCREW, 1/2-20X2.38 HHC

$

$

Not available

50

Husqvarna 601000107

NUT, 1/2-20 REGHXCTRLK

$

$

Not available

51

Husqvarna 601000718

PF PLATE-PIVOT STEERING

$

$

Not available

52

Husqvarna 601000334

NUT, 3/8-24 LH THD REGHJA

$

$

Not available

53

Husqvarna 601000203

CAM YOKE ROLLER

$

$

Not available

54

Husqvarna 601000169

MF ARM ROLLER SWING 4 W

$

$

Not available

55

Husqvarna 601000205

BOLT, SHOULDER CAM ROLLER

$

$

Not available

56

Husqvarna 601000167

SHOULD BOLT CAM FOLLOWER

$

$

Not available

57

Husqvarna 601000517

SPRING .071 X .62 X 4.37

$

$

Not available

58

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

59

Husqvarna 601000547

WASHER, FLAT .333X .87X.

$

$

Not available

60

Husqvarna 601000780

MAIN FRAME
(Superseded to 601000830)

$

$

Not available

61

Husqvarna 601000519

SCREW, 5/16-18X .50 WAHHT

$

$

Not available
