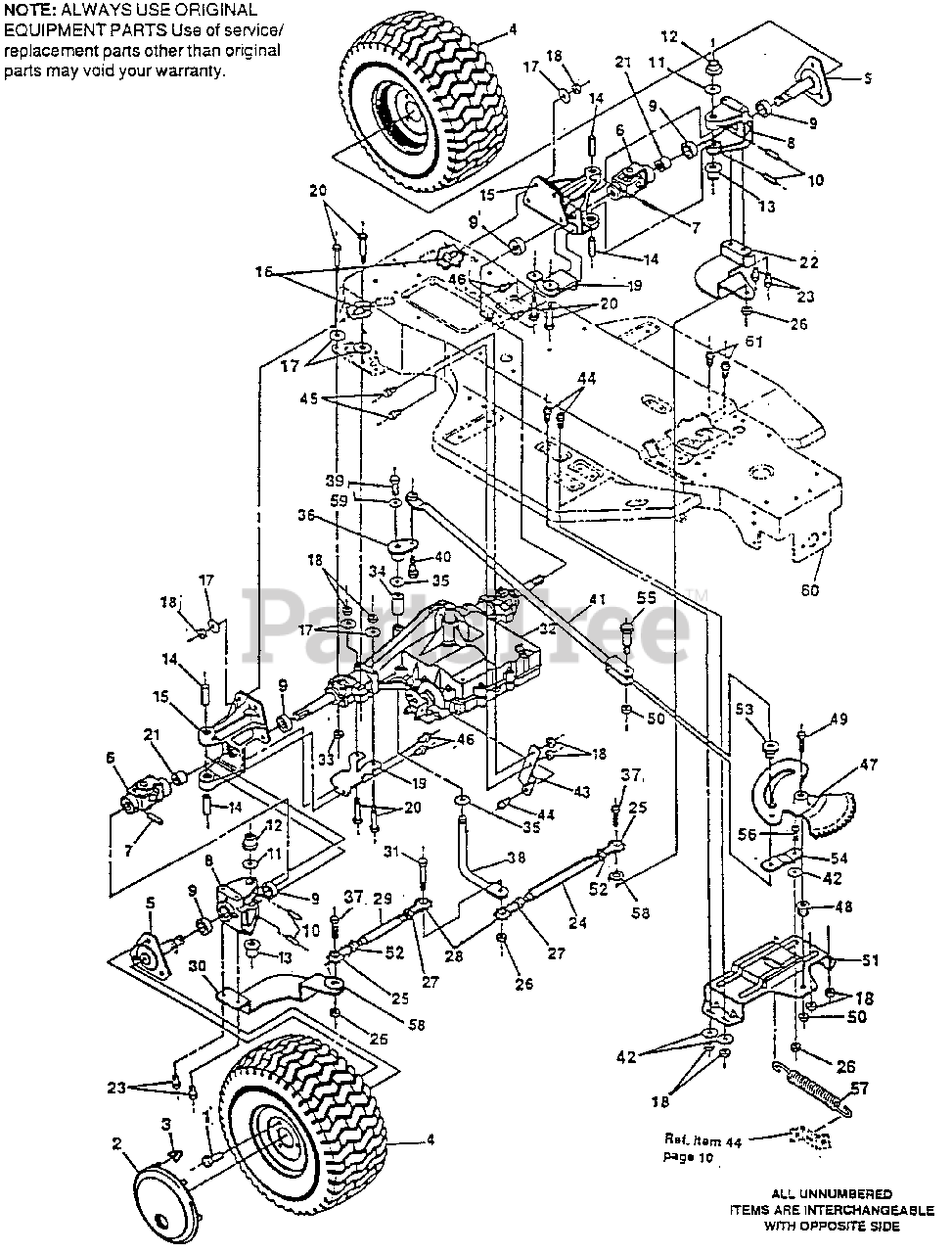

4125 G - Husqvarna 40" Lawn Tractor (1992-01) Rear End/Rear Steering Parts Diagram

40" Lawn Tractor

Rear End/Rear Steering Parts Diagram

  • Title

1

Husqvarna 601000044

Screw, Hx Hd, 1/2-20 x 1/2 In.

$

$

Not available

2

Husqvarna 601000291

Hubcap, 8 In.

$

$

Not available

3

Husqvarna 601000294

Clip, Hubcap

$

$

Not available

4

Wheel & Tire Assembly, Rear

Note: Order Individual Parts

$

$

Not available

4

Husqvarna 601000640

Tire, 20x10.0x8, Turf
(Superseded to 601000947)

$

$

Not available

4

Husqvarna 601000046

Wheel

$

$

Not available

4

Husqvarna 601000096

Valve Stem

$

$

Not available

5

Husqvarna 601000734

Hub Assembly

$

$

Not available

6

Husqvarna 601000775

U-Joint Assembly

$

$

Not available

7

Husqvarna 601000522

Pin, Grooved, 1/4 x 1-1/2 In.

$

$

Not available

8

Husqvarna 760100004

Bracket Assembly, Steering Pivot, Outer

$

$

Currently unavailable

9

Husqvarna 601000043

Bearing

$

$

Not available

10

Husqvarna 601000550

Pin, Spring, 1/4 x 1-1/2 In.

$

$

Not available

11

Husqvarna 601000092

Washer, Flat

$

$

Not available

12

Husqvarna 601000038

Bushing, Shouldered

$

$

Not available

13

Husqvarna 601000042

Bushing, Shouldered

$

$

Not available

14

Husqvarna 601000039

Pin, Steering Hinge

$

$

Not available

15

Husqvarna 760100004

Bracket Assembly, Steering Pivot, Inner

$

$

Currently unavailable

16

Husqvarna 601000029

Screw, Hx Hd, 5/16-18 x 1 In.

$

$

Not available

17

Husqvarna 601000019

Washer, Flat, 11/32 In.

$3.49

$

In Stock, only 1 left!

0

18

Husqvarna 601000059

Nut, Hx, Ctrlk 5/16-18 Thd.

$6.99

$

In Stock, only 2 left!

0

19

Husqvarna 601000776

Bracket, Transaxle Mounting

$

$

Not available

20

Husqvarna 601000777

Screw, 5/16-18x2.50 Hhc Gr5.

$

$

Not available

21

Husqvarna 601000206

Spacer

$

$

Not available

22

Husqvarna 601000710

Arm, Rear Wheel Steer, L.H.

$

$

Not available

23

Husqvarna 601000778

Screw, 3/8-16x1.00 Wahhtap blk

$

$

Not available

24

Husqvarna 601000335

Tie Rod, L.H. (1/2"x9-1/2")

$

$

Not available

25

Husqvarna 601000333

Tie Rod End, L.H.

$

$

Not available

26

Husqvarna 601000532

Nut, Hex, Ctrlk, 3/8-24 Thd.

$

$

Not available

27

Husqvarna 601000048

Nut, Hex, Jam, 3/8-24 Thd.

$

$

Not available

28

Husqvarna 601000217

Tie Rod End, R.H.

$

$

Not available

29

Husqvarna 601000336

Tie Rod , 1/2 x 8" Long

$

$

Not available

30

Husqvarna 601000709

Arm, Rear Wheel Steer, R.H.

$

$

Not available

31

Husqvarna 601000082

Screw, Hx Hd, 3/8-24 x 1-3/4 In.

$

$

Not available

Transaxle

Note: Contact Your Nearest Transaxle Dealer For Parts & Service

$

$

Not available

33

Husqvarna 601000540

Nut, Hx, Wd Fl, Lk 5/16-18 Thd

$

$

Not available

34

Husqvarna 601000202

Spacer

$

$

Not available

35

Husqvarna 601000100

Washer, Flat, 49/64 In.

$

$

Not available

36

Husqvarna 601000339

Steering Pivot

$

$

Not available

37

Husqvarna 601000081

Screw, 3/8-24 x 1-1/4 In.

$

$

Not available

38

Husqvarna 601000341

Shaft, Steering Pivot

$

$

Not available

39

Husqvarna 601000536

Screw, 5/16-24 x 1 In.

$

$

Not available

40

Husqvarna 601000041

Bolt, Shoulder, 3/8-24 Thd.

$

$

Not available

41

Husqvarna 601000168

Rod Assembly, Rear Wheel Steer

$

$

Not available

42

Husqvarna 601000541

Washer, Flat, 3/8 In.

$

$

Not available

43

Husqvarna 601000779

Bracket, Transaxle Stabilizer

$

$

Not available

44

Husqvarna 601000520

Screw, Hx Hd, Self-Tap, 5/16-18 x 3/4 In.

$

$

Not available

45

Husqvarna 601000060

Screw, 5/16-18x.63 Hhc Gr2
(Superseded to 601002407)

$

$

Not available

46

Husqvarna 601000570

Screw, 5/16-18X.88 Wahhtap

$

$

Not available

47

Husqvarna 601000175

Assembly, Sector Gear

$

$

Not available

48

Husqvarna 601000176

Bushing, Sector Gear

$

$

Not available

49

Husqvarna 601000218

Screw, Hx Hd, 1/2-20 x 2-3/8 In.

$

$

Not available

50

Husqvarna 601000107

Nut, Hx, Ctrlk, 1/2-20 Thd

$

$

Not available

51

Husqvarna 601000718

Plate, 4-Wheel Steer Pivot

$

$

Not available

52

Husqvarna 601000334

Nut, Jam, 3/8-24 Thd.

$

$

Not available

53

Husqvarna 601000203

Cam Yoke Roller

$

$

Not available

54

Husqvarna 601000169

Arm, Roller Swing

$

$

Not available

55

Husqvarna 601000205

Shoulder Bolt, Cam Roller

$

$

Not available

56

Husqvarna 601000167

Shoulder Bolt, Cam Follower Arm Pivot

$

$

Not available

57

Husqvarna 601000517

Spring, Clutch/Brake Pedal Return

$

$

Not available

58

Husqvarna 601000015

Washer, Split Lock

$

$

Not available

59

Husqvarna 601000547

Washer, Flat

$

$

Not available

60

Husqvarna 601000780

Main Frame
(Superseded to 601000830)

$

$

Not available

61

Husqvarna 601000519

Screw, 5/16-18 x 1/2 In. Taptite

$

$

Not available
