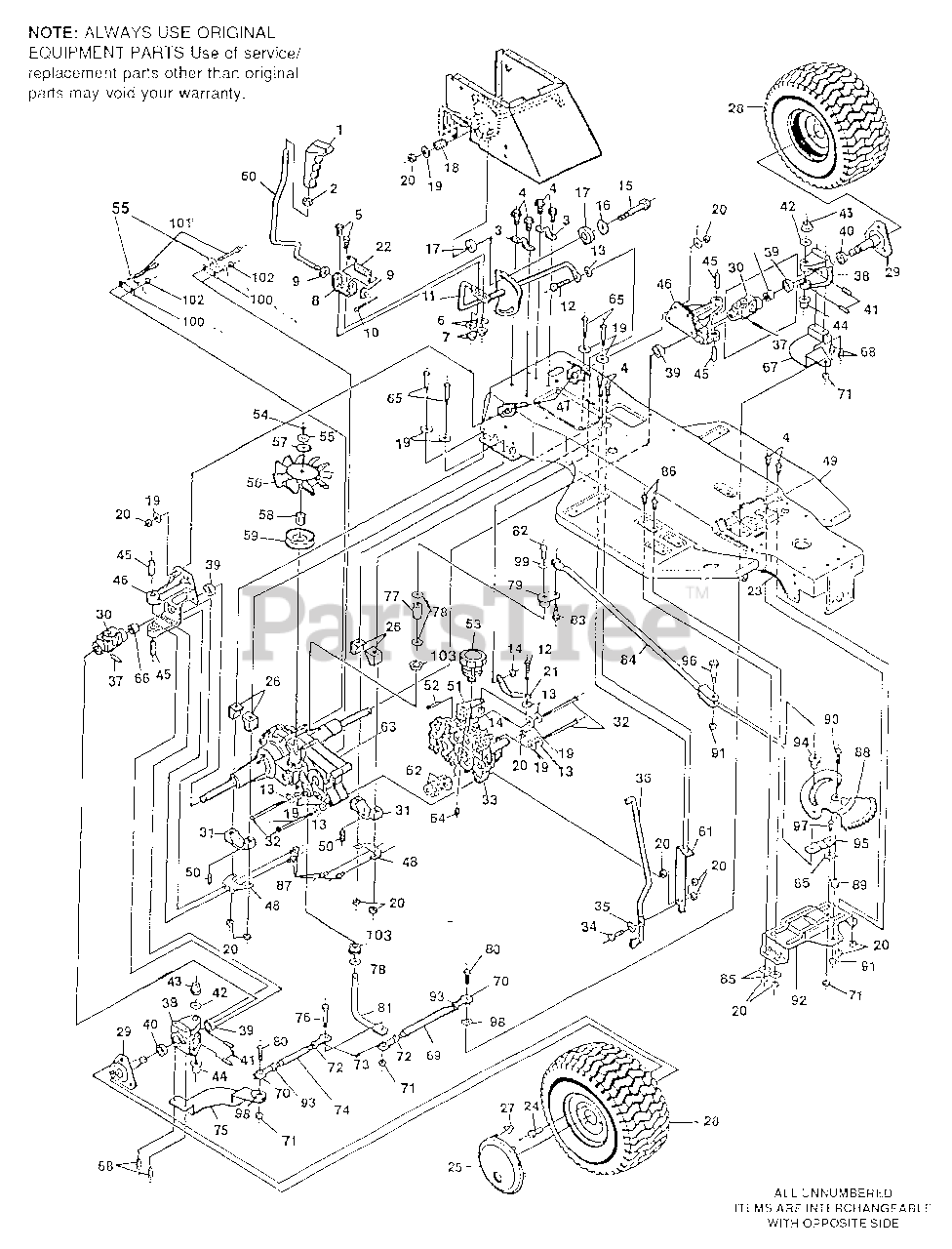

4125 H - Husqvarna 40" Lawn Tractor (1991-01) Rear End/Rear Steering Parts Diagram

40" Lawn Tractor

Rear End/Rear Steering Parts Diagram

  • Title

1

Husqvarna 304729

Handle, Deck Engage Lever

$

$

Currently unavailable

2

Husqvarna 120238

Nut, 1/4-13

$

$

Currently unavailable

3

Husqvarna 313271

Bracket, Clutch/Brake Arm

$

$

Currently unavailable

4

Husqvarna 35497

Screw, 5/16-18 x 1/2 In.

$

$

Currently unavailable

5

Husqvarna 180018

Screw, 1/4-20 x .62 In.

$

$

Not available

6

Husqvarna 120392

Flatwasher

$

$

Currently unavailable

7

Husqvarna 51335

Nut, 1/4-20

$

$

Currently unavailable

8

Husqvarna 310356

Bracket, Shift

$

$

Currently unavailable

9

Husqvarna 71073

Washer, Flat

$

$

Currently unavailable

10

Husqvarna 121222

Pin, Cotter

$

$

Currently unavailable

11

Husqvarna 310806

Shift Rod Assembly

$

$

Currently unavailable

12

Husqvarna 122145

Screw, 3/8-16 x 1-1/4 In.

$

$

Currently unavailable

13

Husqvarna 120638

Washer

$

$

Currently unavailable

14

Husqvarna 1499

Nut, 3/8-16 Thd.

$

$

Currently unavailable

15

Husqvarna 122065

Screw, 5/16-18 x 2 In.

$

$

Currently unavailable

16

Husqvarna 845

Washer, Flat

$

$

Currently unavailable

17

Husqvarna 49922

Washer, Friction

$

$

Currently unavailable

18

Husqvarna 29170

Spring

$

$

Currently unavailable

19

Husqvarna 120393

Washer, Flat

$

$

Currently unavailable

20

Husqvarna 1498

Nut, 5/16-18 Thd.

$

$

Currently unavailable

21

Husqvarna 310204

Shift Link

$

$

Currently unavailable

22

Husqvarna 310336

Spring, Torsion

$

$

Currently unavailable

23

Husqvarna 47453

Trim

$

$

Currently unavailable

24

Husqvarna 123418

Screw, Hx Hd, 1/2-20 x 1/2 In.

$

$

Currently unavailable

25

Husqvarna 306570

Hubcap, 8 In.

$

$

Currently unavailable

26

Husqvarna 310813

Mounting Block

$

$

Currently unavailable

27

Husqvarna 306669

Clip, Hubcap

$

$

Currently unavailable

28

Tire

Note: Order Parts Individually

$

$

Not available

28

Husqvarna 58276

Wheel

$

$

Currently unavailable

28

Husqvarna 24167

Valve System

$

$

Currently unavailable

29

Husqvarna 315264

Hub Assembly

$

$

Currently unavailable

30

Husqvarna 12290

U-Joint Assembly

$

$

Currently unavailable

31

Husqvarna 310187

Mounting Block

$

$

Currently unavailable

32

Husqvarna 189299

Screw, 5/16-18 x 4-1/2 In.

$

$

Currently unavailable

33

Husqvarna 310227

Hydrostatic Pump

$

$

Currently unavailable

34

Husqvarna 310088

Shoulder Bolt, 5/16-18 Thd.

$

$

Currently unavailable

35

Husqvarna 2483

Washer

$

$

Currently unavailable

36

Husqvarna 310261

Rod- Relief Valve

$

$

Currently unavailable

37

Husqvarna 36311

Pin, Grooved, 1/4 x 1 1/2 In.

$

$

Currently unavailable

38

Husqvarna 315267

Bracket, Steering Pivot, Outer

$

$

Currently unavailable

39

Husqvarna 12325

Bearing

$

$

Currently unavailable

40

Husqvarna 315268

Bearing

$

$

Currently unavailable

41

Husqvarna 456722

Pin, Spring 1/4 x 1 1/2 In.

$

$

Currently unavailable

42

Husqvarna 21682

Washer, Flat

$

$

Currently unavailable

43

Husqvarna 12288

Bushing, Shouldered

$

$

Currently unavailable

44

Husqvarna 12321

Bushing, Shouldered

$

$

Currently unavailable

45

Husqvarna 12289

Pin, Steering Hinge

$

$

Currently unavailable

46

Husqvarna 12485

Bracket, Steering Pivot, Inner

$

$

Currently unavailable

47

Husqvarna 122017

Screw, Hx Hd , 5/16-18 x 1 In.

$

$

Currently unavailable

48

Husqvarna 313644

Bracket, Transaxle Mounting

$

$

Currently unavailable

49

Husqvarna 315823

Main Frame

$

$

Currently unavailable

50

Husqvarna 140880

Screw, #10-32 x 1/4 In.

$

$

Not available

51

Husqvarna 310180

Armspeed Control

$

$

Currently unavailable

52

Husqvarna 456652

Pin, Spring

$

$

Currently unavailable

53

Husqvarna 310786

Reservoir, Hydro

$

$

Currently unavailable

54

Husqvarna 180016

Screw, 1/4-20 x 1/2 In.

$

$

Currently unavailable

55

Husqvarna 120380

Washer, Split Lock

$

$

Currently unavailable

56

Husqvarna 308523

Fan

$

$

Currently unavailable

57

Husqvarna 57626

Washer, Flat

$

$

Currently unavailable

58

Husqvarna 310094

Nut, Pulley 1/2-20 and 1/4-20

$

$

Currently unavailable

59

Husqvarna 310098

Pulley, Assy. Hydro

$

$

Currently unavailable

60

Husqvarna 310264

Shift Rod

$

$

Currently unavailable

61

Husqvarna 310179

Stabilizer Bracket

$

$

Currently unavailable

62

Coupling

Note: (Not a service part)

$

$

Not available

63

Transaxle Contact nearest dealer

$

$

Not available

64

Husqvarna 102570

Set Screw

$

$

Currently unavailable

65

Husqvarna 180112

Screw, 5/16-18 x 2.75 In.

$

$

Currently unavailable

66

Husqvarna 304123

Spacer

$

$

Currently unavailable

67

Husqvarna 306218

Arm, Rear Wheel Steer, L. H.

$

$

Currently unavailable

68

Husqvarna 39728

Screw, Self-Tap 3/8-16 x 3/4 In.

$

$

Currently unavailable

69

Husqvarna 313642

Tie Rod, L.H.

$

$

Currently unavailable

70

Husqvarna 308384

Tie Rod End, L. H.

$

$

Currently unavailable

71

Husqvarna 412349

Nut, Hex, Ctrlk, 3/8-24

$

$

Not available

72

Husqvarna 124925

Nut, Hex Jam, 3/8-24

$

$

Currently unavailable

73

Husqvarna 304260

Rod End

$

$

Currently unavailable

74

Husqvarna 313643

Tie Rod End, R. H.

$

$

Currently unavailable

75

Husqvarna 306217

Arm, Rear Wheel Steer, R. H.

$

$

Currently unavailable

76

Husqvarna 181646

Screw, 3/8-24 x 1 3/4 In.

$

$

Currently unavailable

77

Husqvarna 313641

Spacer

$

$

Currently unavailable

78

Husqvarna 25177

Washer, Lat 49/64 In.

$

$

Currently unavailable

79

Husqvarna 308719

Steering Pivot

$

$

Currently unavailable

80

Husqvarna 181639

Screw, 3/8-24 x 1 1/4 In.

$

$

Currently unavailable

81

Husqvarna 313649

Shaft, Steering Pivot

$

$

Currently unavailable

82

Husqvarna 421051

Screw 5/16-24 x 1 In.
(Superseded to 583384901)

$61.99

$

Usually ships in 3-10 days

0

83

Husqvarna 12319

Bolt, Shoulder 3/8-24

$

$

Currently unavailable

84

Husqvarna 313639

Rod Assembly, Rear Wheel Steer

$

$

Currently unavailable

85

Husqvarna 446363

Washer, Flat 3/8 In.

$

$

Currently unavailable

86

Husqvarna 35498

Screw, Self-Tap 5/16-18 x 3/8 In.

$

$

Currently unavailable

87

Husqvarna 451814

Screw, Self-Tap 5/16-18 x 5/8 In.

$

$

Currently unavailable

88

Husqvarna 302877

Assembly Sector Gear

$

$

Currently unavailable

89

Husqvarna 302878

Bushing, Sector Gear

$

$

Currently unavailable

90

Husqvarna 304296

Screw, 1/2-20 x 2 3/8 In.

$

$

Currently unavailable

91

Husqvarna 274654

Nut, Hx, Ctrlk 1/2-20

$

$

Currently unavailable

92

Husqvarna 308341

Plate, 4-Wheel Steer Pivot

$

$

Currently unavailable

93

Husqvarna 308399

Nut, Jam 3/8-24

$

$

Currently unavailable

94

Husqvarna 304116

Cam Yoke Roller

$

$

Currently unavailable

95

Husqvarna 302594

Arm, Roller Swing

$

$

Currently unavailable

96

Husqvarna 304122

Shoulder Bolt, Cam Roller

$

$

Currently unavailable

97

Husqvarna 302588

Shoulder Bolt, Cam Follower Arm Pivot

$

$

Currently unavailable

98

Husqvarna 120382

Washer, Split Lock

$

$

Currently unavailable

99

Husqvarna 45602

Washer Flat

$

$

Currently unavailable

100

Husqvarna 314511

Bracket, Rear Pivot

$

$

Currently unavailable

101

Husqvarna 180020

Screw 1/4-20 x .75 In
(Superseded to 583098101)

$141.99

$

Usually ships in 3-10 days

0

102

Husqvarna 120375

Nut 1/4-20

$

$

Currently unavailable

103

Husqvarna 302303

Bearing Spindle

$

$

Currently unavailable
