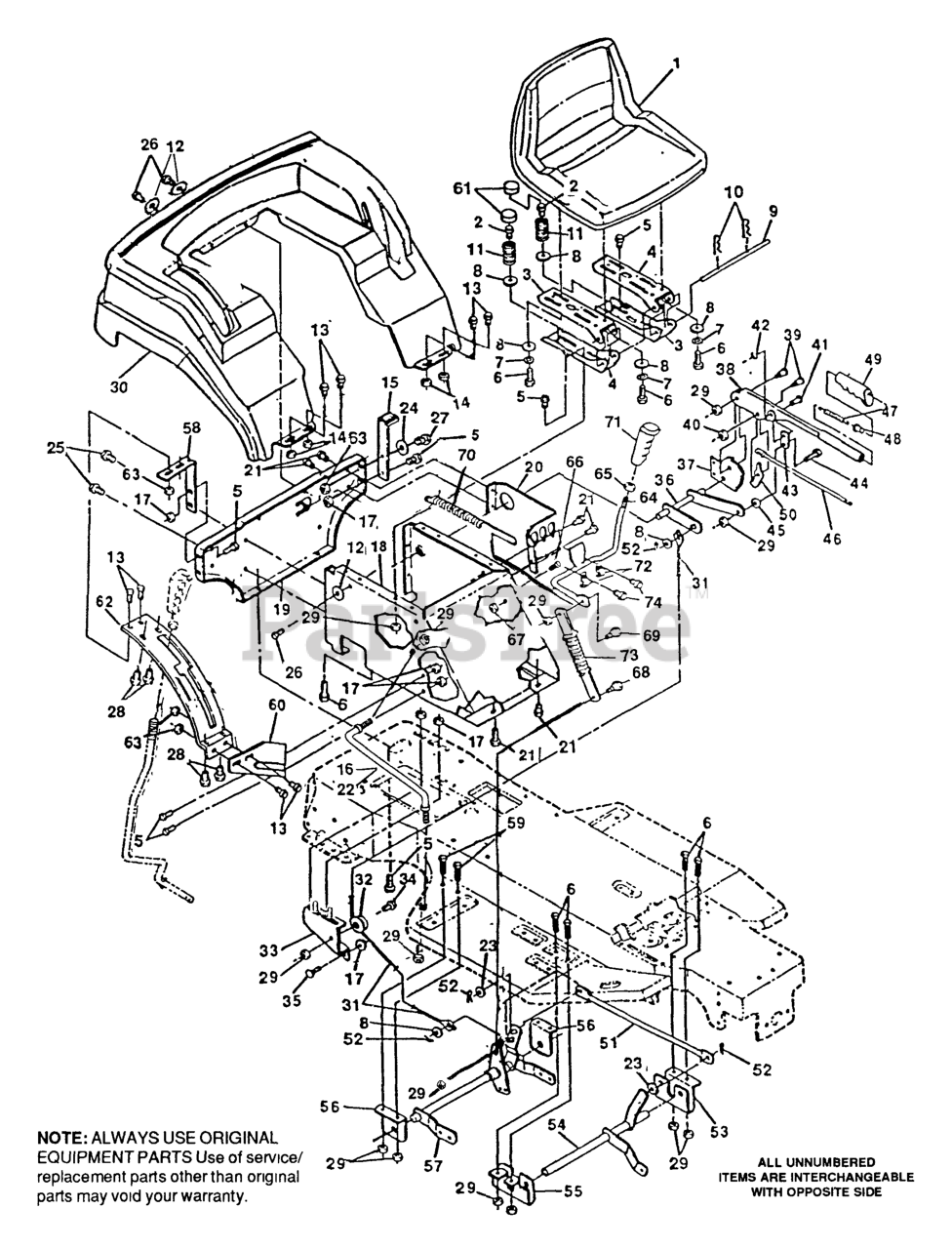

4125 H - Husqvarna 40" Lawn Tractor (1992-01) Chassis/Seat Parts Diagram

40" Lawn Tractor

Chassis/Seat Parts Diagram

  • Title

1

Husqvarna 601000395

SEAT M-550 G/B 3X6.7 W/ S

$

$

Not available

2

Husqvarna 601000543

SCREW, 5/16-18X .63HWATAP

$

$

Not available

3

Husqvarna 601000707

PF CHANNEL-SEAT LH GREY

$

$

Not available

4

Husqvarna 601000804

Channel, Seat R.H.

$

$

Not available

5

Husqvarna 601000597

SCREW, 5/16-18X.75WDFLLK

$

$

Not available

6

Husqvarna 601000028

SCREW, 5/16-18X .75 HHC

$

$

Not available

7

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

8

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$

$

Not available

9

Husqvarna 601000232

LF ROD, SEAT SUPPORT

$

$

Not available

10

Husqvarna 601000523

PIN, HAIR .072 DIAX1.13LG

$

$

Not available

11

Husqvarna 601000262

SPRING, SEAT

$

$

Not available

12

Husqvarna 601000003

WASHER, FLAT .281X1.00X.

$

$

Not available

13

Husqvarna 601000067

SCREW, 1/4-20X .62 HHC

$

$

Not available

14

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$14.99

$

Usually ships in 3-10 days

0

15

Husqvarna 601000257

USE 306397
(Superseded to 601000287)

$

$

Not available

16

Husqvarna 601000805

Support, LH footrest stiffener

$

$

Not available

17

Husqvarna 601000595

NUT, 5/16-18 HXWDFLLK
(Superseded to 601000867)

$

$

Not available

18

Husqvarna 601000806

SEAT SUPPORT

$

$

Not available

19

Husqvarna 601000807

SUPPORT FENDER & SEAT

$

$

Not available

20

Husqvarna 601000134

MS BRACKET, SUPPORT ENGAG

$

$

Not available

21

Husqvarna 601000519

SCREW, 5/16-18X .50 WAHHT

$

$

Not available

22

Husqvarna 601000808

Support, LH footrest stiffener

$

$

Not available

23

Husqvarna 601000106

WASHER, FLAT .406X .73X.

$

$

Not available

24

Husqvarna 601000017

WASHER, FLAT .250X .56X.

$

$

Not available

25

Husqvarna 601000570

SCREW, 5/16-18X .88 WAHHT

$

$

Not available

26

Husqvarna 601000667

SCREW, 1/4-20X .63 HHWATA

$

$

Not available

27

Husqvarna 601000068

SCREW, 1/4-20X .75 HHC

$

$

Not available

28

Husqvarna 601000113

SCREW, #10 X .50 HHTAPPS

$

$

Not available

29

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

30

Husqvarna 601000809

FENDER (ORANGE)
(Superseded to 601000866)

$

$

Not available

31

Husqvarna 601000191

CABLE,DECK LIFT

$

$

Not available

32

Husqvarna 601000560

PULLEY, ALUMINUM

$

$

Not available

33

Husqvarna 601000193

WF ASSY,PULLEY BRKT.

$

$

Not available

34

Husqvarna 601000263

BOLT, .375X .700 HHSH 5/1

$

$

Not available

35

Husqvarna 601000052

BOLT, 5/16-18X .63 CARR

$

$

Not available

36

Husqvarna 601000133

WF ASSY, UPPER SHAFT

$

$

Not available

37

Husqvarna 601000160

MF QUADRANT

$

$

Not available

38

Husqvarna 601000746

PLATE NLA

$

$

Not available

39

Husqvarna 601000110

BOLT, .500X .270 HHSH 5/1

$

$

Not available

40

Husqvarna 601000539

BEARING
(Superseded to 601000565)

$

$

Not available

41

Husqvarna 601000115

PIN,CLEVIS .310DIA+.475LG

$

$

Not available

42

Husqvarna 601000116

RING, RET E .31X.24

$

$

Not available

43

Husqvarna 601000156

Link

$

$

Not available

44

Husqvarna 601000521

BOLT, .375X .500 HHSH 5/1

$

$

Not available

45

Husqvarna 601000547

WASHER, FLAT .333X .87X.

$

$

Not available

46

Husqvarna 601000643

MF ROD, ACTUATOR

$

$

Not available

47

Husqvarna 601000642

SPRING, HEIGHT ADJUST

$

$

Not available

48

Husqvarna 601000641

KNOB, HGT ADJ PUSH BUTTON

$

$

Not available

49

Husqvarna 601000238

HANDLE, 3/4"DIA MOLDED GR
(Superseded to 601002372)

$

$

Not available

50

Husqvarna 601000126

PAWL, HEIGHT ADJUST

$

$

Not available

51

Husqvarna 601000159

RODS,TIE

$

$

Not available

52

Husqvarna 601000025

PIN, COTTER .090/.086X.75

$

$

Not available

53

Husqvarna 601000716

PF BRACKET-FR HANGER LH BLACK

$

$

Not available

54

Husqvarna 601000721

PF SHAFT ASSY-FR LIFT BLACK

$

$

Not available

55

Husqvarna 601000717

PF BRACKET-FR HANGER LH BLACK

$

$

Not available

56

Husqvarna 601000720

PF BRACKET-REAR HANGER

$

$

Not available

57

Husqvarna 601000719

PF SHAFT ASSY-REAR LIFT

$

$

Not available

58

Husqvarna 601000258

MF SUPPORT FENDER RIGHT

$

$

Not available

59

Husqvarna 601000006

SCREW
(Superseded to 601000073)

$

$

Not available

60

Husqvarna 601000259

PLATE

$

$

Not available

61

Husqvarna 601000620

COVER,SEAT SPRING 1.5IDX1

$

$

Not available

62

Husqvarna 601000737

PF QUAD SHIFT HYDRO

$

$

Not available

63

Husqvarna 601000575

NUT, 1/4-20 WDFLLK

$

$

Not available

64

Husqvarna 601000810

Assembly brkt & Engagement hand

$

$

Not available

65

Husqvarna 601000008

NUT, 1/2-13 HEXJAM

$

$

Not available

66

Husqvarna 601000035

SCREW, 3/8-16X2.25 HHC

$

$

Not available

67

Husqvarna 601000104

NUT, 3/8-16 HEXKEPS

$

$

Not available

68

Husqvarna 601000088

BOLT, .437X .156 HHSH 5/1

$

$

Not available

69

Husqvarna 601000275

BOLT, .437X .43 HHSH

$

$

Not available

70

Husqvarna 601000251

SPRING, TENSION

$

$

Not available

71

Husqvarna 601000237

HANDLE, 1/2-13 MOLDED GRE

$

$

Not available

72

Husqvarna 601000132

CLIP

$

$

Not available

73

Husqvarna 601000228

SF ASSY SPRING CARTRIDGE

$

$

Not available

74

Husqvarna 601000066

SCREW, 1/4-20X .50 HHC

$

$

Not available

75

Husqvarna 601000811

Part's Manual

Note: (Not Illustrated) French and English

$

$

Not available

76

Husqvarna 601000812

Operator's Manual

Note: (Not Illustrated) French

$

$

Not available

77

Husqvarna 601000813

Operator's Manual

Note: (Not Illustrated) English

$

$

Not available
