4125 H - Husqvarna 40" Lawn Tractor (1992-01) Drive / Engine Parts Diagram

40" Lawn Tractor

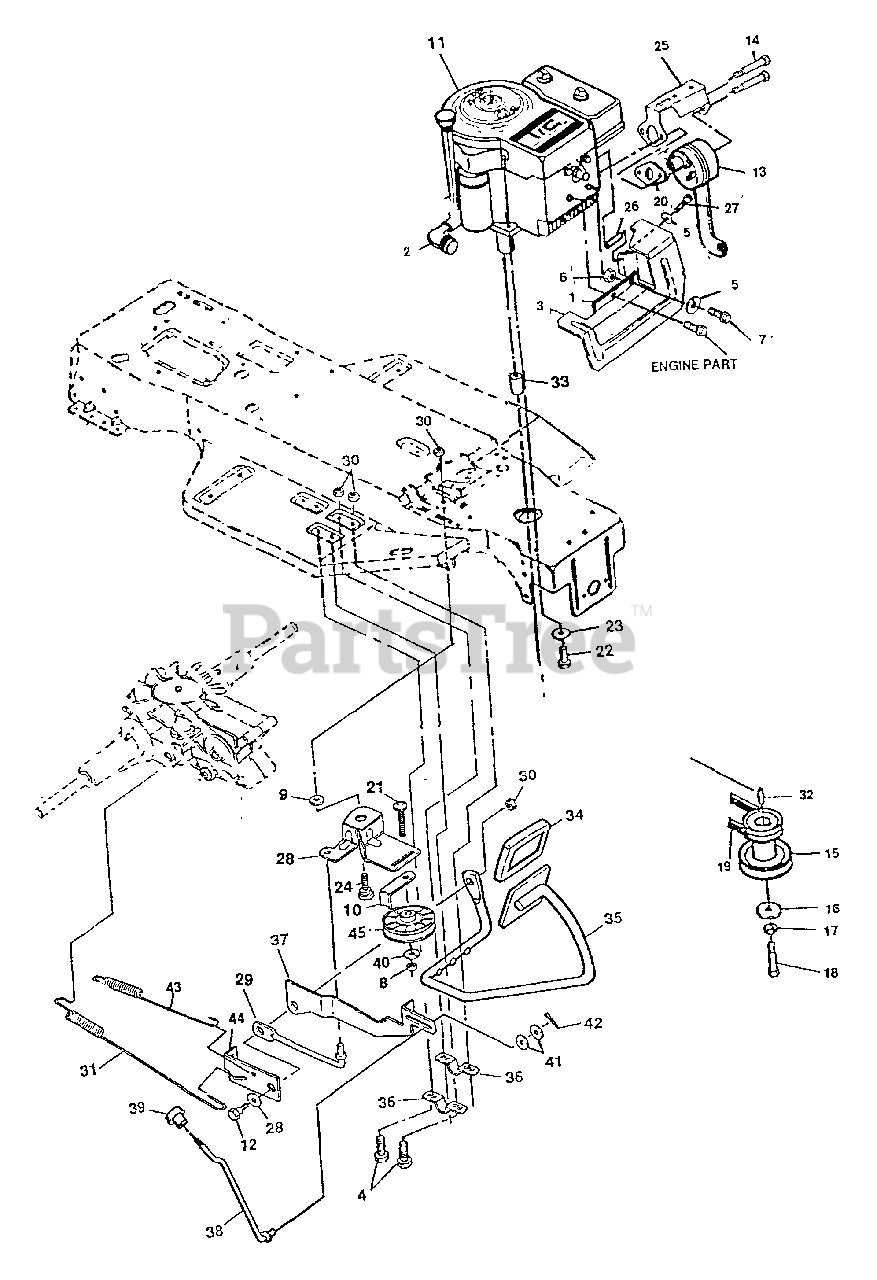

Drive / Engine Parts Diagram

  • Title

1

Husqvarna 601000824

Trim

$

$

Not available

2

Husqvarna 601000005

Elbow, 90 Degree

$

$

Not available

3

Husqvarna 601000726

Heat Shield

$

$

Not available

4

Husqvarna 601000519

Screw, 5/16-18 x 1/2

$

$

Not available

5

Husqvarna 601000014

Washer, Split Lock

$

$

Not available

6

Husqvarna 601000012

Nut, 5/16 - 18

$

$

Not available

7

Husqvarna 601000117

Screw, 14-20 x 7/8 In.

$

$

Not available

8

Husqvarna 601000013

Nut, 3/8-16

$

$

Not available

9

Husqvarna 601000547

Flatwasher, .333 x .87 x .119

$

$

Not available

10

Husqvarna 601000528

Retainer, Belt

$

$

Not available

11

ENGINE

$

$

Not available

12

Husqvarna 601000372

Bolt, Shoulder 5/16-18

$

$

Not available

13

Husqvarna 601000389

Muffler, Round

$

$

Not available

14

Husqvarna 601000260

Bolt, 5/16 - 18 Thd.

$

$

Not available

15

Husqvarna 601000293

Pulley Assembly, Engine
(Superseded to 601000448)

$

$

Not available

16

Husqvarna 601000613

Washer, Pilot

$

$

Not available

17

Husqvarna 601000016

Washer, Split Lock 7/8

$

$

Not available

18

Husqvarna 601000538

Screw, 716-20 x 5 In.

$

$

Not available

19

Husqvarna 601000388

Belt

$

$

Not available

20

Husqvarna 601000553

Muffler Gasket

$

$

Not available

21

Husqvarna 601000551

Screw, 3/8-16x1-1/2 In.

$

$

Not available

22

Husqvarna 601000573

Screw, Tap 3/8-16 x 11/4 In.

$

$

Not available

23

Husqvarna 601000056

Washer 3/8 In.

$

$

Not available

24

Husqvarna 601000387

Bolt, Shoulder, 5/16-18

$

$

Not available

25

Husqvarna 601000261

Muffler Shield

$

$

Not available

26

Husqvarna 601000390

Heat Shield Spacer

$

$

Not available

27

Husqvarna 601000084

Screw, 1/4-20 x 3-1/2 In

$

$

Not available

28

Husqvarna 601000461

Idler, Arm

$

$

Not available

29

Husqvarna 601000460

Rod, Clutch

$

$

Not available

30

Husqvarna 601000059

Nut, 5/16-18

$6.99

$

In Stock, only 2 left!

0

31

Husqvarna 601000455

Spring, Clutch

$

$

Not available

32

Husqvarna 601000635

Key Square

$

$

Not available

33

Husqvarna 601000215

Spacer

$

$

Not available

34

Husqvarna 601000825

Clutch Brake Pad

$

$

Not available

35

Husqvarna 601000724

Clutch Brake Weld Assy.

$

$

Not available

36

Husqvarna 601000442

Clutch Brake Arm Bracket

$

$

Not available

37

Husqvarna 601000384

Park Brake Lever

$

$

Not available

38

Husqvarna 601000214

Parking Brake Rod

$

$

Not available

39

Husqvarna 601000219

Knob, Parking Brake

$

$

Not available

40

Husqvarna 601000015

Washer, Split lock 3/8 In.

$

$

Not available

41

Husqvarna 601000017

Flatwasher, .250 x .56 x .04

$

$

Not available

42

Husqvarna 601000026

Cotter Pin

$

$

Not available

43

Husqvarna 601000369

Spring, Brake

$

$

Not available

44

Husqvarna 601000383

Bracket-Brake, Neutral

$

$

Not available

45

Husqvarna 601000185

Idler Pulley

$

$

Not available
