4125 H - Husqvarna 40" Lawn Tractor (1992-01) Drive / Engine Parts Diagram

40" Lawn Tractor

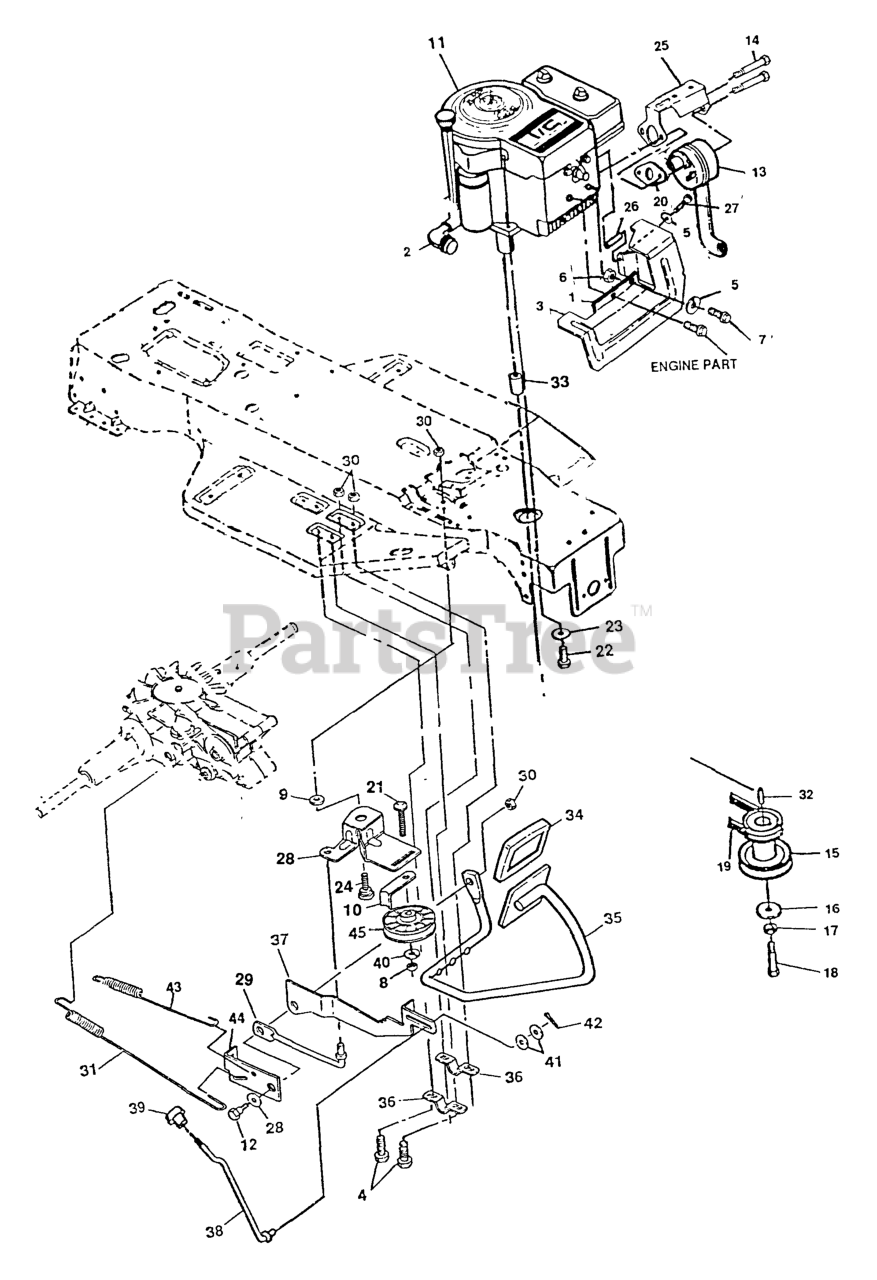

Drive / Engine Parts Diagram

  • Title

1

Husqvarna 601000824

TRIM

$

$

Not available

2

Husqvarna 601000005

ELBOW,90 DEG STREET 3/8 T

$

$

Not available

3

Husqvarna 601000726

PF SHIELD, 12 HP 5" HEAT

$

$

Not available

4

Husqvarna 601000519

SCREW, 5/16-18X .50 WAHHT

$

$

Not available

5

Husqvarna 601000014

WASHER, REGSPTLK.263X.49X

$

$

Not available

6

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

7

Husqvarna 601000117

SCREW, 1/4-20X .88WAHHTAP

$

$

Not available

8

Husqvarna 601000013

NUT, 3/8-16 REGHX

$

$

Not available

9

Husqvarna 601000547

WASHER, FLAT .333X .87X.

$

$

Not available

10

Husqvarna 601000528

MF RETAINER, STRAP BELT

$

$

Not available

11

ENGINE

$

$

Not available

12

Husqvarna 601000372

BOLT, .500X .500 HHSH 5/1

$

$

Not available

13

Husqvarna 601000389

MUFFLER, ROUND 12HP 5"DIA

$

$

Not available

14

Husqvarna 601000260

BOLT, .437X4.34O HHSH5/16

$

$

Not available

15

Husqvarna 601000293

USE 313546
(Superseded to 601000448)

$

$

Not available

16

Husqvarna 601000613

WASHER,.980IDX1.38ODX.437

$

$

Not available

17

Husqvarna 601000016

WASHER, REGSPTLK.459X.78X

$

$

Not available

18

Husqvarna 601000538

SCREW, 7/16-20X5.00 HHC

$

$

Not available

19

Husqvarna 601000388

BELT HYDRO TRACTION 82.50

$

$

Not available

20

Husqvarna 601000553

GASKET, MUFFLER

$

$

Not available

21

Husqvarna 601000551

BOLT, 3/8-16X1.50 CARR

$

$

Not available

22

Husqvarna 601000573

SCREW, 3/8-16X1.25 WAHHTA

$

$

Not available

23

Husqvarna 601000056

WASHER, EXLK .384X.69X

$

$

Not available

24

Husqvarna 601000387

BOLT, .621X .143 HHSH 5/1

$

$

Not available

25

Husqvarna 601000261

SHIELD,MUFFLER B&S SQ. LO

$

$

Not available

26

Husqvarna 601000390

SPACER HEAT SHIELD

$

$

Not available

27

Husqvarna 601000084

SCREW, 1/4-20X3.50 HHC

$

$

Not available

28

Husqvarna 601000461

ARM IDLERS

$

$

Not available

29

Husqvarna 601000460

ROD CLUTCH

$

$

Not available

30

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

31

Husqvarna 601000455

SPRING,CLUTCH .113X.750X8

$

$

Not available

32

Husqvarna 601000635

KEY, SQUARE .250SQX5.00LG

$

$

Not available

33

Husqvarna 601000215

SPACER,1.01X1.484 ENGIN P

$

$

Not available

34

Husqvarna 601000825

CLUTCH BRAKE PAD

$

$

Not available

35

Husqvarna 601000724

PF ASSY CL/BR WELD BLK. 1

$

$

Not available

36

Husqvarna 601000442

MF BRACKET CL/BR ARM

$

$

Not available

37

Husqvarna 601000384

MF LEVER PARK BRAKE

$

$

Not available

38

Husqvarna 601000214

ROD, PARKING BRAKE

$

$

Not available

39

Husqvarna 601000219

KNOB, PARK BRAKE B

$

$

Not available

40

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

41

Husqvarna 601000017

WASHER, FLAT .250X .56X.

$

$

Not available

42

Husqvarna 601000026

PIN, COTTER .0625X.75LG

$

$

Not available

43

Husqvarna 601000369

SPRING, BRAKE HYDRO

$

$

Not available

44

Husqvarna 601000383

MF BRACKET-BRAKE, NEUTRAL

$

$

Not available

45

Husqvarna 601000185

PULLEY, IDLER V4L 3.12EFF

$

$

Not available
