4125 H - Husqvarna 40" Lawn Tractor (1992-01) Front End / Hood Parts Diagram

40" Lawn Tractor

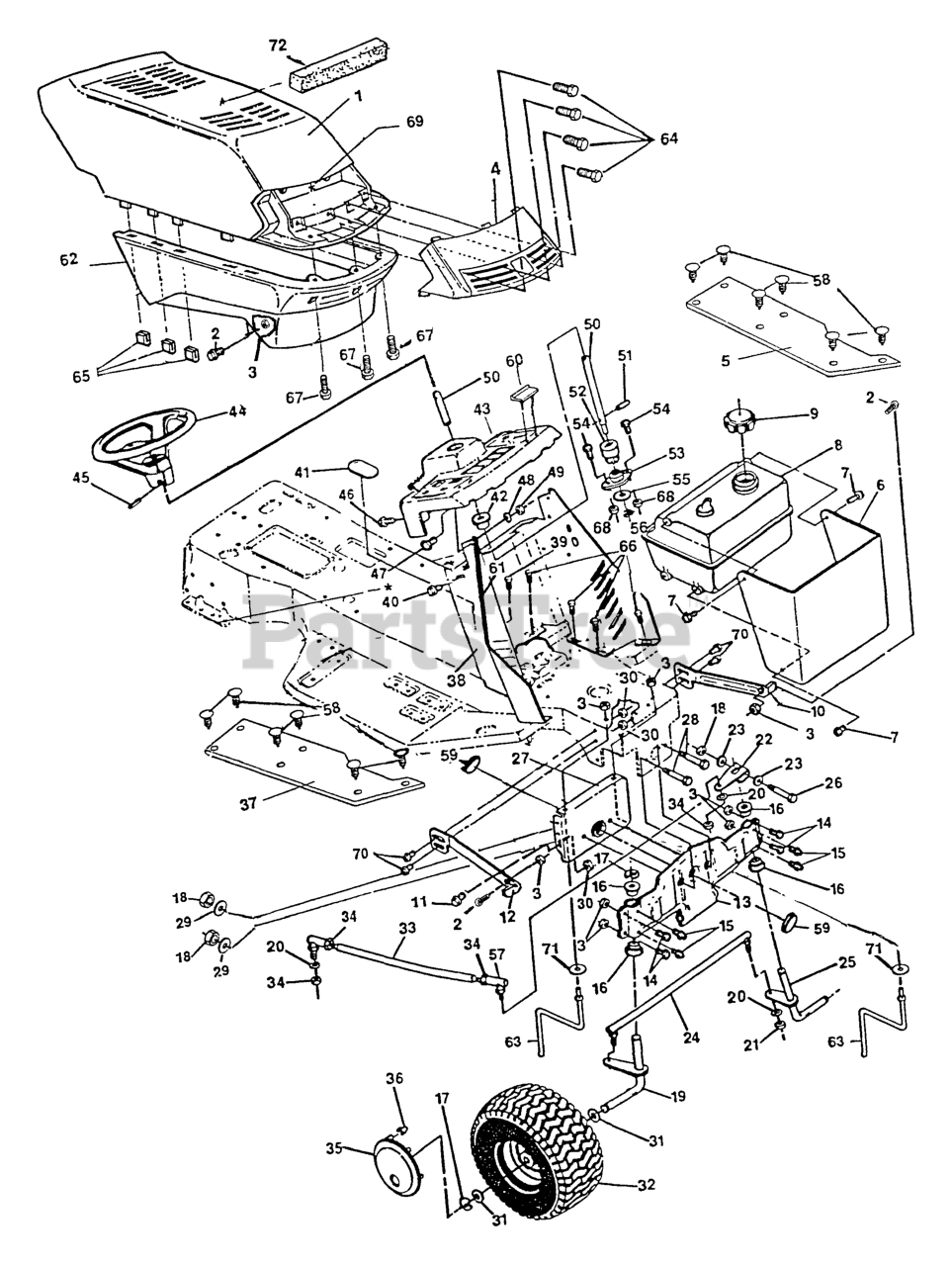

Front End / Hood Parts Diagram

  • Title

1

Husqvarna 601000398

HOOD,EURO H-19 LT MOLD/OR NLA

$

$

Not available

2

Husqvarna 601000099

BOLT, .500X .375 HHSH 5/1

$

$

Not available

3

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 601000304

LENS EURO HOOD SMOKED
(Superseded to 601001903)

$

$

Not available

5

Husqvarna 601000465

ASSY FOOT PAD LH ERO W/AD

$

$

Not available

6

Husqvarna 601000712

PF SHIELD-GAS TANK EURO BLACK

$

$

Not available

7

Husqvarna 601000114

SCREW, .25X.75X.75HHWAPLA

$

$

Not available

8

Husqvarna 601000272

ASSY GAS TANK 1.5 GAL W/S

$

$

Not available

8

Husqvarna 601000271

FUEL SENSOR

$

$

Not available

9

Husqvarna 601000049

CAP, FUEL -2.5 THROAT

$

$

Not available

10

Husqvarna 601000814

Bracket, Hood L. H.

$

$

Not available

11

Husqvarna 601000597

SCREW, 5/16-18X.75WDFLLK

$

$

Not available

12

Husqvarna 601000815

Bracket, Hood R. H.

$

$

Not available

13

Husqvarna 601000816

FRONT AXLE W/BEARINGS
(Superseded to 601000400)

$

$

Not available

14

Husqvarna 601000006

SCREW
(Superseded to 601000073)

$

$

Not available

15

Husqvarna 601000651

GREASE ZERK FITTING

$

$

Not available

16

Husqvarna 601000147

BEARING SPINDLE FR W/HOLE

$

$

Not available

17

Husqvarna 601000525

RING, RETEX .57X.05TRU513

$

$

Not available

18

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

19

Husqvarna 601000817

SPINDLE RH

$

$

Not available

20

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

21

Husqvarna 601000010

NUT, 3/8-24 REGHEX

$

$

Not available

22

Husqvarna 601000148

ARM, STEERING UPPER
(Superseded to 601000506)

$

$

Not available

23

Husqvarna 601000670

WASHER, FLAT .391X1.0OX.

$

$

Not available

24

Husqvarna 601000119

TIE ROD .625DIA GRND ENGA

$

$

Not available

25

Husqvarna 601000818

SPINDLE LH

$

$

Not available

26

Husqvarna 601000077

SCREW

$

$

Not available

27

Husqvarna 601000708

PF BRACKET FRONT AXLE SUPT

$

$

Not available

28

Husqvarna 601000037

SCREW, 3/8-16X3.00 HHC

$

$

Not available

29

Husqvarna 601000098

WASHER,.39IDX1.25DX.07 BE
(Superseded to 601002313)

$

$

Not available

30

Husqvarna 601000595

NUT, 5/16-18 HXWDFLLK
(Superseded to 601000867)

$

$

Not available

31

Husqvarna 601000645

WASHER, FLAT .755X1.31X.

$

$

Not available

32

Wheel & Tire Assembly, Front Tire

Note: Refer to Tire Tread Page. Order Parts Individually

$

$

Not available

32

Husqvarna 601000819

WHEEL W/BEARING

$

$

Not available

32

Husqvarna 601000096

VALVE STEM

$

$

Not available

32

Husqvarna 601000458

BEARING, FL1.38ODX.753ID

$

$

Not available

33

Husqvarna 601000181

LINK, ASSY .625DIA DRAG L

$

$

Not available

34

Husqvarna 601000048

NUT, 3/8-24 REGHEXJAM

$

$

Not available

35

Husqvarna 601000290

6" HUBCAP ERO WHITE

$

$

Not available

36

Husqvarna 601000294

CLIP,HUBCAP TINN #C25467-

$

$

Not available

37

Husqvarna 601000464

ASSY FOOT PAD RH ERO W/AD

$

$

Not available

38

Husqvarna 601000700

PF DASH SHORT LOWER LT GR

$

$

Not available

39

Husqvarna 601000544

SCREW, 5/16-18X .37 WAHHT

$

$

Not available

40

Husqvarna 601000668

SCREW, 1/4-20X .50 WAHHTA
(Superseded to 601001445)

$

$

Not available

41

Husqvarna 601000247

COVER,SECTOR BOLT PLAS GR

$

$

Not available

42

Husqvarna 601000192

BUSHING STR SHFT UPPER

$

$

Not available

43

Husqvarna 601000820

DASH UPPER
(Superseded to 601000759)

$

$

Not available

44

Husqvarna 601000190

WHEEL,STEER 14"LONG 4WS L

$

$

Not available

45

Husqvarna 601000548

PIN, SPRING.250DIAX2.00LG

$

$

Not available

46

Husqvarna 601000274

SCREW

$

$

Not available

47

Husqvarna 601000024

SCREW, 1/4-20X .63 HHC

$

$

Not available

48

Husqvarna 601000018

WASHER, FLAT .281X .63X.

$

$

Not available

49

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$14.99

$

Usually ships in 3-10 days

0

50

Husqvarna 601000149

SHAFT, STEERING EURO LT S

$

$

Not available

51

Husqvarna 601000164

PIN DOWEL STR ERO LT

$

$

Not available

52

Husqvarna 601000151

PINION STEERING

$

$

Not available

53

Husqvarna 601000163

BEARING FLANGE 0.5 BORE

$

$

Not available

54

Husqvarna 601000821

Screw, 5/16-24x .75 Sq.

$

$

Not available

55

Husqvarna 601000109

WASHER, FLAT .504X .75X.

$

$

Not available

56

Husqvarna 601000089

RING, RET E .39X.04TRU513

$

$

Not available

57

Husqvarna 601000623

BALL JOINT 3/8 THD SHORT

$

$

Not available

58

Husqvarna 601000406

FASTENER, RATCHET GRE

$

$

Not available

59

Husqvarna 601000307

PLUG,FRONT AXLE 1.938DIAX

$

$

Not available

60

Husqvarna 601000822

BUMPER HOOD/DASH
(Superseded to 601000879)

$

$

Not available

61

Husqvarna 601000556

EDGING,WIDE BLK BULK LENGTH
(Superseded to 601000739)

$

$

Not available

62

Husqvarna 601000302

GRILL, G-16 LT MOLD/GREY

$

$

Not available

63

Husqvarna 601000122

GUIDE, BELT, RIDER

$

$

Not available

64

Husqvarna 601000417

SCREW, #4-24X .50 PHPNHIL

$

$

Not available

65

Husqvarna 601000303

CLIP, TINNERMAN VER II HO

$

$

Not available

66

Husqvarna 601000519

SCREW, 5/16-18X .50 WAHHT

$

$

Not available

67

Husqvarna 601000113

SCREW, #10 X .50 HHTAPPS

$

$

Not available

68

Husqvarna 601000823

NUT 5/16-24 HXWDFLLK

$

$

Not available

69

Husqvarna 601000397

DECAL REFLECTOR VERII HOO

$

$

Not available

70

Husqvarna 601000591

SCREW, 5/16-18X.75 HXWDFL

$

$

Not available

71

Husqvarna 601000057

WASHER, REGINTLK.320X.61X

$

$

Not available

72

Husqvarna 601000319

FOAM HOOD BAFFLE

$

$

Not available
