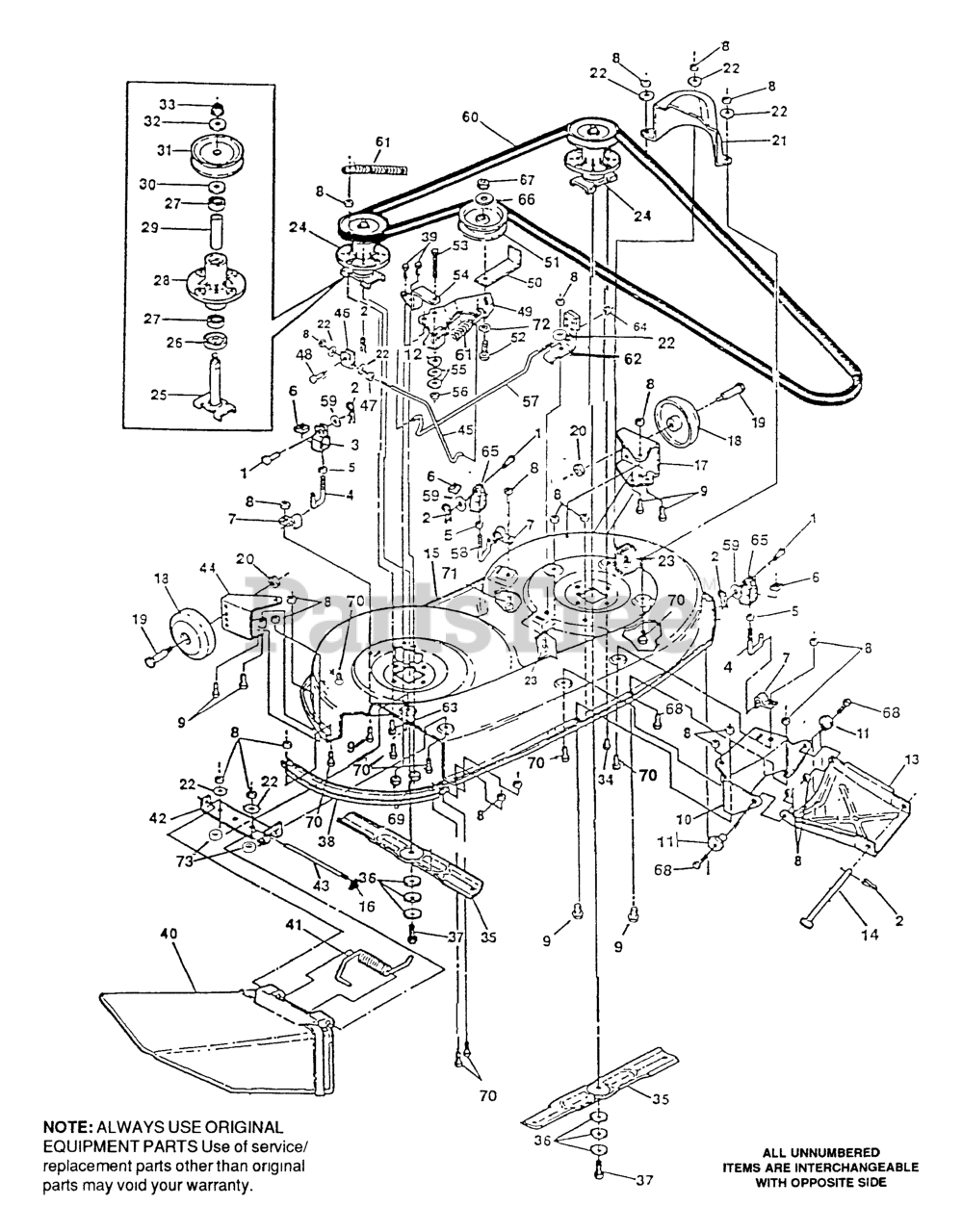

4125 H - Husqvarna 40" Lawn Tractor (1992-01) Mower Deck Parts Diagram

40" Lawn Tractor

Mower Deck Parts Diagram

  • Title

1

Husqvarna 601000118

PIN, CLEVIS .38 DIAX1.00

$

$

Not available

2

Husqvarna 601000604

PIN, HAIR .091 DIAX1.62LG

$

$

Not available

3

Husqvarna 601000860

CLEVIS

$

$

Not available

4

Husqvarna 601000362

ROD, 40" REAR DECK LIFT

$

$

Not available

5

Husqvarna 601000008

NUT, 1/2-13 HEXJAM

$

$

Not available

6

Husqvarna 601000004

NUT, 1/2-13 .458 SQ

$

$

Not available

7

Husqvarna 601000837

SHIFT ROD

$

$

Not available

8

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 601000072

BOLT, 5/16-18X .63 HHC
(Superseded to 601000073)

$

$

Not available

10

Husqvarna 601000353

USE 312705
(Superseded to 601000423)

$

$

Not available

11

Husqvarna 601000639

ADJ NUT

$

$

Not available

12

Husqvarna 601000669

WASHER, FLAT .391X1.00X.

$

$

Not available

13

Husqvarna 601000402

CHANNEL DRAWBAR

$

$

Not available

14

Husqvarna 601000183

ROD.DRAWBAR NLA

$

$

Not available

15

Husqvarna 601000838

MOWER DECK
(Superseded to 601000781)

$

$

Not available

16

Husqvarna 601000516

NUT, PUSH ON CAP .312 OD

$

$

Not available

17

Husqvarna 601000225

BRACKET,GAGE WHEEL L.H.
(Superseded to 601000675)

$

$

Not available

18

Husqvarna 601000170

WHEEL, SD 6.00ODX1.38WD S

$

$

Not available

19

Husqvarna 601000095

BOLT, .500X1.390 HHSH 3/8

$

$

Not available

20

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

21

Husqvarna 601000173

GUARD, BELT LH PLASTIC

$

$

Not available

22

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$

$

Not available

23

Husqvarna 601000006

SCREW
(Superseded to 601000073)

$

$

Not available

24

Husqvarna 601000611

QUILL, 39 & 40 W/ZERKS
(Superseded to 601002479)

Note: (Incl Nos 25-33)

$

$

Not available

25

Husqvarna 601000612

SHAFT/SADDLE

$

$

Not available

26

Husqvarna 601000569

DUST SHIELD

$

$

Not available

27

Husqvarna 601000050

BEARING,BALL
(Superseded to 601002315)

$

$

Not available

28

Husqvarna 601000839

QUILL HOUSING
(Superseded to 601000782)

$

$

Not available

29

Husqvarna 601000572

SPACER

$

$

Not available

30

Husqvarna 601000840

SPACER

$

$

Not available

31

Husqvarna 601000841

PULLEY
(Superseded to 601002500)

$

$

Not available

32

Husqvarna 601000609

SPECIAL WASHER

$

$

Not available

33

Husqvarna 601000053

NUT
(Superseded to 601002418)

$

$

Not available

34

Husqvarna 601000570

SCREW, 5/16-18X .88 WAHHT

$

$

Not available

35

Husqvarna 601000187

BLADE
(Superseded to 601000345)

$

$

Not available

36

Husqvarna 601000098

WASHER,.39IDX1.25DX.07 BE
(Superseded to 601002313)

$

$

Not available

37

Husqvarna 601000527

SCREW, 3/8-24X1.00 NYLHHC

$

$

Not available

38

Husqvarna 601000200

TOE GUARD
(Superseded to 601000697)

$

$

Not available

39

Husqvarna 601000073

SCREW, 5/16-18X .75 HHC

$

$

Not available

40

Husqvarna 601000223

CHUTE DEFLECTOR 40",42"&4

$

$

Not available

41

Husqvarna 601000466

SPRING TORSION CHUTE DEF.

$

$

Not available

42

Husqvarna 601000158

BRACKET CHUTE MOUNT
(Superseded to 601000504)

$

$

Not available

43

Husqvarna 601000224

ROD,PIVOT 40"DECK .312DX7

$

$

Not available

44

Husqvarna 601000210

BRACKET,GUAGE WHEEL RH
(Superseded to 601000505)

$

$

Not available

45

Husqvarna 601000188

RODS, CLUTCH

$

$

Not available

46

Husqvarna 601000249

LF CLEVIS EURO Z-P

$

$

Not available

47

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

48

Husqvarna 601000563

PIN,CLEVIS

$

$

Not available

49

Husqvarna 601000842

IDLER ASSEMBLY

$

$

Not available

50

Husqvarna 601000054

RETAINER

$

$

Not available

51

Husqvarna 601000391

PULLEY, IDLER BFF 4.00 WI

$

$

Not available

52

Husqvarna 601000627

BOLT, 3/8-16X2.00 CARR

$

$

Not available

53

Husqvarna 601000222

BOLT, .500X2.15 HXHDCPSH

$

$

Not available

54

Husqvarna 601000157

BRACE IDLER
(Superseded to 601000419)

$

$

Not available

55

Husqvarna 601000670

WASHER, FLAT .391X1.0OX.

$

$

Not available

56

Husqvarna 601000542

NUT, 3/8-16 HWDFL WHIZ-LO

$

$

Not available

57

Husqvarna 601000172

ROD, BRAKE

$

$

Not available

58

Husqvarna 601000422

ROD, 40" REAR DECK LIFT Z

$

$

Not available

59

Husqvarna 601000106

WASHER, FLAT .406X .73X.

$

$

Not available

60

Husqvarna 601000558

BELT, V 5L 82.00 DECK DR

$

$

Not available

61

Husqvarna 601000517

SPRING .071 X .62 X 4.37

$

$

Not available

62

Husqvarna 601000204

SF BLADE BRAKE ASSY.

$

$

Not available

63

Husqvarna 601000121

SCREW

$

$

Not available

64

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$14.99

$

Usually ships in 3-10 days

0

65

Husqvarna 601000227

LF CLEVIS

$

$

Not available

66

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

67

Husqvarna 601000013

NUT, 3/8-16 REGHX

$

$

Not available

68

Husqvarna 601000074

SCREW, 5/16-18X1.00 HHC

$

$

Not available

69

Husqvarna 601000843

NUT 5/16-28 THD

$

$

Not available

70

Husqvarna 601000844

BOLT CARRIAGE 5/16-18X.63 GR5

$

$

Not available

71

Husqvarna 601000546

BOLT, 5/16-18X .63 CARR
(Superseded to 601001976)

$

$

Not available

72

Husqvarna 601000541

WASHER, FLAT .375X .88X.

$

$

Not available

73

Husqvarna 601000845

FLATWASHER .469X.92X.065

$

$

Not available
