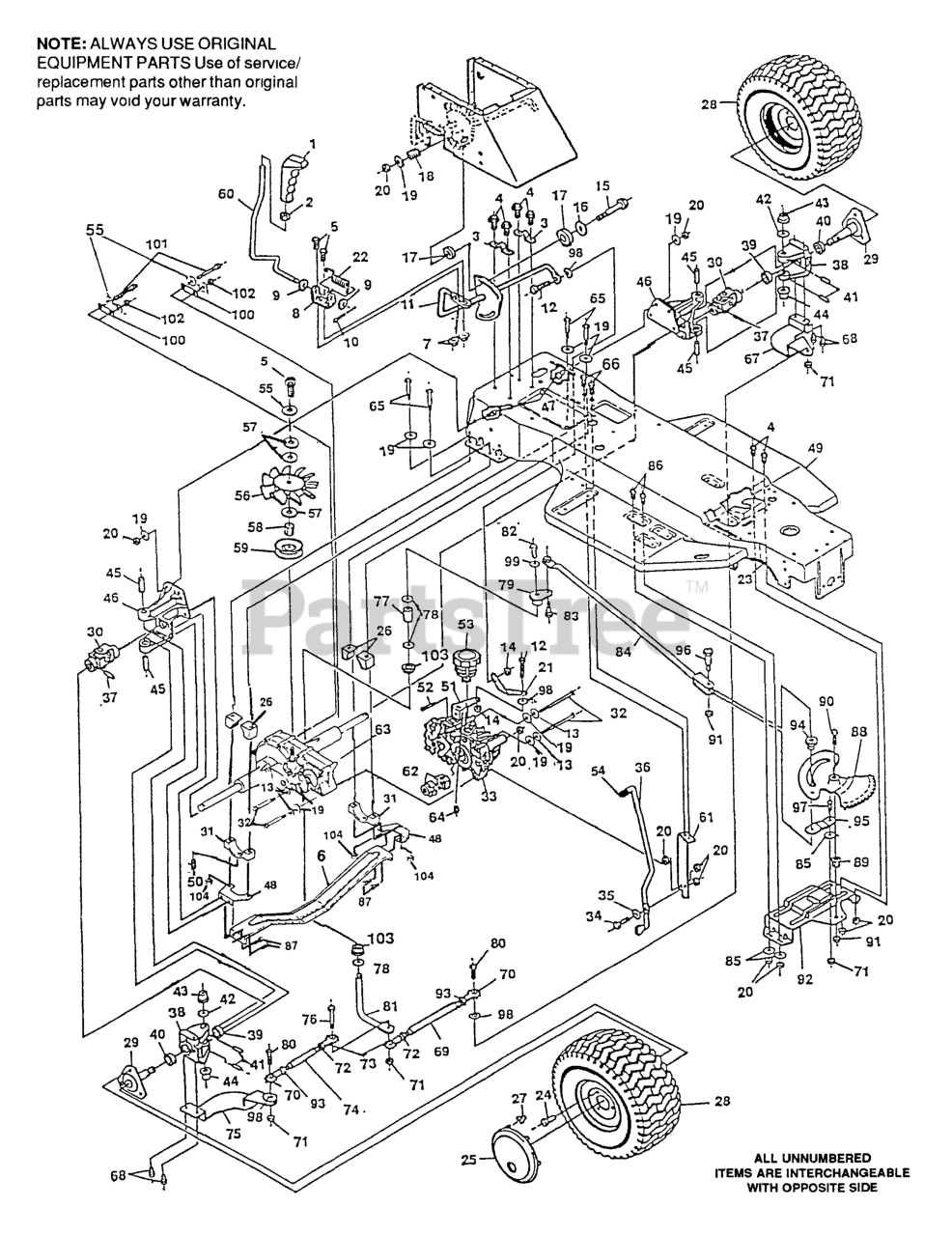

4125 H - Husqvarna 40" Lawn Tractor (1992-01) Rear End / Rear Steering Parts Diagram

40" Lawn Tractor

Rear End / Rear Steering Parts Diagram

  • Title

1

Husqvarna 601000237

HANDLE, 1/2-13 MOLDED GRE

$

$

Not available

2

Husqvarna 601000008

NUT, 1/2-13 HEXJAM

$

$

Not available

3

Husqvarna 601000442

MF BRACKET CL/BR ARM

$

$

Not available

4

Husqvarna 601000519

SCREW, 5/16-18X .50 WAHHT

$

$

Not available

5

Husqvarna 601000067

SCREW, 1/4-20X .62 HHC

$

$

Not available

6

Husqvarna 601000826

BRACE

$

$

Not available

7

Husqvarna 601000827

NUT 1/4-20

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 601000394

PF PIVOT BRKT LEVER BLAC

$

$

Not available

9

Husqvarna 601000654

WASHER, FLAT .46 X .92X.

$

$

Not available

10

Husqvarna 601000025

PIN, COTTER .090/.086X.75

$

$

Not available

11

Husqvarna 601000727

PF SHIFT ROD ASSY

$

$

Not available

12

Husqvarna 601000033

SCREW, 3/8-16X1.25 HHC

$

$

Not available

13

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

14

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

15

Husqvarna 601000032

SCREW, 5/16-18X2.00 HHC

$

$

Not available

16

Husqvarna 601000656

WASHER, FLAT .390X1.25X.

$

$

Not available

17

Husqvarna 601000566

WASHER,FRICTION 1.25ODX.3

$

$

Not available

18

Husqvarna 601000108

SPRING

$

$

Not available

19

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$

$

Not available

20

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 601000380

SHIFT LINK

$

$

Not available

22

Husqvarna 601000392

SPRING-TORSION HYDRO SHIF

$

$

Not available

23

Husqvarna 601000556

EDGING,WIDE BLK BULK LENGTH
(Superseded to 601000739)

$

$

Not available

24

Husqvarna 601000044

SCREW, 1/2-20X .50 HHC

$

$

Not available

25

Husqvarna 601000291

8" HUBCAP ERO WHITE 869

$

$

Not available

26

Husqvarna 601000404

MF MOUNTING BLOCK LH HYDR

$

$

Not available

27

Husqvarna 601000294

CLIP,HUBCAP TINN #C25467-

$

$

Not available

28

Tire and Wheel Assembly Tire

Note: Refer to Tire Tread Page. Order Parts Individually

$

$

Not available

28

Husqvarna 601000640

TIRE 20X10.00-8 "A"
(Superseded to 601000947)

$

$

Not available

28

Husqvarna 601000096

VALVE STEM

$

$

Not available

29

Husqvarna 601000467

WF HUB ASSEMBLY HEAVY

$

$

Not available

30

Husqvarna 601000828

U-JOINT ASSEMBLY

$

$

Not available

30

Husqvarna 601000829

Grease Fitting

$

$

Not available

31

Husqvarna 601000379

MF MOUNTING BLOCKS HYDRO

$

$

Not available

32

Husqvarna 601000085

SCREW, 5/16-18X4.5O HHC

$

$

Not available

33

Husqvarna 601000381

HYDROSTATIC PUMP BDU-10S-
(Superseded to 532121430)

$

$

Not available

34

Husqvarna 601000373

BOLT, .250X .312 HHSH 5/1

$

$

Not available

35

Husqvarna 601000098

WASHER,.39IDX1.25DX.07 BE
(Superseded to 601002313)

$

$

Not available

36

Husqvarna 601000385

ROD-RELIEF VALVE ZINC 953

$

$

Not available

37

Husqvarna 601000522

PIN, GROOVED .250 DIAX1.5

$

$

Not available

38

Husqvarna 601000468

BRACKET,STR PIVOT 6204 BE

$

$

Not available

39

Husqvarna 601000043

BEARING

$

$

Not available

40

Husqvarna 601000469

BRNG, BALL.8750 IDX1.85 O

$

$

Not available

41

Husqvarna 601000550

PIN, SPRING.250DIAX1.50LG

$

$

Not available

42

Husqvarna 601000092

WASHER, FLAT .765X1.25X.0

$

$

Not available

43

Husqvarna 601000038

BUSHING, SHOULDERED (OILI

$

$

Not available

44

Husqvarna 601000042

BUSHING, SHOULDERED (OILI

$

$

Not available

45

Husqvarna 601000039

PIN, STEERING HINGE

$

$

Not available

46

Husqvarna 601000047

BRACKET ASSEM,STEER PIVOT

$

$

Not available

47

Husqvarna 601000029

SCREW, 5/16-18X1.00 HHC

$

$

Not available

48

Husqvarna 601000733

PF BRKT X-AXLE MTG

$

$

Not available

49

Husqvarna 601000830

MAIN FRAME NLA

$

$

Not available

50

Husqvarna 601000058

SCREW, 10-32X .25 ALSETCU

$

$

Not available

51

Husqvarna 601000378

MF ARM SPEED CONTROL HYDR

$

$

Not available

52

Husqvarna 601000549

PIN, SPRING.187DIAX .88LG

$

$

Not available

53

Husqvarna 601000401

RESERVOIR,HYDRO NLA

$

$

Not available

54

Husqvarna 601000831

Cap, Memory Rod

$

$

Not available

55

Husqvarna 601000014

WASHER, REGSPTLK.263X.49X

$

$

Not available

56

Husqvarna 601000338

FAN,HYDRO 7.00DIA-10 BLAD

$

$

Not available

57

Husqvarna 601000832

WASHER FLAT

$

$

Not available

58

Husqvarna 601000374

NUT PULLEY 1/2-20 AND 1/4

$

$

Not available

59

Husqvarna 601000375

WF PULLEY ASSY HYDRO

$

$

Not available

60

Husqvarna 601000725

PF SHIFT LEVER HYDRO BLACK

$

$

Not available

61

Husqvarna 601000377

MF STABILIZER BRACKET

$

$

Not available

62

Husqvarna 601000833

Coupling

$

$

Not available

63

Transaxle

Note: Order Parts Individually

$

$

Not available

64

Husqvarna 601000001

SCREW, 1/4-20X .38 ALHSET

$

$

Not available

65

Husqvarna 601000834

SCREW 5/16-18X2.25 IN

$

$

Not available

66

Husqvarna 601000072

BOLT, 5/16-18X .63 HHC
(Superseded to 601000073)

$

$

Not available

67

Husqvarna 601000710

PF ARM RW STR ERO LH BLACK

$

$

Not available

68

Husqvarna 601000835

SCREW SELF-TAP 3/8-16X1 IN

$

$

Not available

69

Husqvarna 601000451

ROD, TIE 1/2"D X 7.00LG

$

$

Not available

70

Husqvarna 601000333

ROD,TIE END LH 3/8-24 EUR

$

$

Not available

71

Husqvarna 601000532

NUT, 3/8-24 HXCTRLK

$

$

Not available

72

Husqvarna 601000048

NUT, 3/8-24 REGHEXJAM

$

$

Not available

73

Husqvarna 601000217

ROD, TIE END RH

$

$

Not available

74

Husqvarna 601000452

ROD, TIE 1/2"D X 11.30LG

$

$

Not available

75

Husqvarna 601000709

PF ARM RW STR ERO RH BLACK

$

$

Not available

76

Husqvarna 601000082

SCREW, 3/8-24X1.75 HHC

$

$

Not available

77

Husqvarna 601000450

SPACER, STEERING SHAFT HY

$

$

Not available

78

Husqvarna 601000100

WASHER, FLAT .765X1.19X.

$

$

Not available

79

Husqvarna 601000340

PIVOT, STEERING

$

$

Not available

80

Husqvarna 601000081

SCREW, 3/8-24X1.25 HHC

$

$

Not available

81

Husqvarna 601000454

SHAFT, STEERING PIVOT HY

$

$

Not available

82

Husqvarna 601000536

SCREW, 5/16-24X1.00 HHC G

$

$

Not available

83

Husqvarna 601000041

BOLT, .562X .340 HHSH 3/8 NLA

$

$

Not available

84

Husqvarna 601000454

SHAFT, STEERING PIVOT HY

$

$

Not available

85

Husqvarna 601000541

WASHER, FLAT .375X .88X.

$

$

Not available

86

Husqvarna 601000520

SCREW, 5/16-18X .75 WAHHT

$

$

Not available

87

Husqvarna 601000570

SCREW, 5/16-18X .88 WAHHT

$

$

Not available

88

Husqvarna 601000175

WF ASSY SECTOR GEAR 4WS

$

$

Not available

89

Husqvarna 601000176

BEARING,SLEEVE SECTOR GEA

$

$

Not available

90

Husqvarna 601000218

SCREW, 1/2-20X2.38 HHC

$

$

Not available

91

Husqvarna 601000107

NUT, 1/2-20 REGHXCTRLK

$

$

Not available

92

Husqvarna 601000718

PF PLATE-PIVOT STEERING

$

$

Not available

93

Husqvarna 601000326

PF BRACKET,FR HANGER LH B
(Superseded to 601000716)

$

$

Not available

94

Husqvarna 601000203

CAM YOKE ROLLER

$

$

Not available

95

Husqvarna 601000169

MF ARM ROLLER SWING 4 W

$

$

Not available

96

Husqvarna 601000205

BOLT, SHOULDER CAM ROLLER

$

$

Not available

97

Husqvarna 601000167

SHOULD BOLT CAM FOLLOWER

$

$

Not available

98

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

99

Husqvarna 601000547

WASHER, FLAT .333X .87X.

$

$

Not available

100

Husqvarna 601000459

MP BRACKET, REAR PIVIOT H

$

$

Not available

101

Husqvarna 601000836

SCREW 1/4-20X.75 IN

$

$

Not available

102

Husqvarna 601000011

NUT, 1/4-20 REGHEX

$

$

Not available

103

Husqvarna 601000147

BEARING SPINDLE FR W/HOLE

$

$

Not available

104

Husqvarna 601000540

NUT, 5/16-18 HWDFLCTRLK

$

$

Not available
