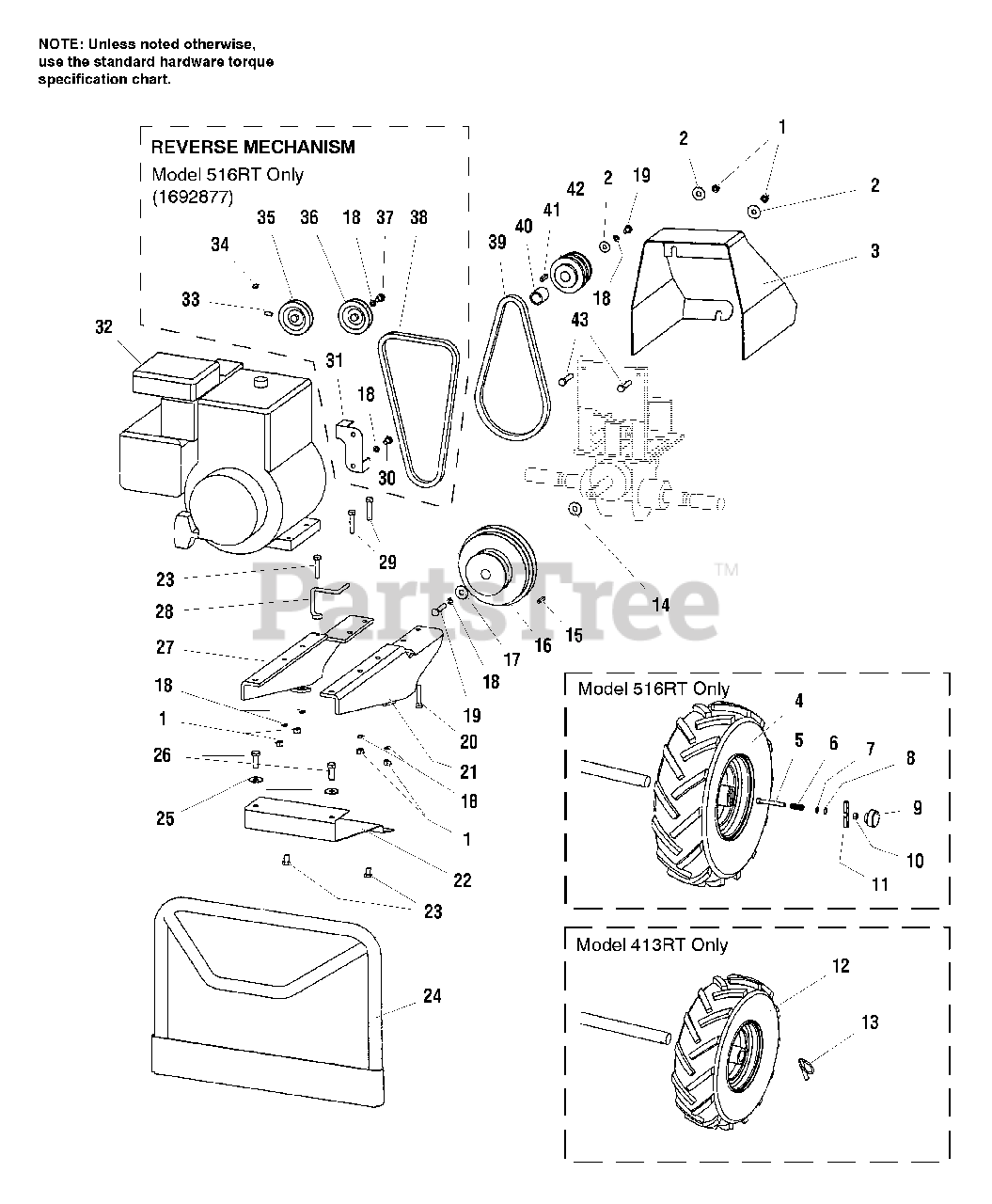

413 RT (1692876) - Simplicity Rear-Tine Tiller, 3.5hp Engine Mounting, Belts & Wheels Parts Diagram

Rear-Tine Tiller, 3.5hp

Engine Mounting, Belts & Wheels Parts Diagram

  • Title

1

Simplicity 1917372SM

NUT, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1960044SM

WASHER, Flat, 5/16"

$4.49

$

In Stock, Qty 12

0

3

Simplicity 1716784SM

BELT COVER

$93.99

$

Usually ships in 2-12 days

0

4

Simplicity 1716773SM

WHEEL, Tire Assembly, Left

Note: Model 516RT Only

$146.99

$

Usually ships in 2-12 days

0

4

Simplicity 1716775SM

WHEEL, Tire Assembly, Right

Note: Model 516RT Only

$153.99

$

Usually ships in 2-12 days

0

5

Simplicity 1716782SM

SCREW, Soc Hd, 1/4"-20 x 2"

Note: Model 516RT Only

$5.99

$

Usually ships in 2-12 days

0

6

Simplicity 1716781SM

SPRING

Note: Model 516RT Only

$15.99

$

Usually ships in 2-12 days

0

7

Simplicity 1960151SM

WASHER, 1/4" ID
(Superseded to 703136)

Note: Model 516RT Only

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 1716779SM

SNAP RING

Note: Model 516RT Only

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 1716777SM

KNOB, Wheel Lockout

Note: Model 516RT Only

$16.99

$

Usually ships in 2-12 days

0

10

Simplicity 2828372SM

NUT, Keps, 1/4"-20
(Superseded to 703914)

Note: Model 516RT Only

$3.49

$

In Stock, Qty 18

0

11

Simplicity 1716778SM

LOCKOUT, Set of 2

Note: Model 516RT Only

$54.99

$

In Stock, only 1 left!

0

12

Simplicity 1721525SM

WHEEL, Tire Assembly, Left

Note: Model 413RT Only

$131.99

$

In Stock, only 1 left!

0

12

Simplicity 1721524SM

WHEEL, Tire Assembly, Right

Note: Model 413RT Only

$158.99

$

Usually ships in 2-12 days

0

13

Simplicity 1716776SM

LOCKPIN
(Superseded to 703160)

Note: Model 413RT Only

$5.49

$

In Stock, Qty 7

0

14

Simplicity 2860164SM

WASHER, Flat, 11/16" ID

$4.49

$

In Stock, Qty 5

0

15

Simplicity 2805850SM

KEY, 3/16" x 1"

$2.49

$

Usually ships in 2-12 days

0

16

Simplicity 1716768SM

PULLEY, Transmission

Note: Model 413RT Only

$120.99

$

Usually ships in 2-12 days

0

16

Simplicity 1716769SM

PULLEY, Transmission

Note: Model 516RT Only

$

$

Not available

17

Simplicity 1716770SM

WASHER

$6.99

$

Usually ships in 2-12 days

0

18

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16"
(Superseded to 703116)

Note: (Qty. 6 on Model 413RT). Reverse Mechanism Model 516RT Only (1692877)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1921515SM

BOLT, Hex Hd, 5/16"-24 x 3/4", Grade 5

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 1960470SM

SCREW, Soc Hd, 5/16"-18 x 1-1/4"

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 1716753SM

BRACKET, Engine Mount, Left Side

$70.99

$

Usually ships in 2-12 days

0

22

Simplicity 1716754SM

GUARD, Lower Pulley

$

$

Not available

23

Simplicity 1921332SM

BOLT, Hex Flange Hd, 5/16", 18 x 3/4"
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

24

Simplicity 1721528SM

BUMPER GUARD

$265.99

$

Usually ships in 2-12 days

0

25

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

26

Simplicity 1921210SM

BOLT, Hex Hd, 3/8"-16 x 1", Grade 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

27

Simplicity 1716752SM

BRACKET, Engine Mount, Right Side

$72.99

$

Usually ships in 2-12 days

0

28

Simplicity 1716767SM

BELT GUIDE, Forward

$

$

Not available

29

Simplicity 1922127SM

SCREW, Hex Hd, 5/16"-18 x 1-3/4"
(Superseded to 704288)

$4.99

$

In Stock, only 2 left!

0

30

Simplicity 1716756SM

SCREW, Hex Hd, 5/16"-24 x 1/2"

Note: Model 516RT Only. Reverse Mechanism Model 516RT Only (1692877)

$

$

Not available

31

Simplicity 1716755SM

BELT GUIDE, Reverse

Note: Model 516RT Only. Reverse Mechanism Model 516RT Only (1692877)

$37.99

$

Usually ships in 2-12 days

0

32

ENGINE, 3.5HP (Model 413RT)

$

$

Not available

32

ENGINE, 5HP (Model 516RT)

$

$

Not available

33

Simplicity 1716758SM

SET SCREW, 1/4"-20 x 1/4"

Note: Model 516RT Only. Reverse Mechanism Model 516RT Only (1692877)

$3.49

$

Usually ships in 2-12 days

0

34

Simplicity 2805121SM

KEY, Woodruff, #5

Note: Model 516RT Only. Reverse Mechanism Model 516RT Only (1692877)

$2.99

$

In Stock, only 1 left!

0

35

Simplicity 1716757SM

PULLEY, Engine Reverse

Note: Model 516RT Only. Reverse Mechanism Model 516RT Only (1692877)

$70.99

$

Usually ships in 2-12 days

0

36

Simplicity 1716761SM

PULLEY, Belt Guide, V-Groove

Note: Model 516RT Only. Reverse Mechanism Model 516RT Only (1692877)

$

$

Not available

37

Simplicity 1716760SM

BOLT, Hex Hd, 5/16"-24 x 1-1/2"
(Superseded to 703568)

Note: Model 516RT Only. Reverse Mechanism Model 516RT Only (1692877)

$4.99

$

Usually ships in 2-12 days

0

38

Simplicity 1716759SM

BELT, Reverse

Note: Model 516RT Only. Reverse Mechanism Model 516RT Only (1692877)

$24.99

$

In Stock, only 1 left!

0

39

Simplicity 1716765SM

BELT, Forward

Note: Model 413RT Only

$23.99

$

In Stock, only 1 left!

0

39

Simplicity 1716766SM

BELT, Forward

Note: Model 516RT Only

$23.99

$

In Stock, Qty 13

0

40

Simplicity 1716762SM

SPACER, Engine Pulley

$5.99

$

Usually ships in 2-12 days

0

41

Simplicity 1716763SM

KEY, 3/16" x 1-1/2"

$

$

Not available

42

Simplicity 1716764SM

PULLEY, Engine Forward

$96.99

$

Usually ships in 2-12 days

0

43

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0
