413 RT (1692876) - Simplicity Rear-Tine Tiller, 3.5hp Shifting Mechanism Parts Diagram

Rear-Tine Tiller, 3.5hp

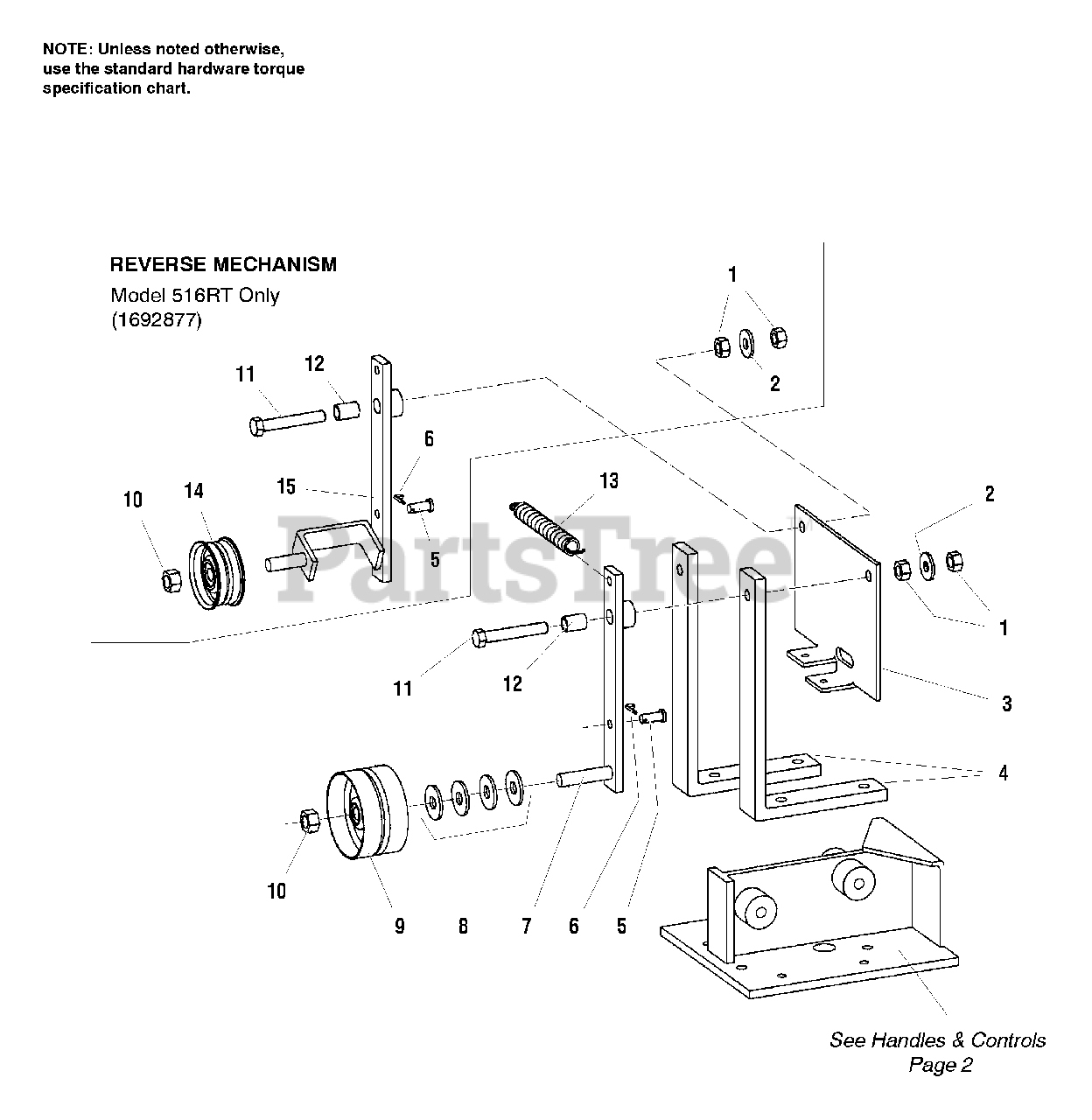

Shifting Mechanism Parts Diagram

  • Title

1

Simplicity 1917372SM

NUT, 5/16"-18
(Superseded to 7091511SM)

Note: Reverse Mechanism Model 516RT Only (1692877)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1960044SM

WASHER, Flat, 5/16"

Note: Reverse Mechanism Model 516RT Only (1692877)

$4.49

$

In Stock, Qty 12

0

3

Simplicity 1716807SM

BRACKET, Cable Mount

$

$

Not available

4

Simplicity 1716801SM

MOUNTING BAR, Shifting Mechanism

$9.99

$

Usually ships in 2-12 days

0

5

Simplicity 1716702SM

LINK PIN

Note: (Qty. 1 on Model 413RT). Reverse Mechanism Model 516RT Only (1692877)

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1716703SM

COTTER PIN

Note: (Qty. 1 on Model 413RT). Reverse Mechanism Model 516RT Only (1692877)

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 1716804SM

IDLER ARM, Forward

$26.99

$

Usually ships in 2-12 days

0

8

Simplicity 1924940SM

WASHER, Flat, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1716803SM

PULLEY, Forward Idler

$45.99

$

Usually ships in 2-12 days

0

10

Simplicity 1916950SM

NUT, Hex, 3/8"-16
(Superseded to 703577)

Note: (Qty. 1 on Model 413RT) Reverse Mechanism Model 516RT Only (1692877)

$4.49

$

In Stock, Qty 12

0

11

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

Note: Reverse Mechanism Model 516RT Only (1692877)

$4.99

$

In Stock, Qty 6

0

12

Simplicity 1716704SM

BUSHING, Pivot, 5/16"

Note: (Qty. 1 on Model 413RT). Reverse Mechanism Model 516RT Only (1692877)

$12.99

$

Usually ships in 2-12 days

0

13

Simplicity 1716802SM

SPRING, Idler Arm

$11.99

$

Usually ships in 2-12 days

0

14

Simplicity 1716805SM

PULLEY, Reverse Idler

Note: Model 516RT Only. Reverse Mechanism Model 516RT Only (1692877)

$42.99

$

In Stock, only 1 left!

0

15

Simplicity 1716806SM

IDLER ARM, Reverse

Note: Model 516RT Only

$32.99

$

Usually ships in 2-12 days

0
