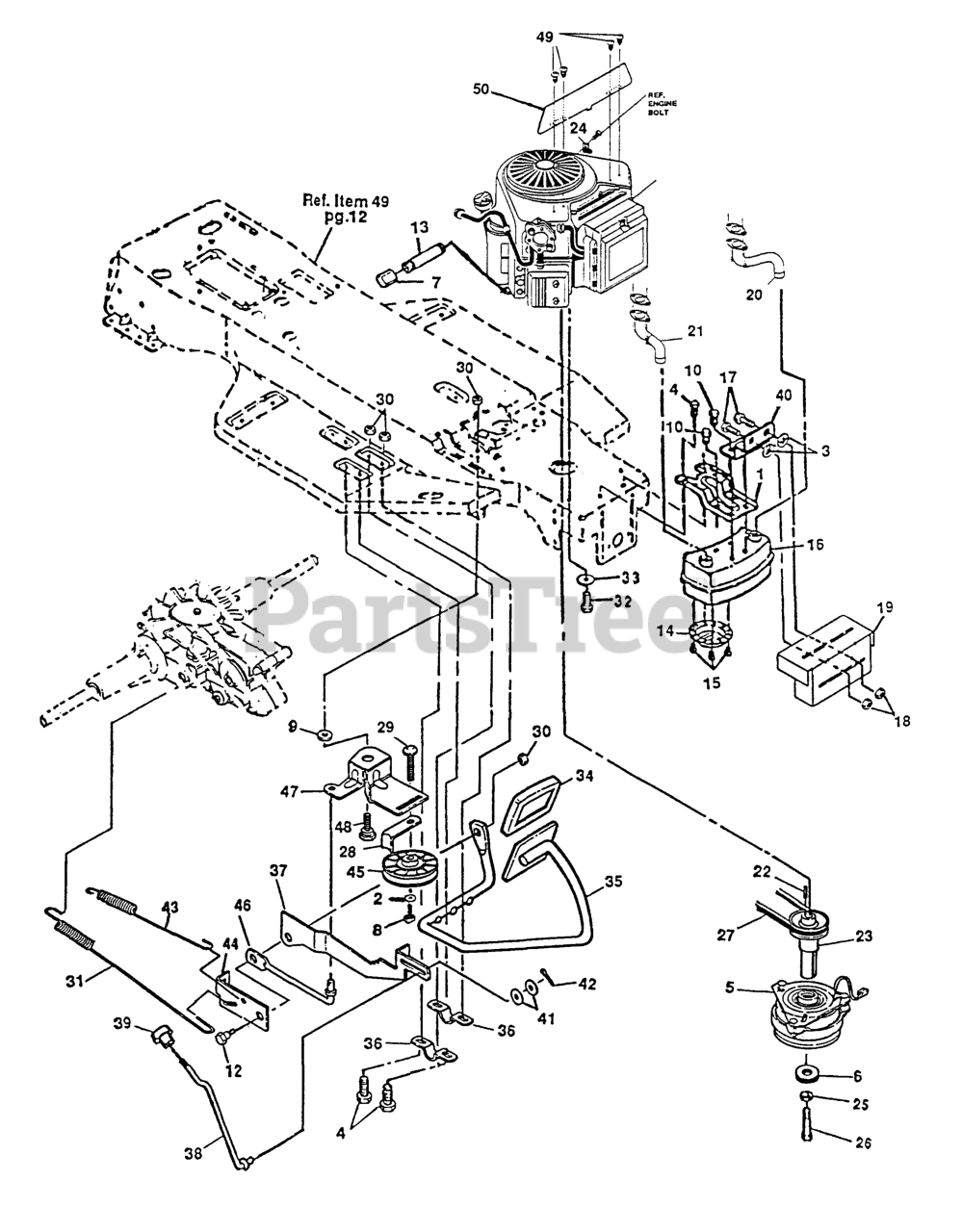

4140 H - Husqvarna 46" Lawn Tractor (1992-01) Drive/Engine Parts Diagram

46" Lawn Tractor

Drive/Engine Parts Diagram

  • Title

1

Husqvarna 601000711

PF BRACKET-MUFFLER BLACK

$

$

Not available

2

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

3

Husqvarna 601000355

PUSHNUT, 5/16 BOLT RETAIN

$

$

Not available

4

Husqvarna 601000519

SCREW, 5/16-18X .50 WAHHT

$

$

Not available

5

Husqvarna 601000343

CLUTCH, ELECTRIC 16/18HP

$

$

Not available

6

Husqvarna 601000880

BUSHING, SLEEVE SECTOR GEAR

$

$

Not available

7

Husqvarna 601000557

CAP, PIPE 3/8-18 NPT ZN P

$

$

Not available

8

Husqvarna 601000013

NUT, 3/8-16 REGHX

$

$

Not available

9

Husqvarna 601000547

WASHER, FLAT .333X .87X.

$

$

Not available

10

Husqvarna 601000667

SCREW, 1/4-20X .63 HHWATA

$

$

Not available

11

ENGINE

$

$

Not available

12

Husqvarna 601000372

BOLT, .500X .500 HHSH 5/1

$

$

Not available

13

Husqvarna 601000309

NIPPLE 3/8-18 NPT X 4"

$

$

Not available

14

Husqvarna 601000614

DEFLECTOR SIDE OUT (BS222

$

$

Not available

15

Husqvarna 601000515

SCREW, #8-32X .38 HHWATAP

$

$

Not available

16

Husqvarna 601000264

MUFFLER 15HP B&S VANG

$

$

Not available

17

Husqvarna 601000052

BOLT, 5/16-18X .63 CARR

$

$

Not available

18

Husqvarna 601000595

NUT, 5/16-18 HXWDFLLK
(Superseded to 601000867)

$

$

Not available

19

Husqvarna 601000881

HEAT SHIELD

$

$

Not available

20

Husqvarna 601000266

EXHAUST TUBE 15HP LH B&S

$

$

Not available

21

Husqvarna 601000265

EXHAUST TUBE 15HP RH B&S

$

$

Not available

22

Husqvarna 601000267

KEY, SQUARE .250SQX2.12LG

$

$

Not available

23

Husqvarna 601000354

PULLEY,ENGINE ASSY ELEC/C
(Superseded to 601002276)

$

$

Not available

24

Husqvarna 601000631

RETAINER, .31IDX.62X.03 W

$

$

Not available

25

Husqvarna 601000016

WASHER, REGSPTLK.459X.78X

$

$

Not available

26

Husqvarna 601000091

SCREW, 7/16-20X5.50 HHCGR

$

$

Not available

27

Husqvarna 601000388

BELT HYDRO TRACTION 82.50

$

$

Not available

28

Husqvarna 601000528

MF RETAINER, STRAP BELT

$

$

Not available

29

Husqvarna 601000551

BOLT, 3/8-16X1.50 CARR

$

$

Not available

30

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

31

Husqvarna 601000369

SPRING, BRAKE HYDRO

$

$

Not available

32

Husqvarna 601000573

SCREW, 3/8-16X1.25 WAHHTA

$

$

Not available

33

Husqvarna 601000056

WASHER, EXLK .384X.69X

$

$

Not available

34

Husqvarna 601000882

CLUTCH BRAKE PAD

$

$

Not available

35

Husqvarna 601000724

PF ASSY CL/BR WELD BLK. 1

$

$

Not available

36

Husqvarna 601000442

MF BRACKET CL/BR ARM

$

$

Not available

37

Husqvarna 601000384

MF LEVER PARK BRAKE

$

$

Not available

38

Husqvarna 601000214

ROD, PARKING BRAKE

$

$

Not available

39

Husqvarna 601000219

KNOB, PARK BRAKE B

$

$

Not available

40

Husqvarna 601000666

LF BRKT, TRANSAXLE Z-PL

$

$

Not available

41

Husqvarna 601000017

WASHER, FLAT .250X .56X.

$

$

Not available

42

Husqvarna 601000025

PIN, COTTER .090/.086X.75

$

$

Not available

43

Husqvarna 601000455

SPRING,CLUTCH .113X.750X8

$

$

Not available

44

Husqvarna 601000383

MF BRACKET-BRAKE, NEUTRAL

$

$

Not available

45

Husqvarna 601000185

PULLEY, IDLER V4L 3.12EFF

$

$

Not available

46

Husqvarna 601000460

ROD CLUTCH

$

$

Not available

47

Husqvarna 601000461

ARM IDLERS

$

$

Not available

48

Husqvarna 601000387

BOLT, .621X .143 HHSH 5/1

$

$

Not available

49

Husqvarna 601000883

SCREW, 10-16X.50 DRILLITE

$

$

Not available

50

Husqvarna 601000884

HEAT SHIELD

$

$

Not available
