4140 H - Husqvarna 46" Lawn Tractor (1992-01) Hydrostatic Pump Parts Diagram

46" Lawn Tractor

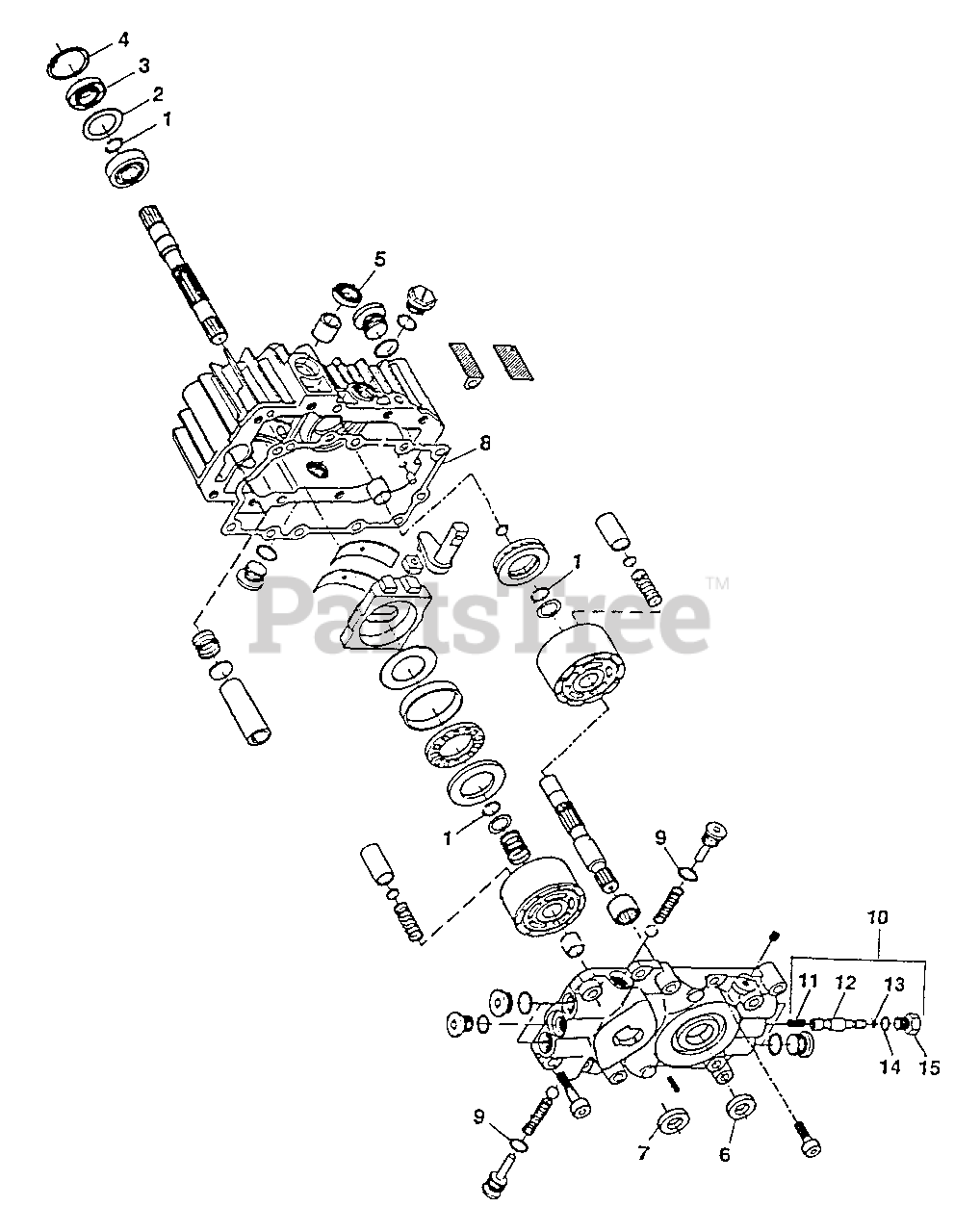

Hydrostatic Pump Parts Diagram

  • Title

Husqvarna 310227

HYDROSTATIC PUMP (COMPLETE)

$

$

Currently unavailable

Husqvarna 313306

OVERHAUL SEAL KIT

Note: (CONTAINS KEY NO.'S 1-9, 13 AND 14)

$

$

Currently unavailable

1

RING-RETAINING

$

$

Not available

2

SPACER

$

$

Not available

3

SEAL-LIP

$

$

Not available

4

RING-RETAINING

$

$

Not available

5

SEAL-LIP

$

$

Not available

6

SEAL-LIP

$

$

Not available

7

SEAL-LIP

$

$

Not available

8

GASKET-CENTER SECTION

$

$

Not available

9

O-RING

$

$

Not available

10

Husqvarna 313305

BY-PASS VALVE KIT COMPLETE

Note: (INCL KEY NO'S 11-15)

$

$

Currently unavailable

11

SPRING-HELICAL COMP

$

$

Not available

12

BY-PASS SPOOL

$

$

Not available

13

O-RING

$

$

Not available

14

O-RING

$

$

Not available

15

PLUG-BY-PASS

$

$

Not available
