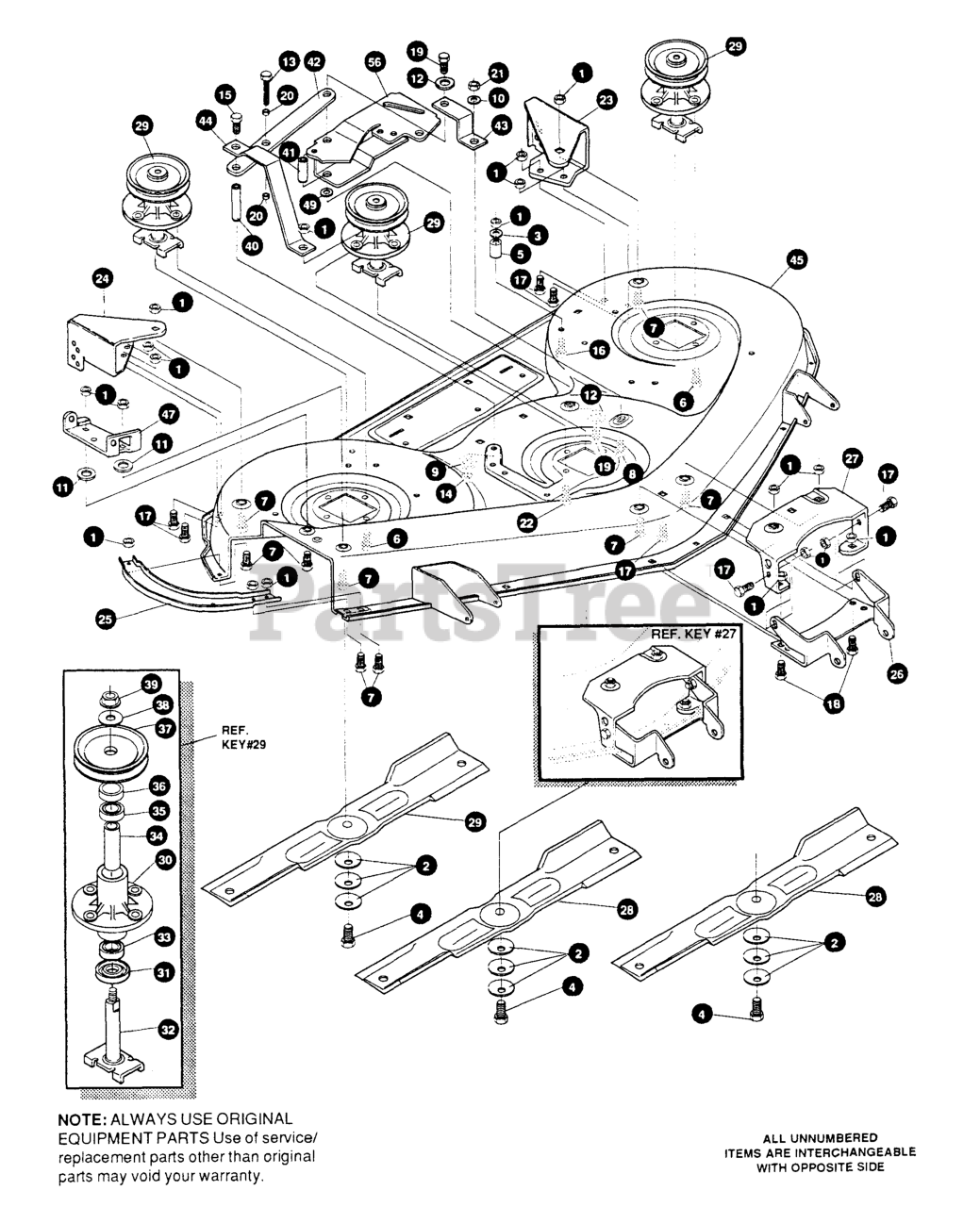

4140 H - Husqvarna 46" Lawn Tractor (1992-01) Mower Deck (A) Parts Diagram

46" Lawn Tractor

Mower Deck (A) Parts Diagram

  • Title

1

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna 601000098

WASHER,.39IDX1.25DX.07 BE
(Superseded to 601002313)

$

$

Not available

3

Husqvarna 601000513

WASHER, FLAT

$

$

Not available

4

Husqvarna 601000527

SCREW, 3/8-24X1.00 NYLHHC

$

$

Not available

5

Husqvarna 601000568

SPACER

$

$

Not available

6

Husqvarna 601000570

SCREW, 5/16-18X .88 WAHHT

$

$

Not available

7

Husqvarna 601000894

BOLT 5/16-18X.63

$

$

Not available

8

Husqvarna 601000895

BOLT, 3/8-16X .75 CARR

$

$

Not available

9

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

10

Husqvarna 601000020

WASHER, FLAT .406X .81X.

$

$

Not available

11

Husqvarna 601000896

WASHER, FLAT .469X .92 X .065

$

$

Not available

12

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

13

Husqvarna 601000897

SCREW

$

$

Not available

14

Husqvarna 601000898

SCREW

$

$

Not available

15

Husqvarna 601000036

SCREW, 3/8-16X2.50 HHC

$

$

Not available

16

Husqvarna 601000899

BOLT 5/16-18 X 1.00

$

$

Not available

17

Husqvarna 601000072

BOLT, 5/16-18X .63 HHC
(Superseded to 601000073)

$

$

Not available

18

Husqvarna 601000074

SCREW, 5/16-18X1.00 HHC

$

$

Not available

19

Husqvarna 601000079

SCREW, 5/16-24X .88 HHC

$

$

Not available

20

Husqvarna 601000102

NUT, 1/4-20 REGHEXKEPS

$

$

Not available

21

Husqvarna 601000104

NUT, 3/8-16 HEXKEPS

$

$

Not available

22

Husqvarna 601000121

SCREW

$

$

Not available

23

Husqvarna 601000152

BRACKET
(Superseded to 601000432)

$

$

Not available

24

Husqvarna 601000153

BRACKET
(Superseded to 601000426)

$

$

Not available

25

Husqvarna 601000174

USE 312702
(Superseded to 601000428)

$

$

Not available

26

Husqvarna 601000900

MS BRKT, MOUNTING 46" DECK

$

$

Not available

27

Husqvarna 601000352

USE 312705
(Superseded to 601000430)

$

$

Not available

28

Husqvarna 601000360

USE 309573
(Superseded to 601000507)

$

$

Not available

29

Husqvarna 601000901

SF QUILL 46" DECK W/ ZERKS
(Superseded to 601002455)

$

$

Not available

30

Husqvarna 601000902

QUILL CASTING 46" DECK

$

$

Not available

31

Husqvarna 601000569

DUST SHIELD

$

$

Not available

32

Husqvarna 601000903

WS SHAFT/SADDLE 46" DECK

$

$

Not available

33

Husqvarna 601000050

BEARING,BALL
(Superseded to 601002315)

$

$

Not available

34

Husqvarna 601000904

SPACER SLEEEVE

$

$

Not available

35

Husqvarna 601000050

BEARING,BALL
(Superseded to 601002315)

$

$

Not available

36

Husqvarna 601000905

SPACER QUILL, 46" DECK

$

$

Not available

37

Husqvarna 601000906

46" QUILL PULLEY SPLIT-STEEL

$

$

Not available

38

Husqvarna 601000907

WASHER SPECIAL QUILL 46"

$

$

Not available

39

Husqvarna 601000053

NUT
(Superseded to 601002418)

$

$

Not available

40

Husqvarna 601000908

SUPPORT SHAFT

$

$

Not available

41

Husqvarna 601000909

IDLER SHAFT 46" DECK

$

$

Not available

42

Husqvarna 601000910

SUPPORT, STRAP

$

$

Not available

43

Husqvarna 601000911

BRACKET, IDLER SUPPORT

$

$

Not available

44

Husqvarna 601000912

BRACKET, PULLEY SUPPORT

$

$

Not available

45

Husqvarna 601000913

WS MOWER DECK 46" SD 4140H

$

$

Not available

46

Husqvarna 601000914

MS/MP IDLER ARM 40/43/46

$

$

Not available

47

Husqvarna 601000915

MS BRKT CHUTE MOUNT 46"

$

$

Not available

48

Husqvarna 601000916

WASHER, FLAT .531 X 1.06X .063

$

$

Not available

49

UNKNOWN

$

$

Not available

56

UNKNOWN

$

$

Not available
