4140 H - Husqvarna 46" Lawn Tractor (1992-01) Mower Deck (B) Parts Diagram

46" Lawn Tractor

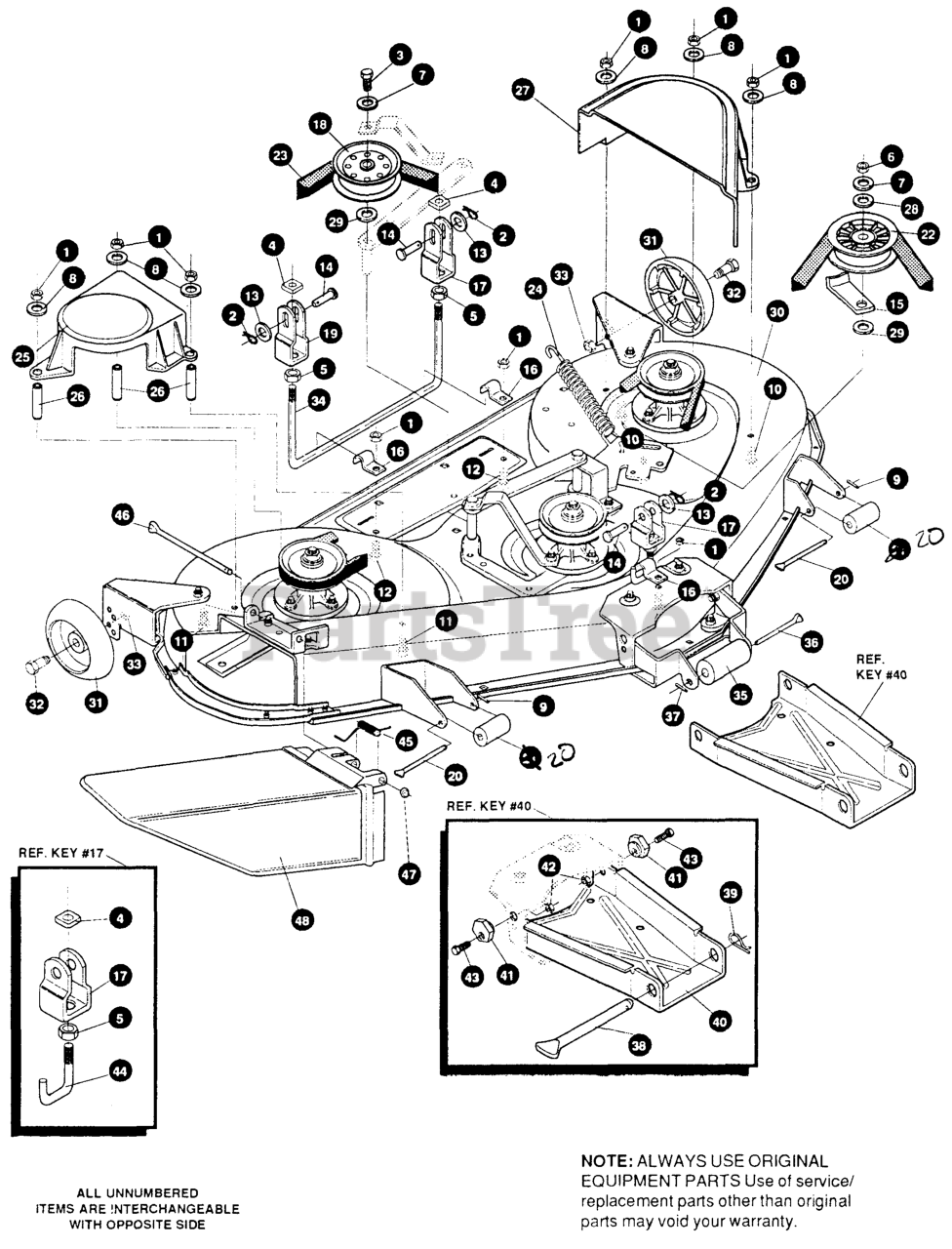

Mower Deck (B) Parts Diagram

  • Title

1

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna 601000604

PIN, HAIR .091 DIAX1.62LG

$

$

Not available

3

Husqvarna 601000627

BOLT, 3/8-16X2.00 CARR

$

$

Not available

4

Husqvarna 601000004

NUT, 1/2-13 .458 SQ

$

$

Not available

5

Husqvarna 601000008

NUT, 1/2-13 HEXJAM

$

$

Not available

6

Husqvarna 601000013

NUT, 3/8-16 REGHX

$

$

Not available

7

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

8

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$

$

Not available

9

Husqvarna 601000025

PIN, COTTER .090/.086X.75

$

$

Not available

10

Husqvarna 601000052

BOLT, 5/16-18X .63 CARR

$

$

Not available

11

Husqvarna 601000917

BOLT, 5/16-18X 2.00 CARR

$

$

Not available

12

Husqvarna 601000072

BOLT, 5/16-18X .63 HHC
(Superseded to 601000073)

$

$

Not available

13

Husqvarna 601000106

WASHER, FLAT .406X .73X.

$

$

Not available

14

Husqvarna 601000118

PIN, CLEVIS .38 DIAX1.00

$

$

Not available

15

Husqvarna 601000124

LF BELT RETAINER 2.55 OD
(Superseded to 601000054)

$

$

Not available

16

Husqvarna 601000131

SPACER TUBE

$

$

Not available

17

Husqvarna 601000918

ML CLEVIS, 953
(Superseded to 601000227)

$

$

Not available

18

Husqvarna 601000184

PULLEY, IDLER BFF 4.00 DI

$

$

Not available

19

Husqvarna 601000248

LF CLEVIS SLOTTED EURO Z-
(Superseded to 601000860)

$

$

Not available

20

Husqvarna 601000920

ROLLER

$

$

Not available

22

Husqvarna 601000391

PULLEY, IDLER BFF 4.00 WI

$

$

Not available

23

Husqvarna 601000921

BELT V 5L 129LG 46" EURO

$

$

Not available

24

Husqvarna 601000922

SPRING 46" ELECT/CLUTCH

$

$

Not available

25

Husqvarna 601000923

GUARD BELT RH 46" DECK

$

$

Not available

26

Husqvarna 601000924

SPACER, GUARD 46" LF/EURO

$

$

Not available

27

Husqvarna 601000925

GUARD, BELT LH PLASTIC

$

$

Not available

28

Husqvarna 601000541

WASHER, FLAT .375X .88X.

$

$

Not available

29

Husqvarna 601000670

WASHER, FLAT .391X1.0OX.

$

$

Not available

30

Husqvarna 601000926

SD DECK 46" PRE-PAINT 4140H

$

$

Not available

31

Husqvarna 601000170

WHEEL, SD 6.00ODX1.38WD S

$

$

Not available

32

Husqvarna 601000095

BOLT, .500X1.390 HHSH 3/8

$

$

Not available

33

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

34

Husqvarna 601000927

ROD, LIFT 46" DECK LG

$

$

Not available

35

Husqvarna 601000928

ROLLER

$

$

Not available

36

Husqvarna 601000929

ROD SUPPORT

$

$

Not available

37

Husqvarna 601000930

COTTER PIN .125 X 1.0

$

$

Not available

38

Husqvarna 601000183

ROD.DRAWBAR NLA

$

$

Not available

39

Husqvarna 601000604

PIN, HAIR .091 DIAX1.62LG

$

$

Not available

40

Husqvarna 601000402

CHANNEL DRAWBAR

$

$

Not available

41

Husqvarna 601200639

NUT, ADJUSTING

$

$

Currently unavailable

42

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

43

Husqvarna 601000074

SCREW, 5/16-18X1.00 HHC

$

$

Not available

44

Husqvarna 601000362

ROD, 40" REAR DECK LIFT

$

$

Not available

45

Husqvarna 601000466

SPRING TORSION CHUTE DEF.

$

$

Not available

46

Husqvarna 601000246

ROD,PIVOT 46"DECK .312DX6

$

$

Not available

47

Husqvarna 601000355

PUSHNUT, 5/16 BOLT RETAIN

$

$

Not available

48

Husqvarna 601000239

CHUTE

$

$

Not available
