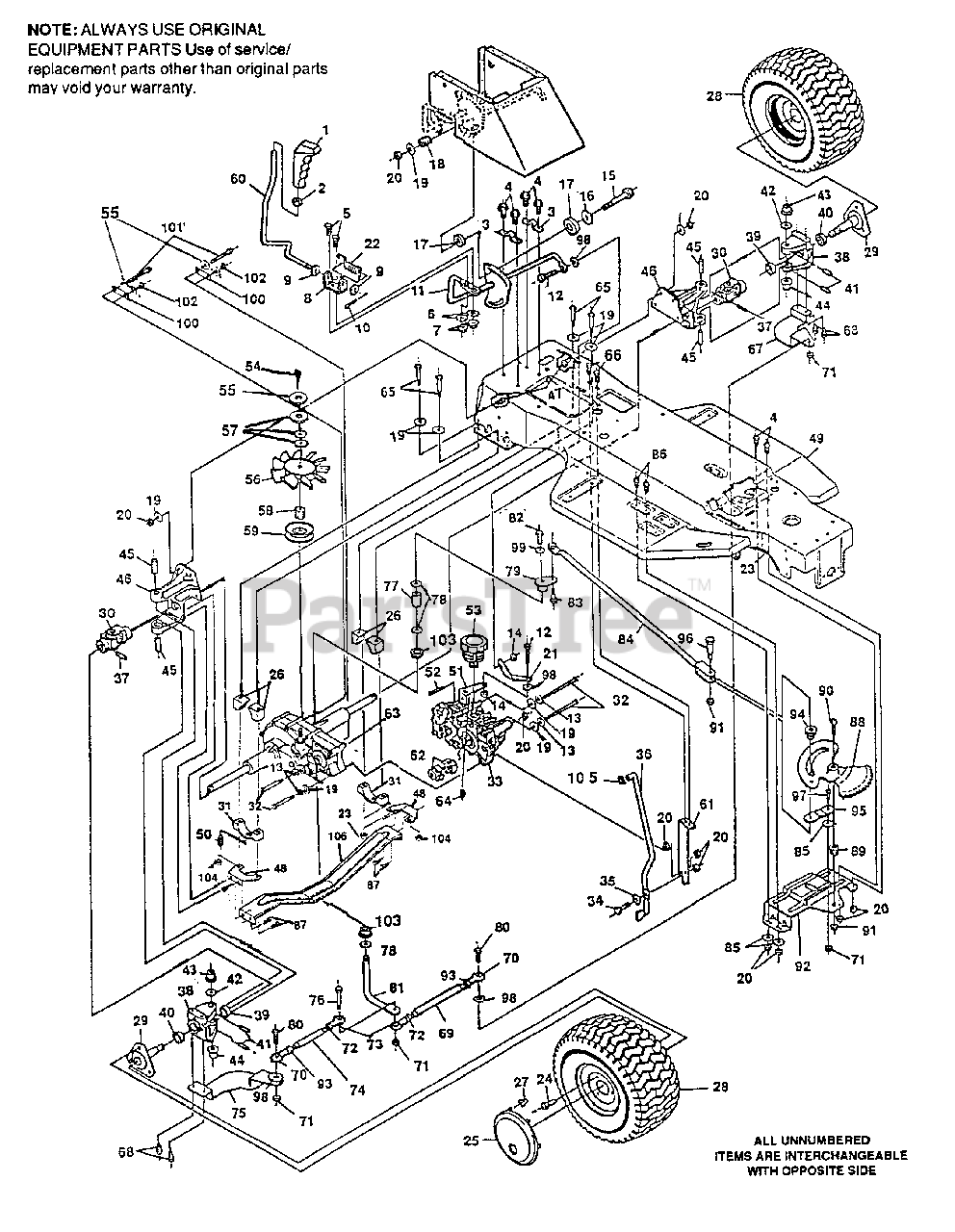

4140 H - Husqvarna 46" Lawn Tractor (1992-01) Rear End/Rear Steering Parts Diagram

46" Lawn Tractor

Rear End/Rear Steering Parts Diagram

  • Title

1

Husqvarna 601000237

Handle, Deck Engage Lever

$

$

Not available

2

Husqvarna 601000008

Nut, 1/2-13 Jam

$

$

Not available

3

Husqvarna 601000442

Bracket, Clutch/Brake Arm

$

$

Not available

4

Husqvarna 601000519

Screw, 5/16-18 x 1/2 In.

$

$

Not available

5

Husqvarna 601000067

Screw, 1/4-20 x .62 In.

$

$

Not available

6

Husqvarna 601000018

Flatwasher

$

$

Not available

7

Husqvarna 601000575

Nut, 1/4-20

$

$

Not available

8

Husqvarna 601000394

Bracket, Shift

$

$

Not available

9

Husqvarna 601000654

Washer, Flat

$

$

Not available

10

Husqvarna 601000025

Pin, Cotter

$

$

Not available

11

Husqvarna 601000727

Shift Rod Assembly

$

$

Not available

12

Husqvarna 601000033

Screw, 3/8-16 x 1-1/4 In

$

$

Not available

13

Husqvarna 601000023

Washer

$

$

Not available

14

Husqvarna 601000060

Nut, 3/8-16 Thd
(Superseded to 601002407)

$

$

Not available

15

Husqvarna 601000032

Screw, 5/16-18 x 2 In

$

$

Not available

16

Husqvarna 601000656

Washer, Flat

$

$

Not available

17

Husqvarna 601000566

Washer, Friction

$

$

Not available

18

Husqvarna 601000108

Spring

$

$

Not available

19

Husqvarna 601000019

Washer, Flat

$5.49

$

In Stock, only 1 left!

0

20

Husqvarna 601000059

Nut, 5/16-18 Thd

$10.99

$

In Stock, only 2 left!

0

21

Husqvarna 601000380

Shift Link

$

$

Not available

22

Husqvarna 601000392

Spring, Torsion

$

$

Not available

23

Husqvarna 601000556

Trim
(Superseded to 601000739)

$

$

Not available

24

Husqvarna 601000044

Screw, Hx Hd, 1/2-20 x 1/2 In

$

$

Not available

25

Husqvarna 601000291

Hubcap, 8 In

$

$

Not available

26

Husqvarna 601000404

Mounting Block

$

$

Not available

27

Husqvarna 601000294

Clip, Hubcap

$

$

Not available

28

Tire and Wheel Assembly

Note: Order parts individually

$

$

Not available

28

Husqvarna 601000944

Tire, 15X6.0X6

$

$

Not available

28

Husqvarna 601000046

Wheel

$

$

Not available

28

Husqvarna 601000096

Valve System

$

$

Not available

29

Husqvarna 601000467

Hub Assembly

$

$

Not available

30

Husqvarna 601000885

U-Joint Assembly
(Superseded to 601000828)

$

$

Not available

31

Husqvarna 601000379

Mounting Block

$

$

Not available

32

Husqvarna 601000085

Screw, 5/16-18 x 4-1/2 In

$

$

Not available

33

Husqvarna 601000381

Hydrostatic Pump
(Superseded to 532121430)

$

$

Not available

34

Husqvarna 601000373

Shoulder Bolt

$

$

Not available

35

Husqvarna 601000098

Washer
(Superseded to 601002313)

$

$

Not available

36

Husqvarna 601000385

Rod- Relief Valve

$

$

Not available

37

Husqvarna 601000522

Pin, Grooved, 1/4 x 1 1/2 In

$

$

Not available

38

Husqvarna 601000468

Bracket, Steering Pivot, Outer

$

$

Not available

39

Husqvarna 601000043

Bearing

$

$

Not available

40

Husqvarna 601000469

Bearing

$

$

Not available

41

Husqvarna 601000550

Pin, Spring 1/4 x 1 1/2 In

$

$

Not available

42

Husqvarna 601000092

Washer, Flat

$

$

Not available

43

Husqvarna 601000038

Bushing, Shouldered

$

$

Not available

44

Husqvarna 601000042

Bushing, Shouldered

$

$

Not available

45

Husqvarna 601000039

Pin, Steering Hinge

$

$

Not available

46

Husqvarna 601000047

Bracket, Steering Pivot, Inner

$

$

Not available

47

Husqvarna 601000029

Screw, Hx Hd , 5/16-18 x 1 In

$

$

Not available

48

Husqvarna 601000733

Bracket, Transaxle Mounting

$

$

Not available

49

Husqvarna 601000886

Main Frame
(Superseded to 601000830)

$

$

Not available

50

Husqvarna 601000058

Screw, #10-32 x 1 /4 In

$

$

Not available

51

Husqvarna 601000378

Armspeed Control

$

$

Not available

52

Husqvarna 601000549

Pin, Spring

$

$

Not available

53

Husqvarna 601000401

Reservoir, Hydro

$

$

Not available

54

Husqvarna 601000067

Screw, 1/4-20x.62 Hhc

$

$

Not available

55

Husqvarna 601000014

Washer, Split Lock

$

$

Not available

56

Husqvarna 601000338

Fan

$

$

Not available

57

Husqvarna 601000887

Washer, flat .28x1.38x.07

$

$

Not available

58

Husqvarna 601000374

Nut, Pulley 1/2-20 and 1/4-20

$

$

Not available

59

Husqvarna 601000375

Pulley, Assy. Hydro

$

$

Not available

60

Husqvarna 601000380

Shift Rod

$

$

Not available

61

Husqvarna 601000377

Stabilizer Bracket

$

$

Not available

62

Husqvarna 601000888

Coupling

$

$

Not available

63

Transaxle

Note: See "Transaxle" illustration and parts list

$

$

Not available

64

Husqvarna 601000001

Set Screw

$

$

Not available

65

Husqvarna 601000889

Screw, 5/16-18x2 50 Hhc

$

$

Not available

66

Husqvarna 601000072

Screw, 5/16-18x 63 Hhc
(Superseded to 601000073)

$

$

Not available

67

Husqvarna 601000710

Arm, Rear Wheel Steer, L.H.

$

$

Not available

68

Husqvarna 601000890

Screw, 3/8-16x1 00 Wahhtap Blk

$

$

Not available

69

Husqvarna 601000451

Tie Rod, L.H.

$

$

Not available

70

Husqvarna 601000333

Tie Rod End, L.H.

$

$

Not available

71

Husqvarna 601000532

Nut, Hex, Ctrlk, 3/8-24

$

$

Not available

72

Husqvarna 601000048

Nut, Hex Jam, 3/8-24

$

$

Not available

73

Husqvarna 601000217

Rod, End

$

$

Not available

74

Husqvarna 601000452

Tie Rod End, R.H.

$

$

Not available

75

Husqvarna 601000709

Arm, Rear Wheel Steer, R.H.

$

$

Not available

76

Husqvarna 601000082

Screw, 3/8-24 x 1 3/4 In

$

$

Not available

77

Husqvarna 601000450

Spacer

$

$

Not available

78

Husqvarna 601000100

Washer, Flat 49/64 In

$

$

Not available

79

Husqvarna 601000340

Steering Pivot

$

$

Not available

80

Husqvarna 601000081

Screw, 3/8-24 x 1 1 /4 In

$

$

Not available

81

Husqvarna 601000454

Shaft, Steering Pivot

$

$

Not available

82

Husqvarna 601000536

Screw 5/16-24 x 1 In

$

$

Not available

83

Husqvarna 601000041

Bolt, Shoulder 3/8-24

$

$

Not available

84

Husqvarna 601000449

Rod Assembly, Rear Wheel Steer

$

$

Not available

85

Husqvarna 601000541

Washer, Flat 3/8 In

$

$

Not available

86

Husqvarna 601000520

Screw, Self-Tap 5/16-18 x 3/8 In

$

$

Not available

87

Husqvarna 601000570

Screw, 5/16-18x 88 Wahhtap

$

$

Not available

88

Husqvarna 601000175

Assembly Sector Gear

$

$

Not available

89

Husqvarna 601000176

Bushing, Sector Gear

$

$

Not available

90

Husqvarna 601000218

Screw, 1/2-20 x 2 3/8 In

$

$

Not available

91

Husqvarna 601000107

Nut, Hx, Ctrlk 1/2-20

$

$

Not available

92

Husqvarna 601000718

Plate, 4-Wheel Steer Pivot

$

$

Not available

93

Husqvarna 601000334

Nut, Jam 3/8-24

$

$

Not available

94

Husqvarna 601000203

Cam Yoke Roller

$

$

Not available

95

Husqvarna 601000169

Arm, Roller Swing

$

$

Not available

96

Husqvarna 601000205

Shoulder Bolt, Cam Roller

$

$

Not available

97

Husqvarna 601000167

Shoulder Bolt, Cam Follower Arm Pivot

$

$

Not available

98

Husqvarna 601000015

Washer, Split Lock

$

$

Not available

99

Husqvarna 601000547

Washer Flat

$

$

Not available

100

Husqvarna 601000459

Bracket, Rear Pivot

$

$

Not available

101

Husqvarna 601000891

Screw 1/4-20 x 3/4 In

$

$

Not available

102

Husqvarna 601000011

Nut 1/4-20

$

$

Not available

103

Husqvarna 601000147

Bearing Spindle

$

$

Not available

104

Husqvarna 601000540

Nut, 5/16-18 Locknut

$

$

Not available

105

Husqvarna 601000892

Cap, Memory Rod .38 ID x .75

$

$

Not available

106

Husqvarna 601000893

Hydro Brace

$

$
