415 (190-415-100) - Cub Cadet Hydraulic Valve Kit General Assembly Parts Diagram

Hydraulic Valve Kit

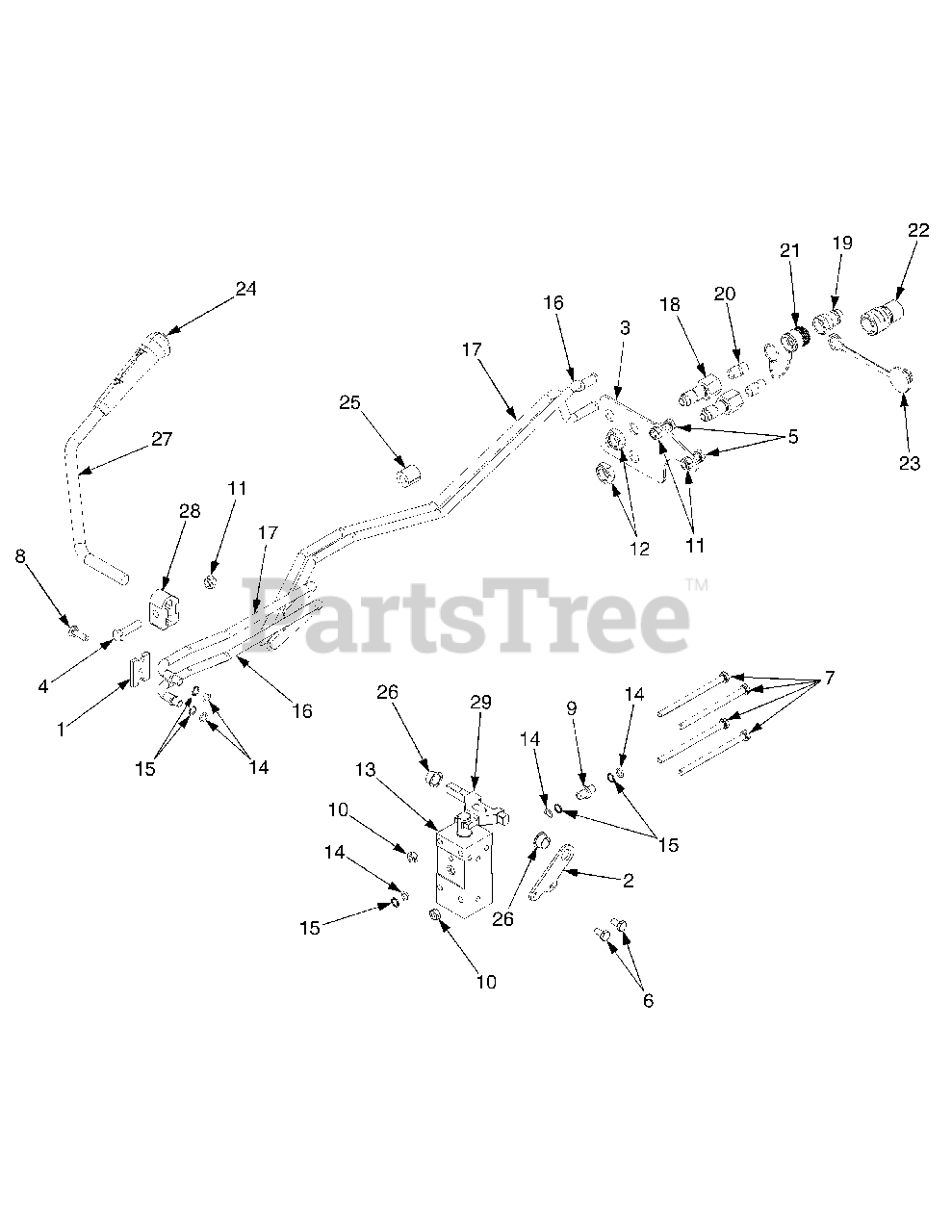

General Assembly Parts Diagram

  • Title

1

Cub Cadet 703-1803

Double Clamp
(Superseded to 903-1803)

$

$

Not available

2

Cub Cadet 703-3154-0637

Valve Bracket

$35.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-3442

Fitting Bulkhead

Variations

703-3442-0498

Cub Cadet 703-3442-0498

BULKHEAD-FITTING - OLD CUB YELLOW (0498)

$

$

Not available

703-3442-0637

Cub Cadet 703-3442-0637

BULKHEAD-FITTING - POWDER BLACK (0637)

$

$

Not available

703-3442-0716

Cub Cadet 703-3442-0716

BULKHEAD-FITTING - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

Cub Cadet 710-0528

Screw, Hex Cap, 5/16-18 x 1.25 GR5

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3025

Hex Cap Scrw, 5/16-18 x .625 GR5

$4.49

$

In Stock, Qty 7

0

6

Cub Cadet 710-3013

Hex Cap Screw, 1/4-20 x .5 GR5

$4.99

$

In Stock, Qty 7

0

7

Cub Cadet 710-1058

Hex Cap Screw, 1/4-20 x 4.0

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-3015

Hex Cap Scrw, 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 711-3294

Union Fitting

$

$

Not available

10

Cub Cadet 712-0291

Hex Lock Nut, 1/4-20

$4.99

$

In Stock, only 4 left!

0

11

Cub Cadet 712-0429

Hex Insert Lck Nut, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3035

Hex Jam Nut. 9/16-18 GR5

$7.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 717-3452

Hydraulic Valve
(Superseded to 717P3452)

$502.99

$

In Stock, only 1 left!

0

14

Cub Cadet 721-3021

O-Ring, .301 x .070
(Superseded to 921-3021)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 721-0492

Backup O-Ring, .327 x .43 x .049

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 727-3141

Hydraulic Tube,(Up)

$117.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 727-3142

Hydraulic Tube (Down)

$124.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 727-3145

Bulkhead Fitting

$

$

Not available

19

Cub Cadet 727-3023

Hydraulic Coupling - Male

$51.99

$

In Stock, only 3 left!

0

20

Cub Cadet 727-3170

Fitting Nipple

$

$

Not available

21

Cub Cadet 727-3024

Male Coupling Protective Cap

$57.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 727-3014

Hydraulic Coupling - Female

$112.99

$

In Stock, only 1 left!

0

23

Cub Cadet 731-3022

Female Coupling Protective Cap

$21.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 731-3259

Knob

$20.99

$

In Stock, only 1 left!

0

25

Cub Cadet 735-3007

Bumper Pad
(Superseded to 935-3007)

$8.99

$

In Stock, only 3 left!

0

26

Cub Cadet 741-0491

Nylon Flange Bearing

$5.49

$

In Stock, Qty 10

0

27

Cub Cadet 747-3350A

Valve Handle

$44.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 748-3082

Handle Clamp

$38.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 748-3081A

Lift Link

$46.99

$

Usually ships in 3-6 days

0
