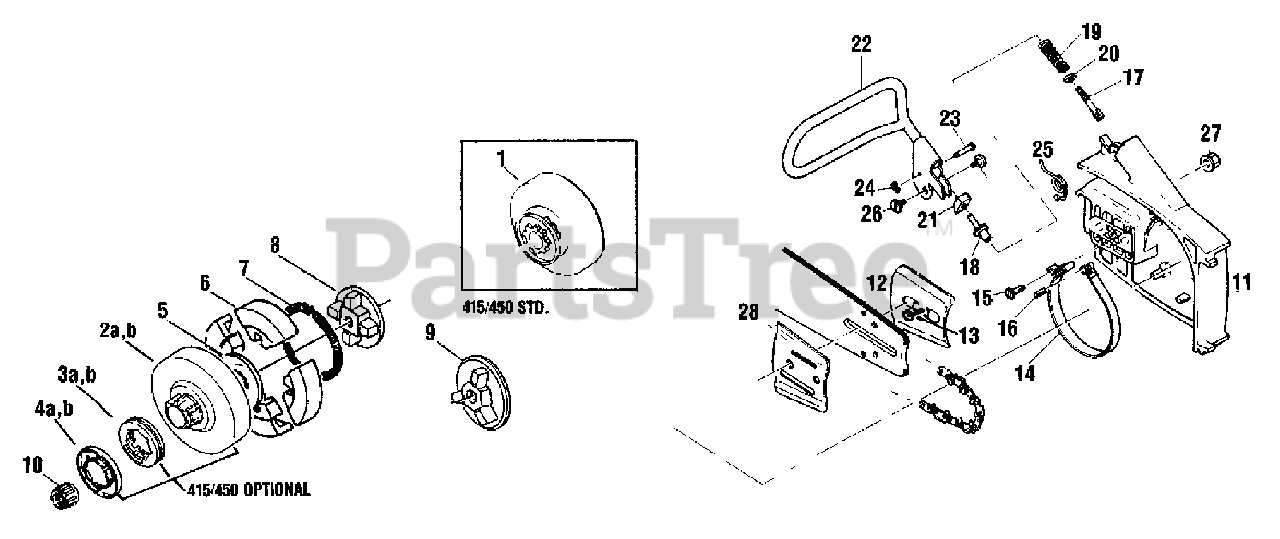

415 - Shindaiwa Chainsaw Clutch, Cutting Equipment Parts Diagram

Chainsaw

Clutch, Cutting Equipment Parts Diagram

  • Title

1

Echo 22120-51111

DRUM, CLUTCH
(Superseded to A556001100)

Note: Standard

$

$

Not available

Echo 22131-98100

CLUTCH DRUM ASSY - 3/8" RIM
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

2A

DRUM, CLUTCH

Note: Order P/N 22131-98100

$

$

Not available

3A

Echo 22131-98120

SPROCKET, RIM
(Superseded to 17511412530)

$22.99

$

In Stock, Qty 6

0

4A

Echo 22131-98130

COVER, RING
(Superseded to Discontinued)

$

$

Not available

Echo 22131-98300

CLUTCH DRUM ASSY

Note: OPTIONAL

$77.99

$

Usually ships in 2-4 days

0

2B

DRUM, CLUTCH

Note: Order P/N 22131-98300

$

$

Not available

3B

Echo 22131-98310

SPROCKET, RIM

$14.99

$

Usually ships in 2-4 days

0

4B

Echo 22131-98130

COVER, RING
(Superseded to Discontinued)

$

$

Not available

Echo 22120-51200

CLUTCH ASSY

Note: For 415/450

$58.99

$

Usually ships in 2-4 days

0

5

Echo 22120-51210

HUB, CLUTCH
(Superseded to A552000310)

Note: 3 And 4

$9.99

$

Usually ships in 2-4 days

0

6

Echo 22100-51220

SHOE, CLUTCH
(Superseded to A555000170)

$12.99

$

Usually ships in 2-4 days

0

7

Echo 22102-51230

SPRING, CLUTCH
(Superseded to V451000890)

Note: 3 And 4

$4.99

$

Usually ships in 2-4 days

0

8

Echo 22100-51240

HUB, CLUTCH - OUTER
(Superseded to A552000320)

$18.99

$

Usually ships in 2-4 days

0

Echo 22131-51200

CLUTCH ASSY

$67.99

$

Usually ships in 2-4 days

0

9

Echo 22104-51240

HUB, CLUTCH - OUTER

$24.99

$

In Stock, only 1 left!

0

10

Echo 22102-51310

BEARING, NEEDLE
(Superseded to V555000110)

$10.99

$

Usually ships in 2-4 days

0

Echo 99900-00203

CHAIN BRAKE ASSY

$

$

Currently unavailable

11

Echo 99900-00204

CLUTCH COVER ASSY
(Superseded to Discontinued)

$

$

Not available

------------------

COVER, CLUTCH

$

$

Not available

12

Echo 22100-53121

PLATE, GUIDE - OUTER
(Superseded to Discontinued)

$

$

Not available

13

Echo 1710025480

RIVET

$

$

Currently unavailable

14

Echo 22120-54210

BAND, BRAKE

$

$

Currently unavailable

15

Echo 22120-54220

BOLT
(Superseded to V203001430)

$1.99

$

In Stock, only 4 left!

0

16

Echo 22120-54230

PIN - SPRING

$1.49

$

Usually ships in 2-4 days

0

17

Echo 22120-54310

ROD, ADJUST

$

$

Currently unavailable

18

Echo 22120-54320

SCREW, ADJUST

$

$

Currently unavailable

19

Echo 22120-54330

SPRING, BRAKE

$1.99

$

Usually ships in 2-4 days

0

20

Echo 22120-54340

WASHER

$1.99

$

Usually ships in 2-4 days

0

21

Echo 22120-54410

BLOCK

$7.99

$

Usually ships in 2-4 days

0

22

Echo 22120-54510

LEVER
(Superseded to Discontinued)

$

$

Not available

23

Echo 22135-54520

PIN - STOPPER
(Superseded to V641000190)

$

$

Not available

24

Echo 22120-54530

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

25

Echo 22135-54540

RELIEF SPRING

$2.49

$

Usually ships in 2-4 days

0

26

Echo 22120-54550

BOLT, LEVER

$5.99

$

Usually ships in 2-4 days

0

27

Echo 22120-53210

NUT
(Superseded to V265000190)

$1.99

$

Usually ships in 2-4 days

0

28

Echo 22100-53340

PLATE, GUIDE - INNER
(Superseded to Discontinued)

$

$

Not available
