4150 (86059) - Snapper Walk-Behind Trimmer 4150R.T. Primer Pump, Filter, And Fuel Tank Parts Diagram

Walk-Behind Trimmer

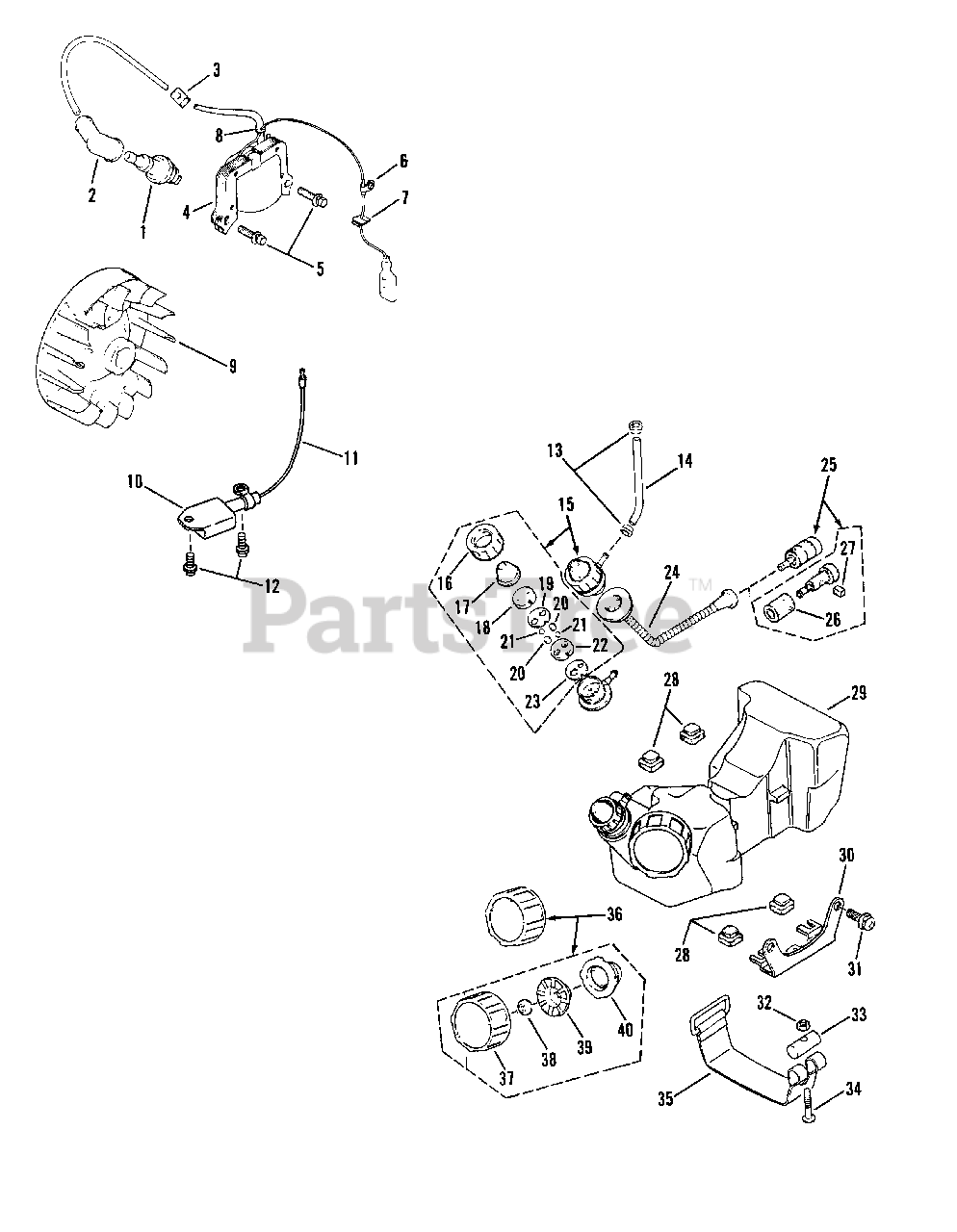

4150R.T. Primer Pump, Filter, And Fuel Tank Parts Diagram

  • Title

1

Snapper 68025

SPARK PLUG (NGK:BM-6A)

$

$

Currently unavailable

2

Snapper 7044031

BOOT, Spark Plug

$

$

Currently unavailable

3

Snapper 7044030

BUSHING, Dust Seal

$

$

Currently unavailable

4

Snapper 7044033

COIL, Ignition

Note: (Includes items 6 & 8)

$

$

Not available

5

Snapper 7044034

BOLT

$

$

Currently unavailable

6

Snapper 7044038

CLAMP

$

$

Currently unavailable

7

Snapper 7044039

BUSHING, Dust Seal

$

$

Currently unavailable

8

Snapper 7012080

BAND
(Superseded to 7012080SM)

Note: Was 44046

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7044151

FLYWHEEL

$

$

Currently unavailable

10

Snapper 44152

MTI Unit

$

$

Currently unavailable

11

Snapper 7044153

WIRE, Lead

$

$

Currently unavailable

12

Snapper 7044148

SCREW

$

$

Currently unavailable

13

Snapper 7044127

CLIP, Fuel Tube

$

$

Not available

14

Snapper 7044128

TUBE, Fuel

$

$

Not available

15

Snapper 7044129

PRIMER PUMP ASSM'Y.

Note: (Includes items 16 thru 23)

$

$

Not available

16

Snapper 7044090

CAP, Pump

$

$

Not available

17

Snapper 7044118

CAP, Rubber

$

$

Not available

18

Snapper 7044119

SEAT, Valve B

$

$

Not available

19

Snapper 7044120

GASKET

$

$

Not available

20

Snapper 7044121

SPONGE

$

$

Not available

21

Snapper 7044122

BALL

$

$

Not available

22

Snapper 7044123

SEAT, Valve A

$

$

Not available

23

Snapper 7044124

GASKET

$

$

Not available

24

Snapper 7044130

HOSE, Fuel

$

$

Not available

25

Snapper 7044125

FILTER ASSM'Y.,Fuel

Note: (Includes items 26 & 27)

$

$

Not available

26

Snapper 7044143

FILTER

$

$

Not available

27

Snapper 7044144

SPONGE

$

$

Not available

28

Snapper 7044126

PAD

$

$

Not available

29

Snapper 44292

TANK ASSM'Y.,Fuel

Note: (Includes items 13, 14, 15 & 24, 25, 36)

$

$

Currently unavailable

30

Snapper 7044137

HANGER, Tank

$

$

Not available

31

Snapper 7044104

SCREW, Hanger

$

$

Currently unavailable

32

Snapper 7044139

NUT

$

$

Not available

33

Snapper 7044140

BAR, Band Support

$

$

Not available

34

Snapper 7044142

SCREW

$1.99

$

In Stock, only 1 left!

0

35

Snapper 7044141

BAND, Tank

$

$

Not available

36

Snapper 7044150

CAP ASSM'Y.,Fuel

Note: (Includes items 37 thru 40)

$

$

Not available

37

Snapper 7044150

CAP, Fuel

Note: Was 44149

$

$

Not available

38

Snapper 7044133

VALVE

$

$

Not available

39

Snapper 7044134

HOLDER

$

$

Currently unavailable

40

Snapper 7044150

GASKET

Note: Was 44135

$

$

Not available
