416 H (1600261) - AGCO Lawn Tractor, 16hp Controls Group - Hydrostatic Transmission (1506I27) Parts Diagram

Lawn Tractor, 16hp

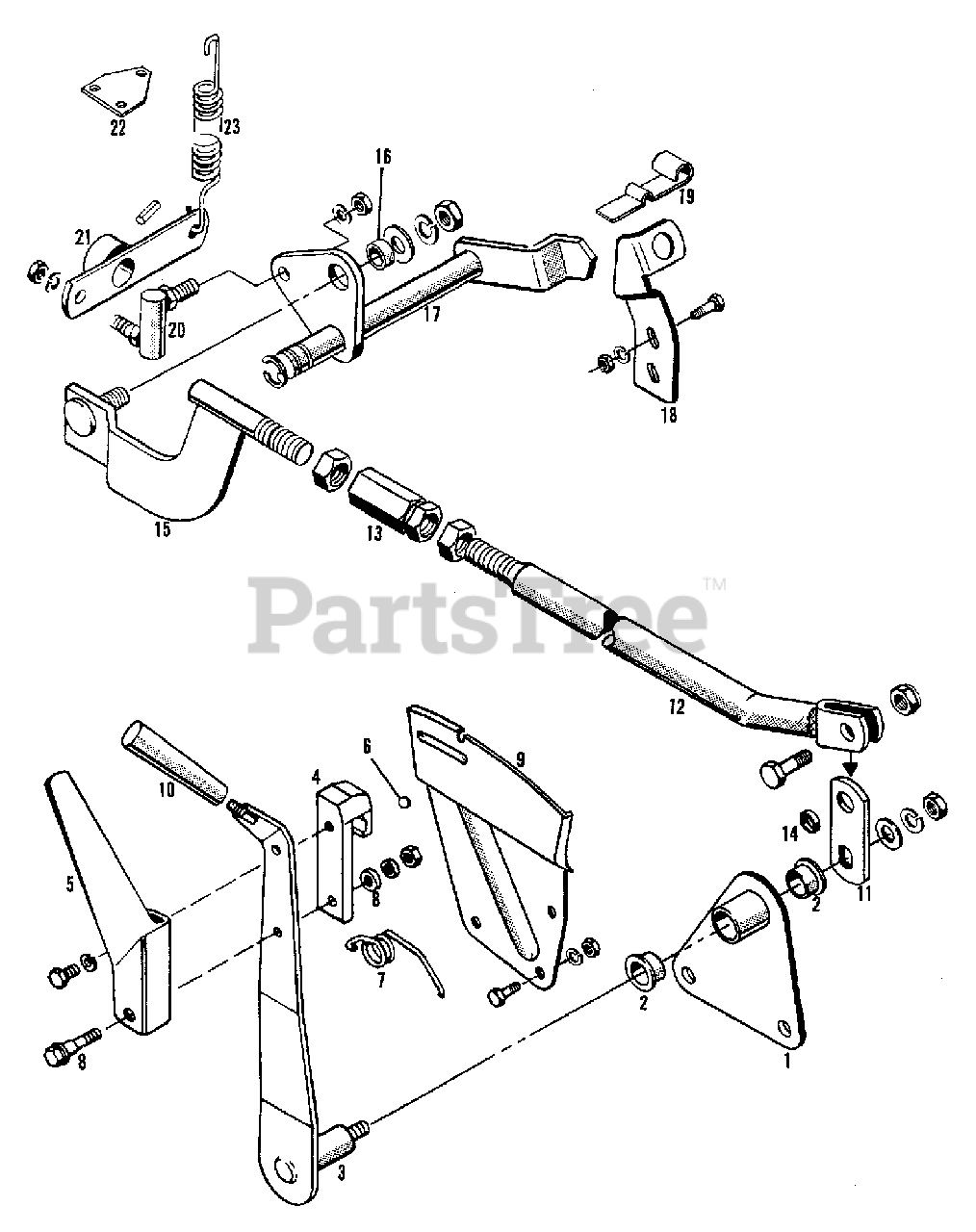

Controls Group - Hydrostatic Transmission (1506I27) Parts Diagram

  • Title

1

Simplicity 1607974

BRACKET ASSEMBLY, Support

$

$

Not available

1

Simplicity 2824856

SCREW, 5/16NC x 1/2

$

$

Not available

2

Simplicity 1663114SM

BUSHING, Flanged

$4.49

$

In Stock, only 2 left!

0

3

Simplicity 1607982

LEVER ASSEMBLY, Control

$

$

Not available

4

Simplicity 2028580

CLAMP, Stop

$

$

Not available

4

Simplicity 2821958

CAPSCREW, 1/4NC x 1/2

$

$

Not available

4

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

5

Simplicity 1607983

HANDLE, Trip

$

$

Not available

6

Simplicity 2027588

BALL, Shift Handle

$

$

Not available

7

Simplicity 2027492

SPRING

$

$

Not available

8

Simplicity 2027493

SPACER

$

$

Not available

8

Simplicity 2027494

BOLT, Shoulder

$

$

Not available

8

Simplicity 2817377

WASHER, 1/4

$

$

Not available

8

Simplicity 2818004

NUT, 1/4NC-Lock

$

$

Not available

9

Simplicity 1602917

PLATE, Support

$

$

Not available

9

Simplicity 2807727

CAPSCREW, 1/4NC x 5/8

$

$

Not available

9

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

9

Simplicity 2817867

NUT, 1/4NC-Speed

$

$

Not available

10

Simplicity 2028579

HANDLE

$

$

Not available

10

Simplicity 2822125

SCREW, 1/4NC x 7/8

$

$

Not available

11

Simplicity 1602460

ARM

$

$

Not available

11

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

11

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

11

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

11

Simplicity 2818006

NUT, 3/8NC-Lock

$

$

Not available

12

Simplicity 1602913

ROD ASSEMBLY, Front Control

$

$

Not available

12

Simplicity 923869

WASHER, .281 x .625 x 18 GA.

$

$

Not available

13

Simplicity 1602921

TURNBUCKLE

$

$

Not available

13

Simplicity 1603022

NUT, 1/2NF-L.H. Thread

$

$

Not available

13

Simplicity 919423

NUT, 1/2NF Standard Thread

$

$

Not available

14

Simplicity 1604501

SPACER

$

$

Not available

15

Simplicity 1609149

ROD ASSEMBLY, Rear Control (Prior S/N 26141001) (Shown)

$

$

Not available

15

Simplicity 1609149

ROD ASSEMBLY, Rear Control (Eff. S/N 26141001 & Up)

$

$

Not available

16

Simplicity 2027500

SPACER

$

$

Not available

16

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

16

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

17

Simplicity 1602924

*SHAFT ASSEMBLY, Control (Prior S/N 26141001)(Shown)

$

$

Not available

17

Simplicity 1609143

SHAFT ASSEMBLY, Control (Eff. S/N 26141001 & Up)

$

$

Not available

17

Simplicity 2827793SM

RING, 5/8 Shaft Diameter Snap
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

18

Simplicity 1608521

SUPPORT, Switch

$

$

Not available

18

Simplicity 921662

CAPSCREW, 5/16NC x 3/4

$

$

Not available

18

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1608522

CLIP, Switch

$

$

Not available

19

Simplicity 1608080

BOLT, Shoulder

$

$

Not available

19

Simplicity 2817642

WASHER, 5/16

$

$

Not available

19

Simplicity 1916965SM

LOCKWASHER, 5/16
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

19

Simplicity 2817421

NUT, 3/8NC

$

$

Not available

20

Simplicity 2027502

JOINT, Ball (Double End)

$

$

Not available

21

Simplicity 2027503

LINK ASSEMBLY, Control

$

$

Not available

21

Simplicity 2816937SM

PIN, 1/4 x 1-1/4-Spring

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 2820263SM

NUT, 5/16NF
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 2027504

CLIP, Spring

$

$

Not available

23

Simplicity 2026495

SPRING, Latch

$

$

Not available

23

Simplicity 917452

SCREW, #10NF x 1/2 Round Head Mach.

$

$

Not available
