416 H (1600261) - AGCO Lawn Tractor, 16hp Plow Group - 10" (1506I51) Parts Diagram

Lawn Tractor, 16hp

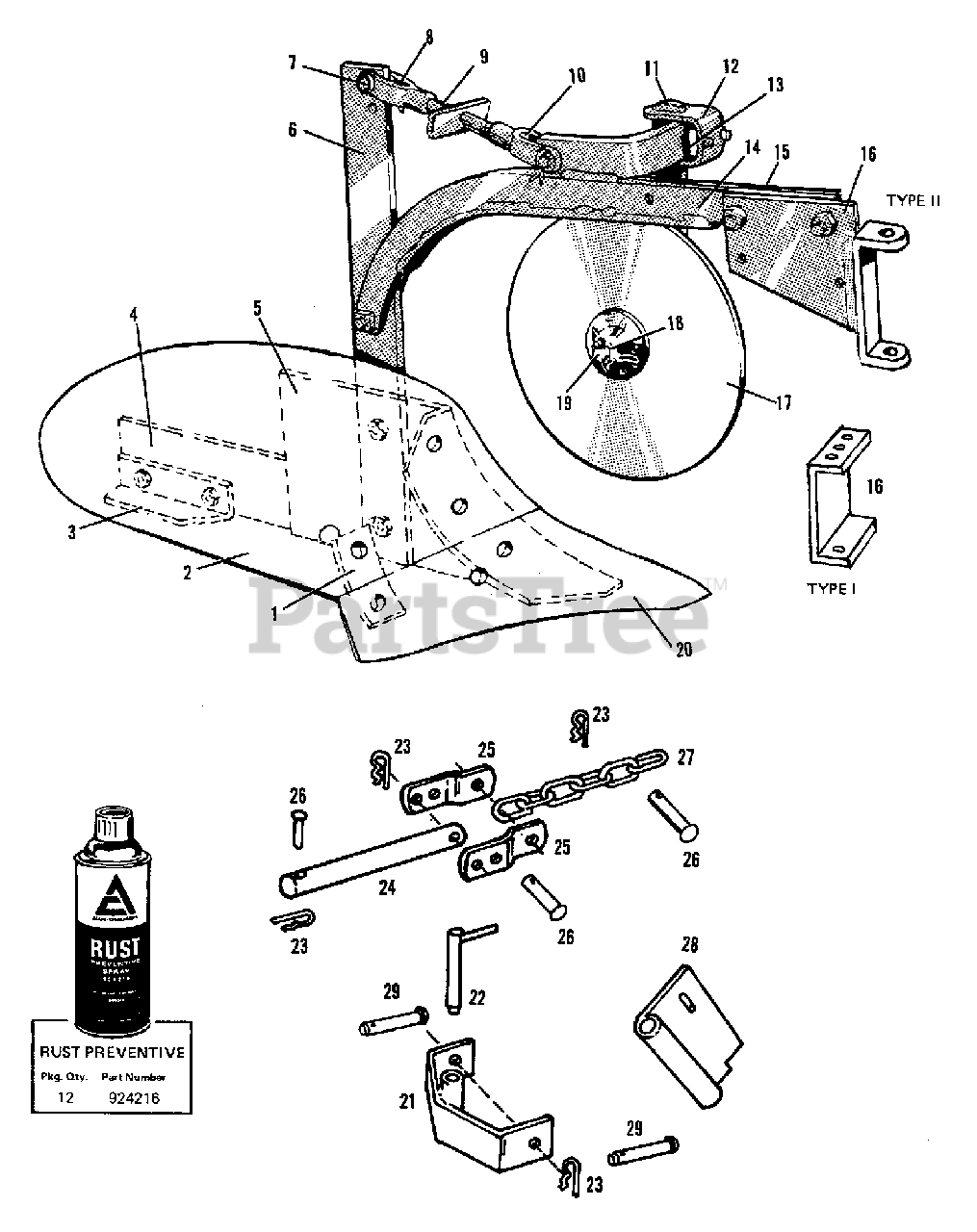

Plow Group - 10" (1506I51) Parts Diagram

  • Title

1

Simplicity 2025418

BRACE, Moldboard

$

$

Not available

1

Simplicity 922114

BOLT, Plow, 7/16NC x 1-1/4

$

$

Not available

1

Simplicity 2818213

NUT, Square, 7/16NC

$

$

Not available

2

Simplicity 2025417

MOLDBOARD

$

$

Not available

3

Simplicity 2025419

ANGLE, Slip Heel

$

$

Not available

3

Simplicity 922114

BOLT, Plow, 7/16NC x 1-1/4

$

$

Not available

3

Simplicity 2818213

NUT, Square, 7/16NC

$

$

Not available

4

Simplicity 2025416

LANDSIDE

$

$

Not available

5

Simplicity 2025415

SADDLE

$

$

Not available

5

Simplicity 922114

BOLT, Plow, 7/16NC x 1-1/4

$

$

Not available

5

Simplicity 2818213

NUT, Square, 7/16NC

$

$

Not available

5

Simplicity 921560

BOLT, Plow, 1/2NC x 1-1/2 (For Type II Hitch)

$

$

Not available

5

Simplicity 2717026

NUT, Square (For Type II Hitch)

$

$

Not available

6

Simplicity 2025401

STANDARD

$

$

Not available

6

Simplicity 921560

BOLT, Plow, 1/2NC x 1-1/2

$

$

Not available

6

Simplicity 2816951

NUT, 1/2NC

$

$

Not available

6

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

7

Simplicity 2025406

PIN, Yoke

$

$

Not available

7

Simplicity 2818452

PIN, Clip, Safety

$

$

Not available

7

Simplicity 2087544

PIN, (For Type II)(Shown)

$

$

Not available

8

Simplicity 2025404

YOKE, Rod, L.H.

$

$

Not available

8

Simplicity 2818935

NUT, 5/8NC

$

$

Not available

9

Simplicity 2025403

ROD ASSEMBLY, Yoke

$

$

Not available

10

Simplicity 2025405

YOKE, Rod, R.H.

$

$

Not available

11

Simplicity 2025409

STANDARD, Coulter

$

$

Not available

12

Simplicity 2025769

CLAMP, Coulter Standard

$

$

Not available

12

Simplicity 2025825

SETSCREW, 3/8NC x 1, Square Head Cup Point

$

$

Not available

13

Simplicity 2025756

NUT, Special

$

$

Not available

14

Simplicity 2026723

BEAM ASSEMBLY, Plow

$

$

Not available

14

Simplicity 2819089

CASPCREW, 1/2NC x 1-3/4 (To Standard)

$

$

Not available

14

Simplicity 2816951

NUT, 1/2NC (To Standard)

$

$

Not available

14

Simplicity 2822130

CAPSCREW, 3/8NC x 2-1/4 (To End Assembly)

$

$

Not available

14

Simplicity 2816950SM

NUT, 3/8NC (To End Assembly)
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

14

Simplicity 1916965SM

LOCKWASHER, 3/8 (To End Assembly)
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

15

Simplicity 2025993

SPACER, Plow Beam

$

$

Not available

16

Simplicity 1606309

END ASSEMBLY, Plow Beam (Type I)

$

$

Not available

16

Simplicity 2025407

END ASSEMBLY, Plow Beam (Type II)

$

$

Not available

17

Simplicity 2025400

COULTER ASSEMBLY, (Includes BUSHING)

$

$

Not available

17

Simplicity 2027865

BUSHING

$

$

Not available

17

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

17

Simplicity 9002040

FITTING, Lube, 1/4 (Package of 10)

$

$

Not available

17

Simplicity 2818935

NUT, 5/8NC

$

$

Not available

18

Simplicity 2025759

WASHER, Coulter

$

$

Not available

19

Simplicity 2025410

SPINDLE, Wheel

$

$

Not available

20

Simplicity 2025414

SHARE, Plow

$

$

Not available

21

Simplicity 2025408

CLEVER ASSEMBLY, Hitch (Type II Plow Hitch)

$

$

Not available

22

Simplicity 2025728

PIN ASSEMBLY, Hitch (Type II Plow Hitch)

$

$

Not available

23

Simplicity 9002801

CLIP, Spring (Type II Plow Hitch)

$

$

Not available

24

Simplicity 2025411

PIN, Plow Lift (Type II Plow Hitch)

$

$

Not available

25

Simplicity 2025412

BRACKET (Type II Plow Hitch)

$

$

Not available

26

Simplicity 2025429

PIN, 2" (Type II Plow Hitch)

$

$

Not available

27

Simplicity 2025413

CHAIN (Type II Plow Hitch)

$

$

Not available

27

Simplicity 2821969

CAPSCREW, 3/8NC x 1-1/2 (Type II Plow Hitch)

$

$

Not available

27

Simplicity 1924940SM

WASHER, 3/8 (Type II Plow Hitch)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 1916965SM

LOCKWASHER, 3/8 (Type II Plow Hitch)
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

27

Simplicity 2816950SM

NUT, 3/8NC (Type II Plow Hitch)
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

28

Simplicity 2027217

SUPPORT ASSEMBLY (Type II Plow Hitch)

$

$

Not available

29

Simplicity 2026010

PIN, 1-3/4 (Type II Plow Hitch)

$

$

Not available
