416 S (1600260) - AGCO Lawn Tractor, 16hp 42" Snow Plow & Dozer Blade (1506I57) Parts Diagram

Lawn Tractor, 16hp

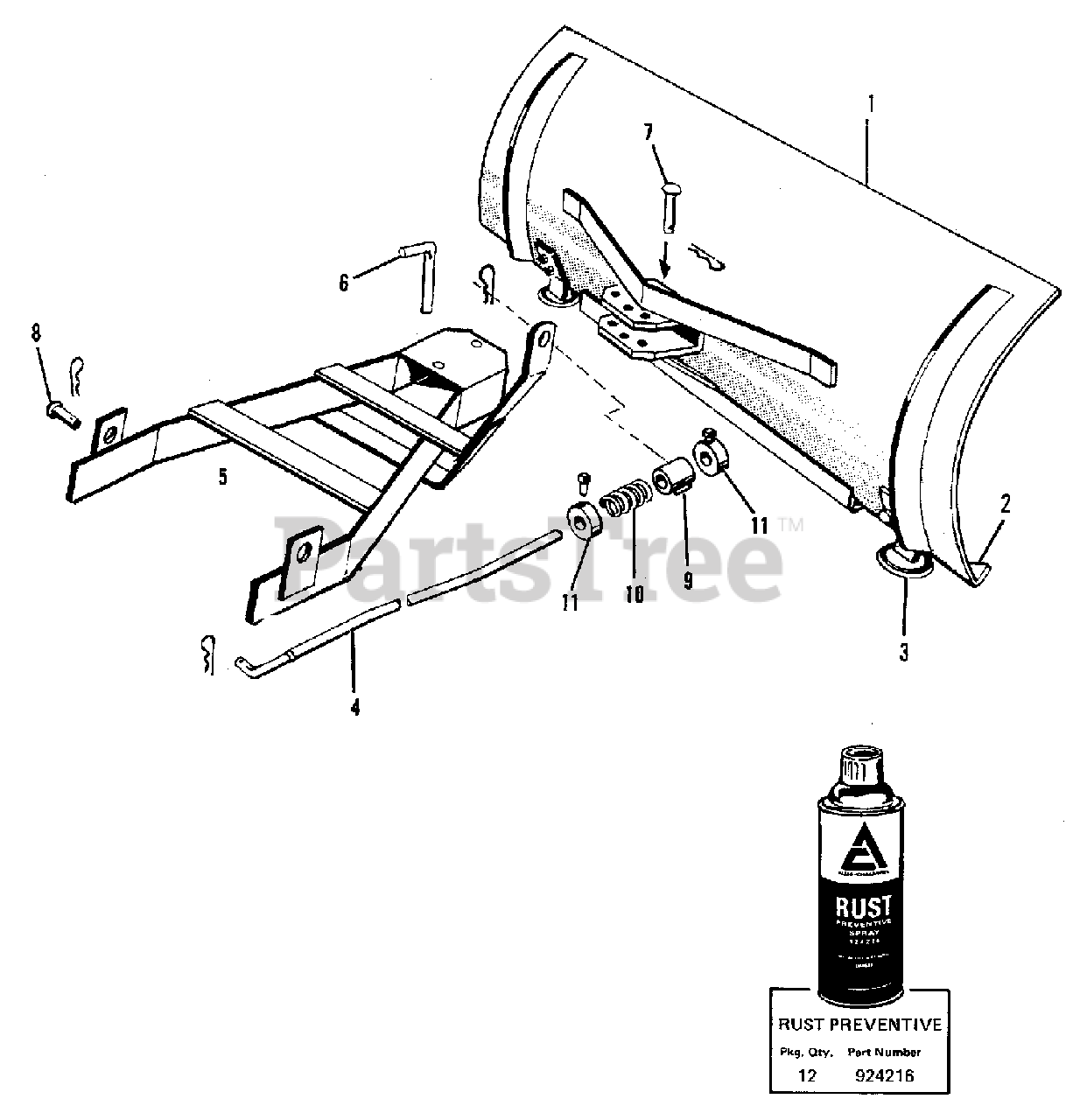

42" Snow Plow & Dozer Blade (1506I57) Parts Diagram

  • Title

1

Simplicity 2025334

BLADE ASSEMBLY, 42"

$

$

Not available

2

Simplicity 2025332

PLATE, Wear

$

$

Not available

2

Simplicity 2823347

BOLT, 3/8NC x 3/4

$

$

Not available

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

2

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

3

Simplicity 2025330

SHOE ASSEMBLY, Blade

$

$

Not available

3

Simplicity 2823232

BOLT, 3/8NC x 1

$

$

Not available

3

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

3

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

4

Simplicity 1666285SM

ROD, Lift

$104.99

$

Usually ships in 2-12 days

0

4

Simplicity 9002802

PIN, Quick

$

$

Not available

5

Simplicity 1607911SM

FRAME ASSEMBLY, Push Bar

$

$

Not available

6

Simplicity 2025749

PIN, Pivot

$

$

Not available

7

Simplicity 2025750

PIN, King

$

$

Not available

7

Simplicity 9002802

PIN, Quick

$

$

Not available

8

Simplicity 2025429

PIN, Hitch

$

$

Not available

8

Simplicity 9002802

PIN, Quick

$

$

Not available

9

Simplicity 2027921

GUIDE ASSEMBLY, Rod

$

$

Not available

10

Simplicity 2029313

SPRING

$

$

Not available

11

Simplicity 2027920

COLLAR, Set

$

$

Not available

11

Simplicity 2025826

SETSCREW, 5/16NC x 1/2, GR8 (Square Head Cup Point)

$

$

Not available

11

Simplicity 2816960

WASHER, 17/32 x 1-1/4 x 16 Ga.

$

$

Not available
