416 S (1600260) - AGCO Lawn Tractor, 16hp Front PTO Group - Electric (1506I07) Parts Diagram

Lawn Tractor, 16hp

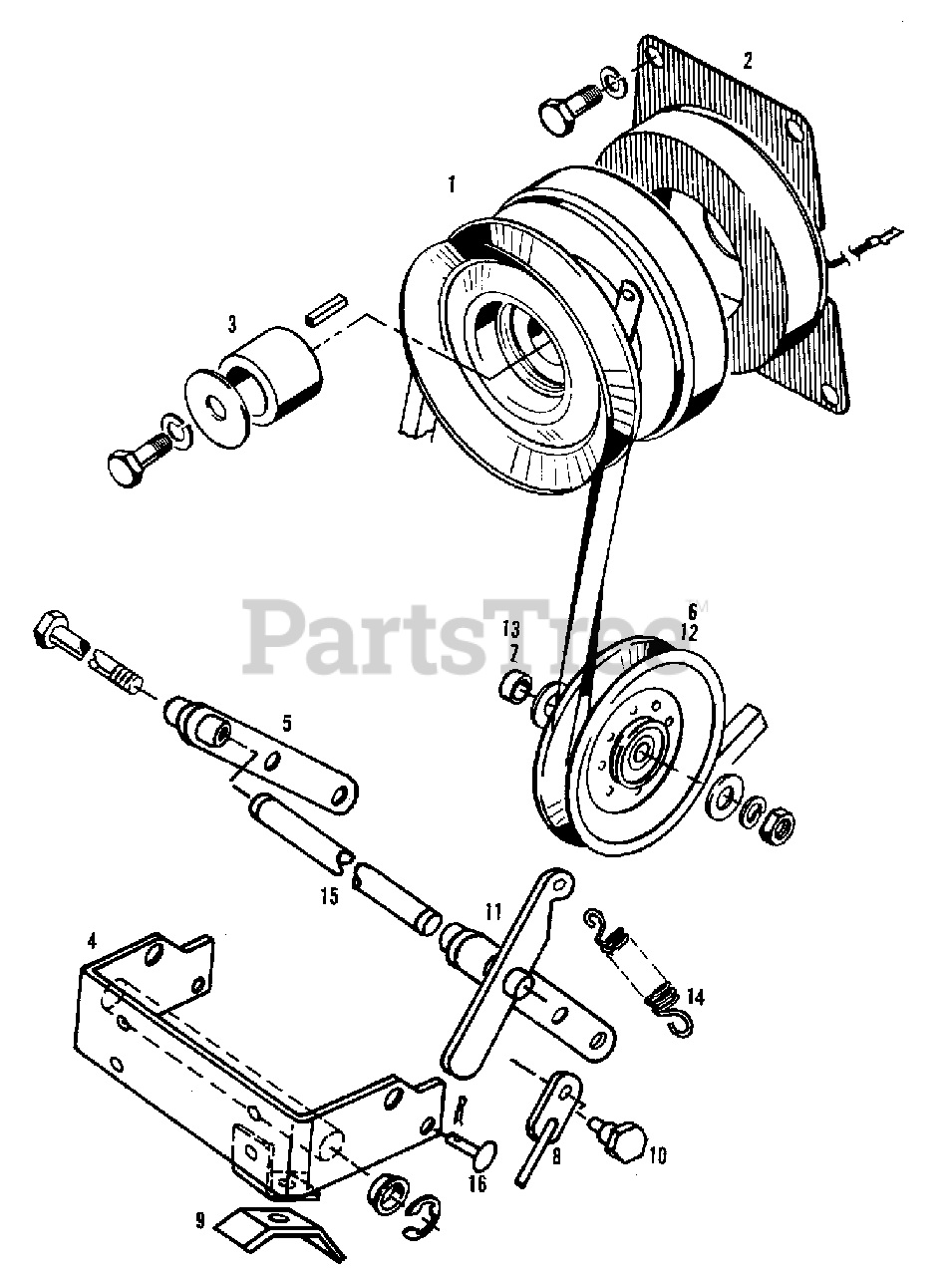

Front PTO Group - Electric (1506I07) Parts Diagram

  • Title

1

Simplicity 1602839

HUB, Electric Clutch

$

$

Not available

1

Simplicity 2828712SM

KEY, 1/4 x 1/4 x 5/8 Parallel

$3.49

$

Usually ships in 2-12 days

0

2

Simplicity 1602840SM

COIL, Clutch

$

$

Not available

3

Simplicity 1602843

SPACER

$

$

Not available

3

Simplicity 924919

WASHER, 1/2 x 1-1/2 x 10 Ga.

$

$

Not available

3

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

3

Simplicity 922380

CAPSCREW, 7/16NF x 1-1/4

$

$

Not available

3

Simplicity 2828711

CAPSCREW, 7/16NC x 5/8

$

$

Not available

4

Simplicity 1607810

BRACKET ASSEMBLY, P.T.O.

$

$

Not available

5

Simplicity 1607802

ARM ASSEMBLY, Idler

$

$

Not available

6

Simplicity 2026320

PULLEY, Idler

$

$

Not available

7

Simplicity 2025593

SPACER

$

$

Not available

7

Simplicity 2821971

CAPSCREW, 3/8NC x 1-3/4

$

$

Not available

7

Simplicity 2824940

WASHER, 13/32 x 7/8 x 14 GA

$

$

Not available

7

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

7

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

8

Simplicity 1608538

LINK, Adjusting

$

$

Not available

8

Simplicity 913901

NUT, 7/16NF

$

$

Not available

8

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

9

Simplicity 1608542

NUT, Wing

$

$

Not available

10

Simplicity 2028101

BOLT, Shoulder

$

$

Not available

10

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

10

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

11

Simplicity 1607806

LEVER ASSEMBLY

$

$

Not available

12

Simplicity 2028453

PULLEY, Idler

$

$

Not available

13

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 4 left!

0

13

Simplicity 2821971

CAPSCREW, 3/8NC x 1-3/4

$

$

Not available

13

Simplicity 2824940

WASHER, 13/32 x 7/8 x 14 GA

$

$

Not available

13

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

13

Simplicity 2816001SM

PIN, 3/16 x 1

$4.49

$

In Stock, only 1 left!

0

13

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

14

Simplicity 1607811

SPRING, P.T.O. Extension

$

$

Not available

15

Simplicity 1607801

SHAFT, Idler Support

$

$

Not available

15

Simplicity 2819387

WASHER, .641 x 1-1/4 x 16 Ga.

$

$

Not available

16

Simplicity 2026849

PIN, 3/8 x 1-1/2 Round Head

$

$

Not available

16

Simplicity 9002801

PIN, Quick Hitch

$

$

Not available

17

Simplicity 1608001

TRANSFER P.T.O.

$

$

Not available
