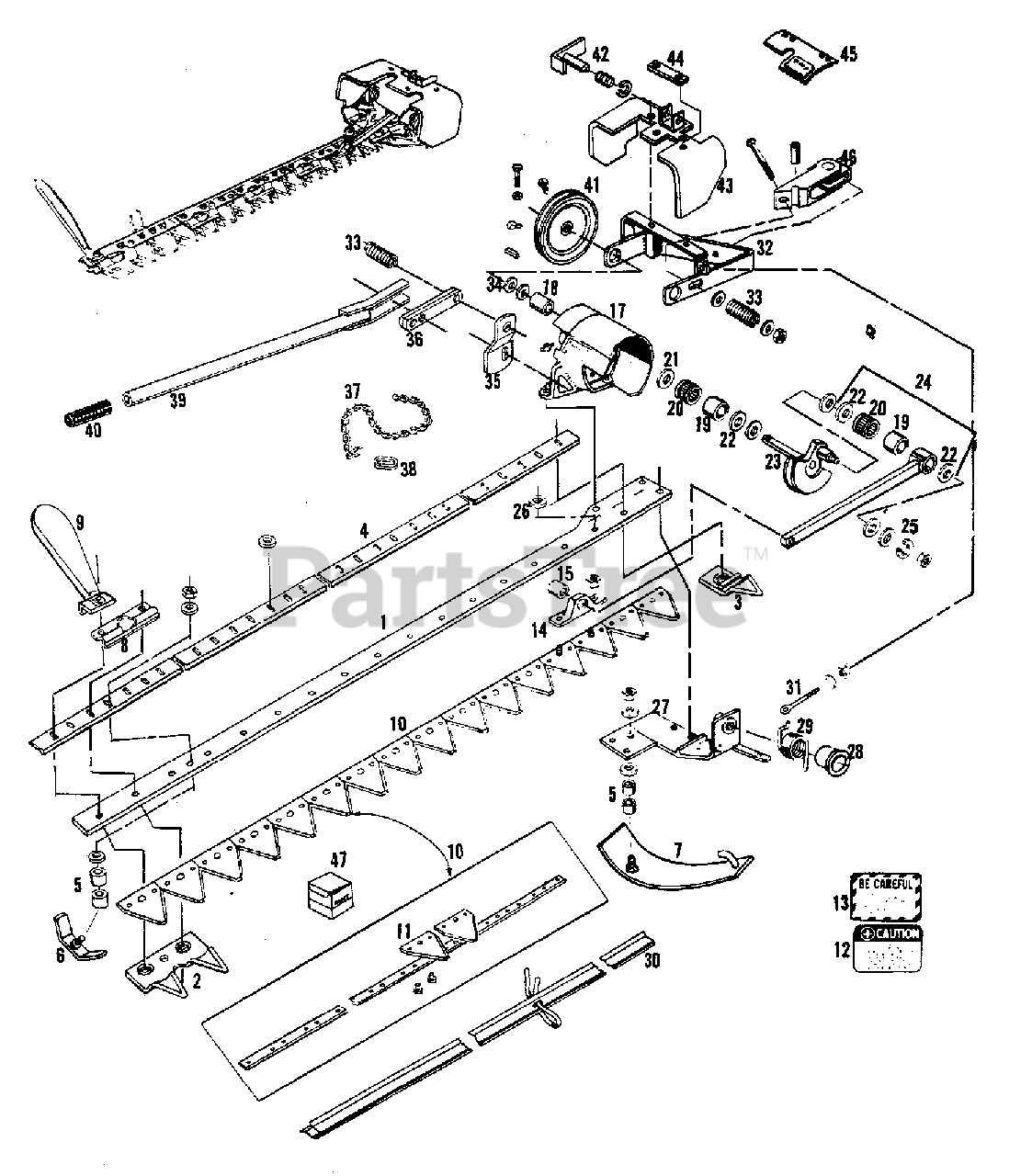

416 S (1600260) - AGCO Lawn Tractor, 16hp Sickle Group (1506I42) Parts Diagram

Lawn Tractor, 16hp

Sickle Group (1506I42) Parts Diagram

  • Title

1

Simplicity 2068051

BAR, Sickle

$

$

Not available

2

Simplicity 2068052

FINGER, Shear

$

$

Not available

2

Simplicity 922098

BOLT, 7/16NC x 1-1/2, Carriage

$

$

Not available

2

Simplicity 924325

BOLT, 7/16NC x 1-3/4, Carriage

$

$

Not available

2

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

2

Simplicity 2818213

NUT, 7/16NC

$

$

Not available

3

Simplicity 2068053

FINGER, Shear

$

$

Not available

3

Simplicity 922098

BOLT, 7/16NC x 1-1/2, Carriage

$

$

Not available

3

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

3

Simplicity 2818213

NUT, 7/16NC

$

$

Not available

4

Simplicity 2068054

PLATE, Wear

$

$

Not available

4

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 2068062

SPACER, 1/2" Long

$

$

Not available

5

Simplicity 2818430

WASHER, 7/16

$

$

Not available

5

Simplicity 2813744

NUT, 1/2NC - Lock

$

$

Not available

6

Simplicity 2068061

SHOE, Outer

$

$

Not available

7

Simplicity 2068088

SHOE, Inner Skid

$

$

Not available

8

Simplicity 2068060

CLIP, Knife

$

$

Not available

9

Simplicity 2068063

DIVIDER, Grass

$

$

Not available

10

Simplicity 2068055

SICKLE ASSEMBLY (Includes KNIVES & RIVETS)

$

$

Not available

11

Simplicity 2068056

KNIFE, Sickle

$

$

Not available

11

Simplicity 2068057

RIVET

$

$

Not available

12

Simplicity 2068058

DECAL, Caution

$

$

Not available

13

Simplicity 2068059

DECAL, Be Careful

$

$

Not available

14

Simplicity 2068103

PIVOT

$

$

Not available

14

Simplicity 2068104

NUT, Cone

$

$

Not available

15

Simplicity 2068080

BUSHING

$

$

Not available

15

Simplicity 2819089

CAPSCREW, 1/2NC x 1-3/4

$

$

Not available

15

Simplicity 2818431

WASHER, 1/2

$

$

Not available

15

Simplicity 2813744

NUT, 1/2NC - Lock

$

$

Not available

15

Simplicity 2818430

WASHER, 7/16

$

$

Not available

17

Simplicity 2068064

HOUSING, Flywheel

$

$

Not available

17

Simplicity 9002040

FITTING, 1/4NF - Lube (Package Of 10)

$

$

Not available

17

Simplicity 2820328

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

17

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

18

Simplicity 2068065

BUSHING

$

$

Not available

19

Simplicity 2068066

BEARING, Outer Race

$

$

Not available

20

Simplicity 2068067

BEARING, Roller

$

$

Not available

21

Simplicity 2068068

WASHER, 1-5/16 x 15/16 x 11 Ga.

$

$

Not available

22

Simplicity 2068069

SEAL, Oil

$

$

Not available

23

Simplicity 2068070

CRANKSHAFT

$

$

Not available

24

Simplicity 2068071

PITMAN ASSEMBLY, Complete

$

$

Not available

24

Simplicity 9002040

FITTING, 1/4NF - Lube (Package Of 10)

$

$

Not available

25

Simplicity 2068073

WASHER, 15/16 x 1-1/2 x .0299

$

$

Not available

25

Simplicity 2818431

WASHER, 1/2

$

$

Not available

25

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

25

Simplicity 919423

NUT, 1/2NF

$

$

Not available

26

Simplicity 2068074

WASHER, 15/16 x 2 x .0299

$

$

Not available

27

Simplicity 2068075

BRACKET ASSEMBLY, Sickle Mounting

$

$

Not available

27

Simplicity 2820328

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

27

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

28

Simplicity 2068085

RETAINER

$

$

Not available

29

Simplicity 2068086

SPRING

$

$

Not available

29

Simplicity 2821360

CAPSCREW, 5/8NC x 2-1/4

$

$

Not available

29

Simplicity 2815726

NUT, 5/8NC

$

$

Not available

30

Simplicity 2068089

GUARD, Sickle Bar

$

$

Not available

30

Simplicity 2068090

STRAP, Guard

$

$

Not available

31

Simplicity 2068087

BOLT, Eye

$

$

Not available

31

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 2817421

NUT, 3/8NC - Lock

$

$

Not available

32

Simplicity 2068076

FRAME ASSEMBLY, Breakaway Pivot

$

$

Not available

32

Simplicity 921937

BOLT, 3/8NC x 3, Carriage

$

$

Not available

32

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

32

Simplicity 2817421

NUT, 3/8NC - Lock

$

$

Not available

33

Simplicity 2068078

SPRING

$

$

Not available

34

Simplicity 2068081

WASHER, 49/64 x 1-1/2 x .0598

$

$

Not available

35

Simplicity 2068098

STOP, Vertical

$

$

Not available

35

Simplicity 2821965

CAPSCREW, 3/8NC x 3/4

$

$

Not available

35

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

35

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

36

Simplicity 2068079

ARM, Lift

$

$

Not available

36

Simplicity 921937

BOLT 3/8NC x 3, Carriage

$

$

Not available

36

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

36

Simplicity 2817421

NUT, 3/8NC - Lock

$

$

Not available

37

Simplicity 2068091

CHAIN, Transport

$

$

Not available

38

Simplicity 2068092

ANCHOR, Chain

$

$

Not available

39

Simplicity 2068101

HANDLE, Lift

$

$

Not available

39

Simplicity 2821176

CAPSCREW, 1/2NC x 1-1/4

$

$

Not available

39

Simplicity 2816951

NUT, 1/2NC

$

$

Not available

39

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

40

Simplicity 2068100

GRIP, Handle

$

$

Not available

41

Simplicity 2068082

PULLEY, Crankshaft

$

$

Not available

41

Simplicity 2823085

SETSCREW, 5/16NC x 1/2, Square Head, Cup Point

$

$

Not available

41

Simplicity 2821962

CAPSCREW, 1/4NC x 1-3/4

$

$

Not available

41

Simplicity 920435

NUT, 1/4NC - Lock

$

$

Not available

41

Simplicity 2068083

KEY, 3/16 x 3/16 x 1-1/2

$

$

Not available

42

Simplicity 2068096

PIN ASSEMBLY

$

$

Not available

42

Simplicity 2068095

SPRING, Coupler

$

$

Not available

42

Simplicity 2068094

RING, Snap

$

$

Not available

43

Simplicity 2068093

HOUSING ASSEMBLY

$

$

Not available

43

Simplicity 2821965

CAPSCREW, 3/8NC x 3/4

$

$

Not available

43

Simplicity 2817421

NUT, 3/8NC - Lock

$

$

Not available

44

Simplicity 2068097

STRAP

$

$

Not available

44

Simplicity 918272

BOLT, 1/4NC x 5/8, Carriage

$

$

Not available

44

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

45

Simplicity 2068102

STOP

$

$

Not available

45

Simplicity 2821965

CAPSCREW, 3/8NC x 3/4

$

$

Not available

45

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

46

Simplicity 2068077

LATCH ASSEMBLY

$

$

Not available

46

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

46

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

46

Simplicity 2817421

NUT, 3/8NC - Lock

$

$

Not available

47

Simplicity 2068099

RIVET, 16 oz. Box

$

$

Not available
