418 (215-418-100) - Cub Cadet Rear-Tine Tiller (1985) Chain Case Assembly Parts Diagram

Rear-Tine Tiller

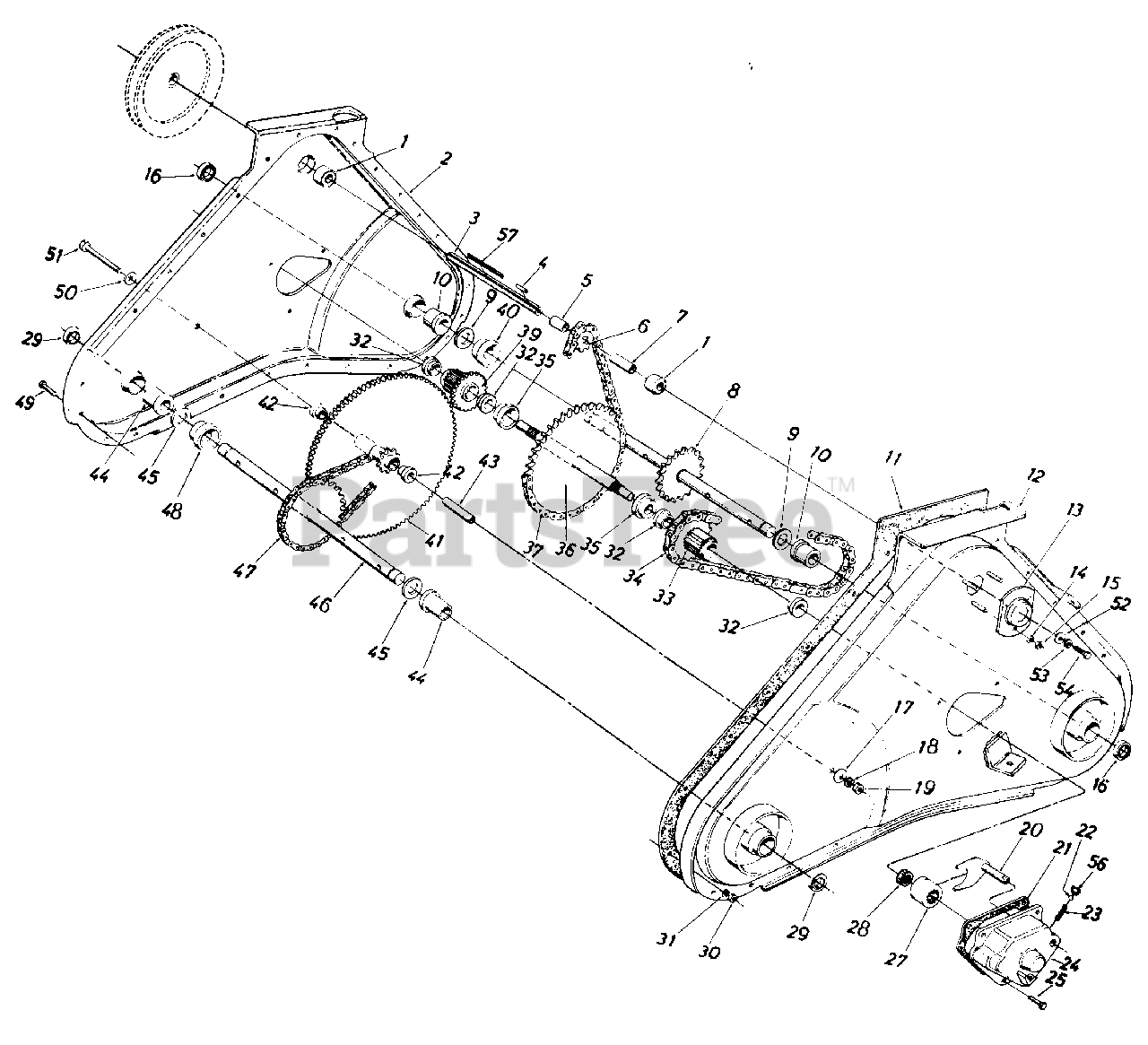

Chain Case Assembly Parts Diagram

  • Title

1

Cub Cadet 741-0155

BEARING-BALL
(Superseded to 941-0155)

$22.99

$

In Stock, Qty 20+

0

2

Cub Cadet 15384

CHAIN CASE ASSY-RH

$

$

Not available

3

Cub Cadet 738-0379

SHAFT-INPUT

$

$

Not available

4

Cub Cadet 714-0122

KEY-SQ 3/16 X .75

$3.49

$

In Stock, Qty 17

0

5

Cub Cadet 750-0379

SPACER

$

$

Not available

6

Cub Cadet 717-0210

SPROCKET-9T 5/8 SHAFT

$

$

Currently unavailable

7

Cub Cadet 750-0378

SPACER

$

$

Not available

8

Cub Cadet 14899

SHAFT ASSY-TINE

$

$

Not available

9

Cub Cadet 736-0350

WASHER-FL
(Superseded to 736-0246)

$

$

Not available

10

Cub Cadet 741-0381

BEARING-FLANGE

$

$

Not available

11

Cub Cadet 721-0163

GASKET
(Superseded to 921-0163)

$

$

Not available

12

Cub Cadet 15383

CHAIN CASE ASSY-LH

$

$

Currently unavailable

13

Cub Cadet 05034

HOUSING-BRG
(Superseded to 05034A)

$

$

Not available

14

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

15

Cub Cadet 712-0138

NUT-HEX 1/4-28

$6.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 721-0192

SEAL-OIL-1.25 SHAFT

$

$

Not available

17

Cub Cadet 736-0219

WASHER-BELL .3/8ID X 1.12OD X .030
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

18

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0214

NUT-HEX INS L 3/8 X 24

$5.99

$

In Stock, Qty 20+

0

20

Cub Cadet 04859

YOKE-SHIFT-LH

$

$

Not available

Cub Cadet 04858

YOKE-SHIFT-RH

Note: (Not Shown)

$

$

Not available

21

Cub Cadet 721-0162

GASKET

$

$

Not available

22

Cub Cadet 741-0862

BALL-DETENT

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 732-0863

SPRING-DETENT FOOTE #333-19
(Superseded to 932-0863)

$3.99

$

In Stock, Qty 10

0

24

Cub Cadet 719-0237

HOUSING-LH

$

$

Not available

Cub Cadet 719-0238

HOUSING-RH

Note: (Not Shown)

$

$

Not available

25

Cub Cadet 710-0601

SCREW-HEX WASH SF TAPP
(Superseded to 710-1260A)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet 717-0383

DOG

$

$

Not available

27

Cub Cadet 717-0383

DOG

$

$

Not available

28

Cub Cadet 717-0382

DOG-DRIVER

$

$

Currently unavailable

29

Cub Cadet 721-0102

SEAL-OIL-DOUBLE LIP-1 IN SHAFT
(Superseded to 921-0102)

$19.99

$

In Stock, only 1 left!

0

30

Cub Cadet 712-0138

NUT-HEX 1/4-28

$6.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

32

Cub Cadet 741-0229

BEARING-FLANGE

$

$

Not available

33

Cub Cadet 14746

SLEEVE ASSY-SPRKT BRG

$

$

Not available

34

Cub Cadet 713-0313

#50 CHAIN 5/8 PITCH X 50 LINKS E
(Superseded to 913-0313)

$

$

Not available

35

Cub Cadet 750-0352

SPACER

$

$

Not available

36

Cub Cadet 04823

SHAFT ASSY

$

$

Currently unavailable

37

Cub Cadet 713-0250

#420 CHAIN 1/2 PITCH X 58 LINKS E
(Superseded to 913-0250)

$

$

Not available

39

Cub Cadet 717-0512

SLEEVE ASSY-GEAR

$

$

Not available

40

Cub Cadet 750-0563

SPACER-STEPPED

$

$

Not available

41

Cub Cadet 717-0511

SPROCKET & GEAR ASSY

$

$

Not available

42

Cub Cadet 748-0184

BEARING-FLANGE .630 ID

$7.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 750-0374

SLEEVE

$

$

Not available

44

Cub Cadet 741-0189

BEARING-FLANGE

$

$

Currently unavailable

45

Cub Cadet 736-0259

WASHER-FL-1.00 X 1.625 X .090
(Superseded to 936-0259)

$

$

Not available

46

Cub Cadet 04835

SHAFT-AXLE

$

$

Currently unavailable

47

Cub Cadet 713-0312

#420 CHAIN 1/2 PITCH X 46 LINKS E
(Superseded to 913-0312)

$43.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 750-0314

SPACER

$

$

Not available

49

Cub Cadet 710-0195

SCREW-HEX 1/4-28 X .62
(Superseded to 910-0195)

$3.49

$

In Stock, only 1 left!

0

50

Cub Cadet 736-0219

WASHER-BELL .3/8ID X 1.12OD X .030
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

51

Cub Cadet 710-0629

SCREW-HEX 3/8-16 X 2.75

$

$

Not available

52

Cub Cadet 736-0159

WASHER-FL-.344 ID X .88 OD X .063

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 710-0627

SCREW-CAP LOCK 5/16-24 X .75

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 721-0165

PLUG

$

$

Currently unavailable

57

Cub Cadet 714-0139

KEY-SQ 3/16 X 3/16 X 2

$8.49

$

Usually ships in 3-6 days

0
